ASM(AUM)-620-XX (See the System Application)

ITEM

Connecter

Function

Description

ASM-620 (TX+RX)

DB-9-F Cable <=> RJ-45 <=> DB9-M

RS-422 Extender

RS-232 Extender W/TX-RX-CTS-RTS

ASM-620-A (TX+RC)

DB-9-F Cable <=> RJ-45 <=> DB9-M Cable

RS-422 Extender

RS-232 Extender W/TX-RX-CTS-RTS

ASM-620-B (T1+RX)

DB-9-F <=> RJ-45 <=> DB9-M

RS-422 Extender

RS-232 Extender W/TX-RX-CTS-RTS

ASM-620-C (T1+RC)

DB-9-F <=> RJ-45 <=> DB9-M Cable

RS-422 Extender

RS-232 Extender W/TX-RX-CTS-RTS

AUM-620 (TX)

USB=> RJ-45 Cable

RS-422 Extender

USB to RS-422 Converter W/TX-RX-CTS-RTS
ASM-620-BT TX <=> RJ-45 <=> RX RS-422 Booster For ASM-620 TX-RX 1,200m Booster
ASM-620-OEM DB-9 <=> RJ-45 <=> DB9 (For customer define)

RS-422 Extender

RS-232 Extender W/TX-RX-DSR-DTR
           ASM-620-T1

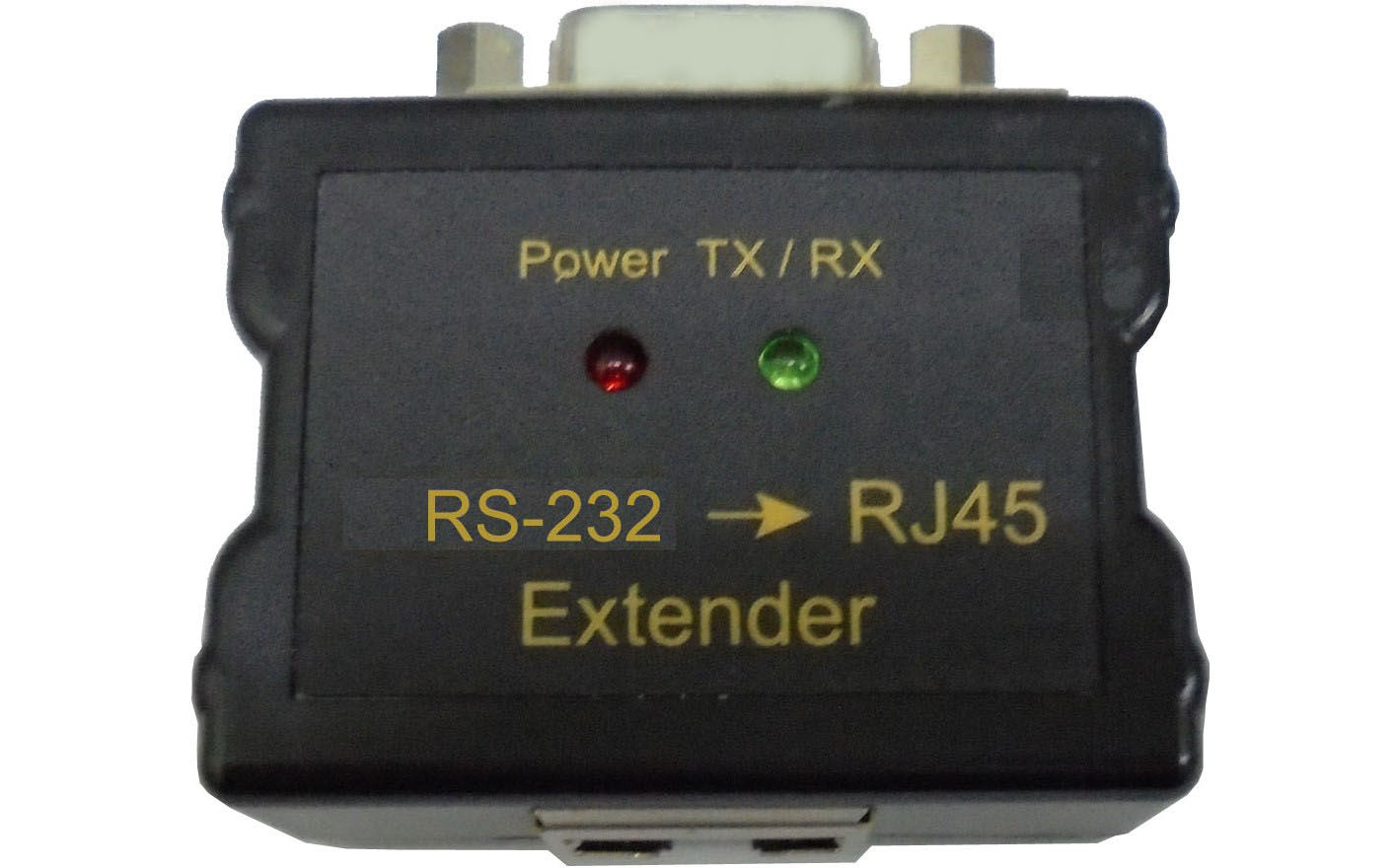

              ASM-620-TX                      AUM-620-TX

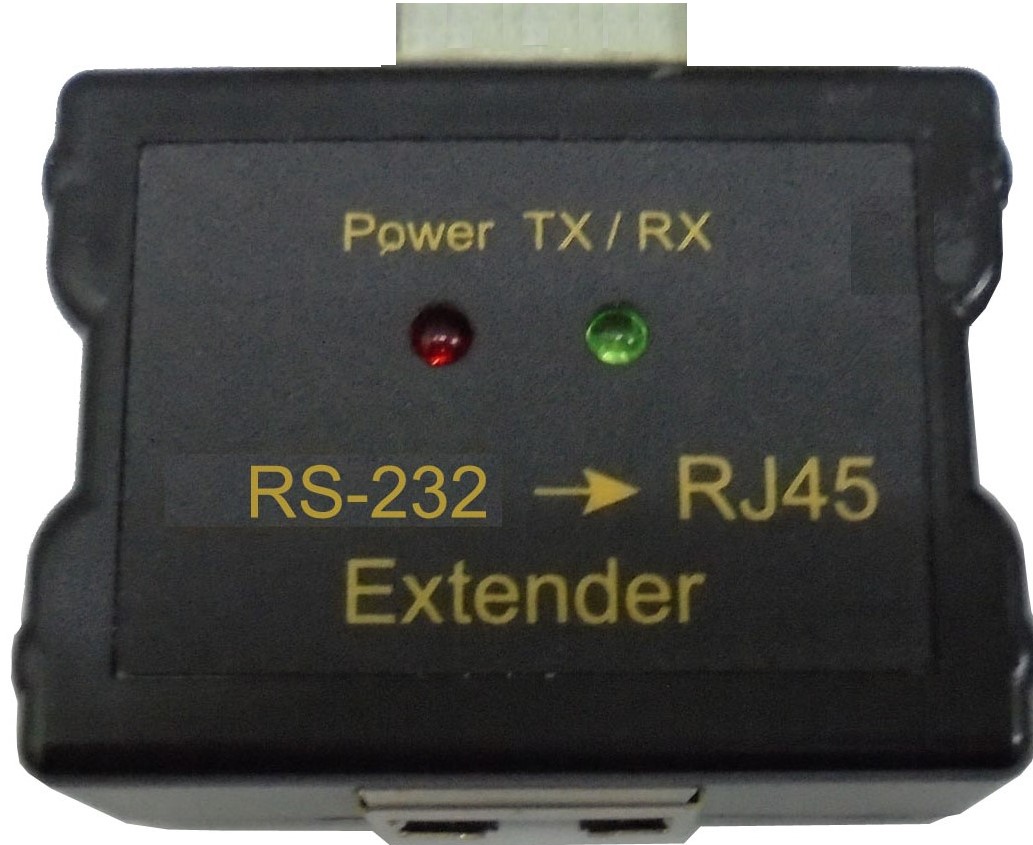

 		 ASM-620-BT

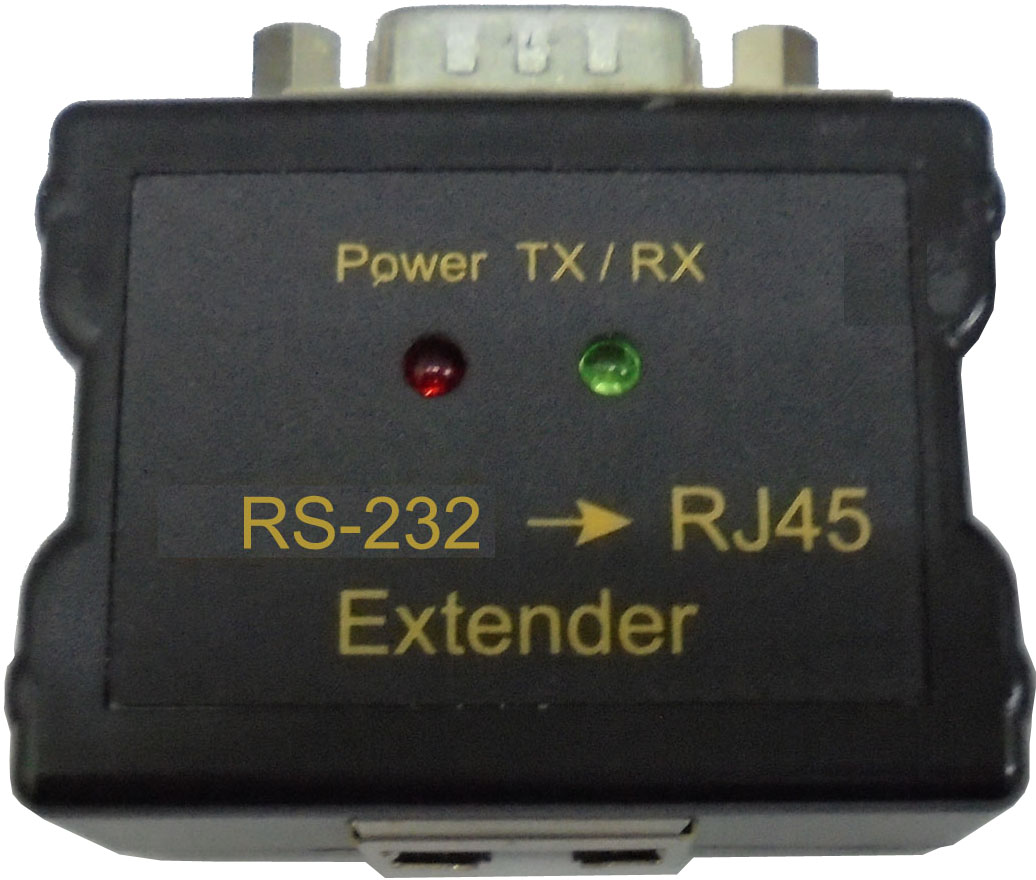

 		  ASM-620-RX
 		  ASM-620-RC
