ASM-232-RT (RS232 Remote Cable Tester)

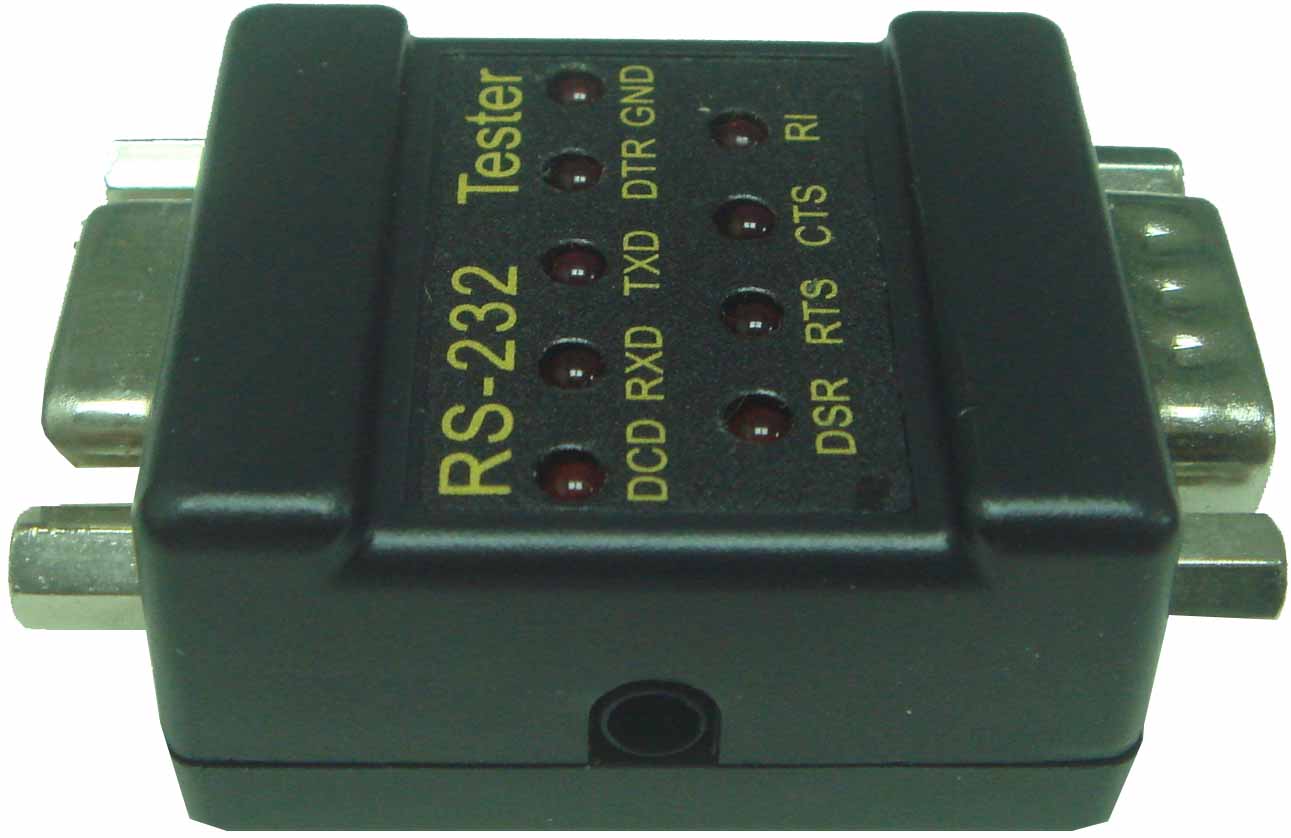

ASM-232-RT - TX ASM-232-RT - RX
ASM-232RT-TX Features & Specification
ASM-232RT-RX Features & Specification

  • ASM-232-RT-TX is RS-232 (DB9) data transfer for Tester of ASM-232-RT-RX. ASM-232-RT-TX can send the singles throw DB-9 Cable to ASM-232-RT-RX. It is standard DB9 male to DB9 female cable tester. ASM232-TX with 9 pcs Red LED to display the singles transfers.

  • Remark:

  •   ASM-232-RT-TX needs power to worked

  • Power option

  •              a: 5V USB power cable

  •             b: Dry battery power bank (use the size “AA” 3 pcs)

  •             c: AC to DC Adapter (5V, 0.5A) - option
  • No Power required
  • Standard RS-232 DTE & DCE Interface
  • With  DB-9 / F  &  DB-9 / M Connectors
  • Easy to install , Plug & Play
  • Stander  RS-232 Port
  • Fully compliant with RS-232 Spec.
  • With double colors LED appeared
  • Easy cheek data transfer & receiver
  • Compact size
  • Fit display of RS-232 working
  • RS-232 DTE connecter : DB9 - M
  • RS-232 DCE connecter : DB9 - F
  • Data rate : Up to 1000 K bps
  • With GND & Shell Test's LED
  • Single / TTL out 1 - LED appear Green (V-)
  • Single / TTL out 0 - LED appear Red (V+)
  • Housing : Plastic,
  • Weight : 55g
  • Dimensions (L*W*H) : 45 * 35 * 21 ( mm )    body

RS-232 Signal  Name

DB 9 Female

DB 9 Male

LED

FG (Frame Ground)*

Metal case*

Metal case*



CD (Carrier Detect)

1

1

DCD

RD (Receive Data)

2

2

RXD

TD (Transmit Data)

3

3

TXD

DTR (Data Terminal Ready)

4

4

DTR

SG (Signal Ground)

5

5

GND

DSR (Data Set Ready)

6

6

DSR

RTS (Request To Send)

7

7

RTS

CTS (Clear To Send)

8

8

CTS

RI (Ring Indicator)

9

9

RI

Test step : DCD=>RXD=>TXD=>DTR=>GND>DSR=>RTS=>CTS=>RI
