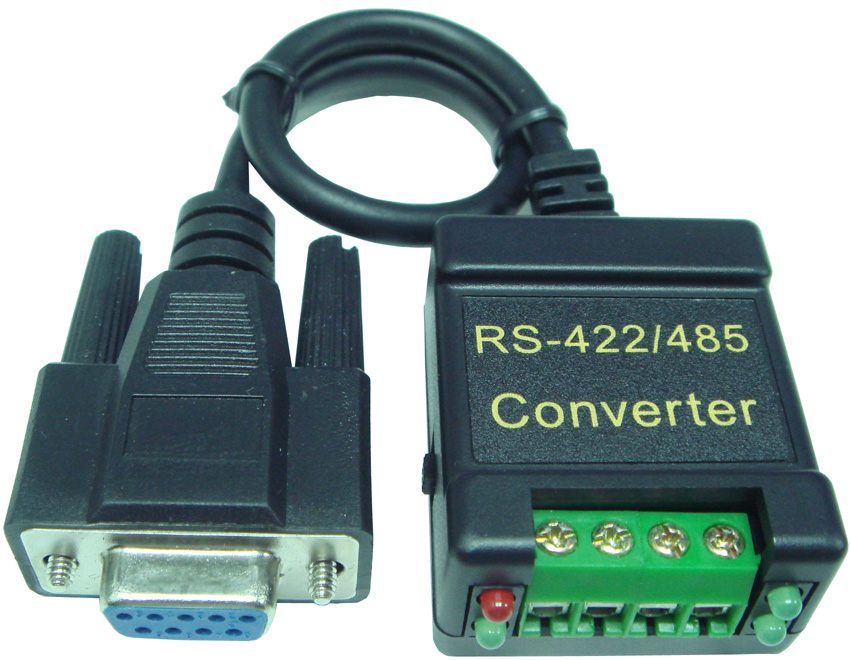

ASM-485 (
RS-232 to RS-422 / 485
Converter ) |
 |
 |
 |
 |
|
ASM-485 RS-422 Mode Data transfer
|
ASM-485 RS-485 Mode Data transfer
|
 |
 |
| Features |
Specification |
- Power required : DC 5V
USB Power Cable
- Standard RS-232 TO RS-422/485
Adapter
- Easy to install , Plug & Play
- Stander RS-422 / 485 Port support
- Fully compliant with RS-232 Spec.
- RS-422 / 485 support 256 Devices
Allowed on Bus.
- With 15kV ESD protection

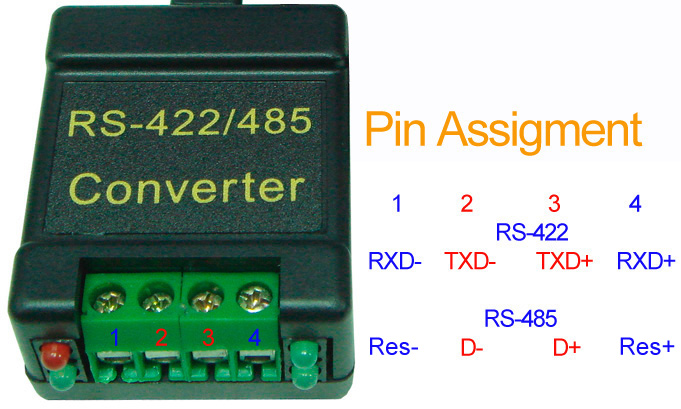

- RS-422/485 -- 4
pin Terminal Connector
- Data rate : Up to 250 K bps
- RS-485 Data transfer by TX
control

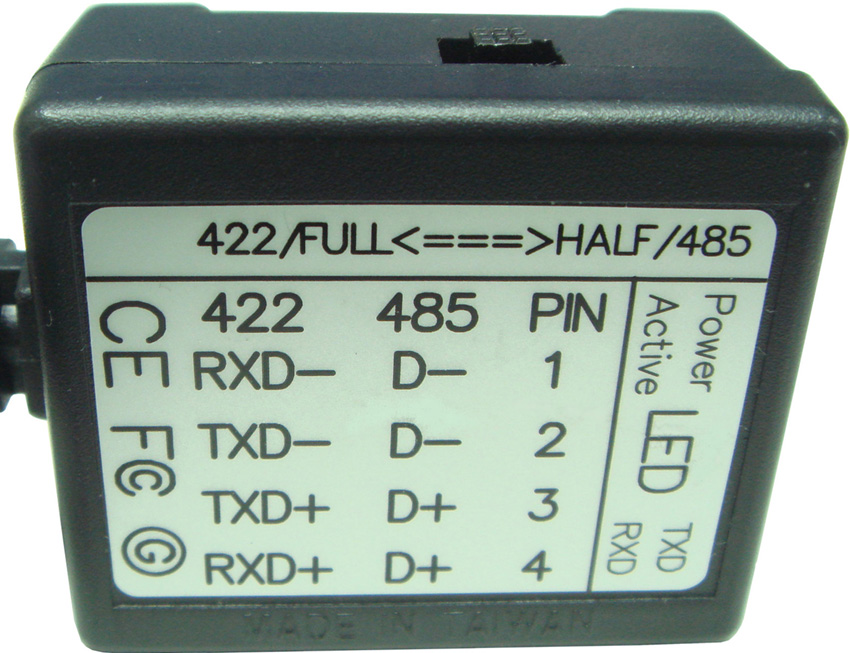

- With 422/485 selector switch
- RS-422/485 -- 4
pin Terminal
Connector
- With RS-422 or RS- 485 driver
-
With : Power /Link / TX / RX LED indicate
- Dimensions (L*W*H) : 45 * 35 * 21 (
mm ) body
- Length : 18cm ( RS-232 cable )
-
Housing : Plastic / Weight : 105g
|

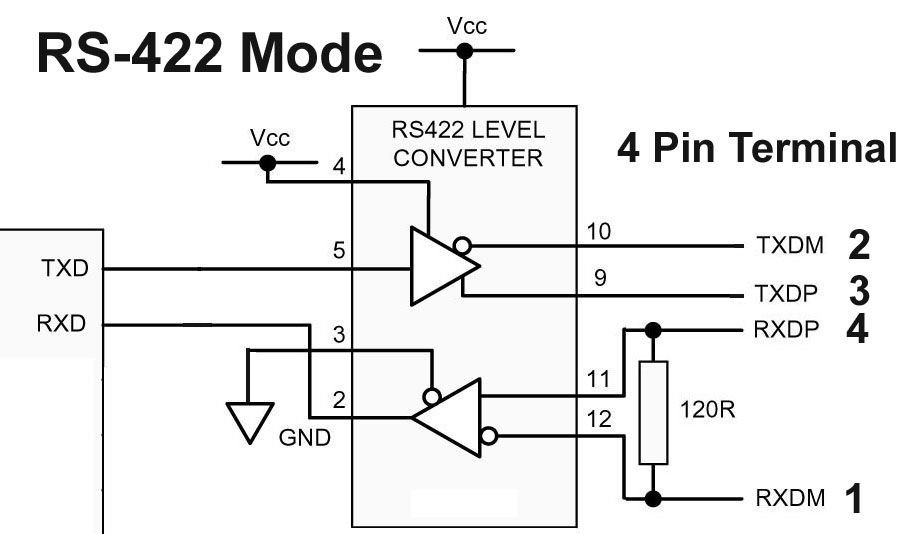

RS-422 Mode RX (1-4 PIN) with 120 Ohm Terminate Register |
|

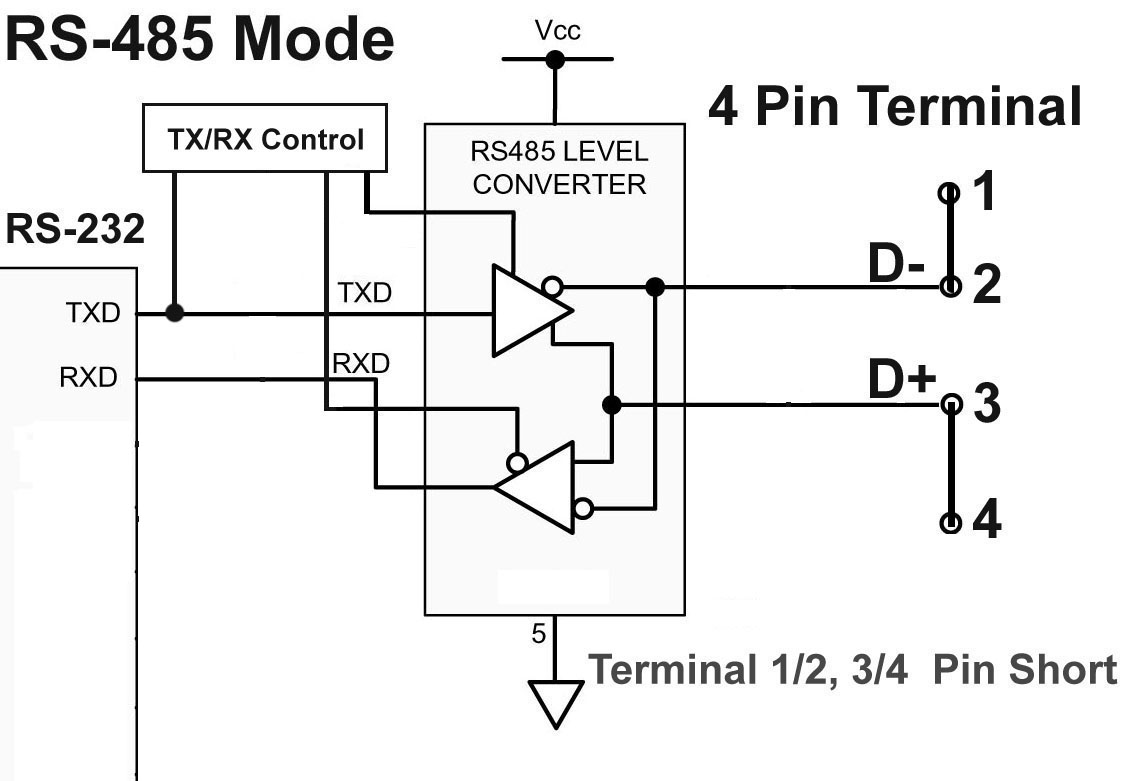

ASM-485 under RS-485 (half) Mode control |
|
Data transfer control |
TX Single |
|
control |
Hardware |
|
Data ECHO (Monitor) |
NO |
|
Link LED Display |
Data Transfer |
