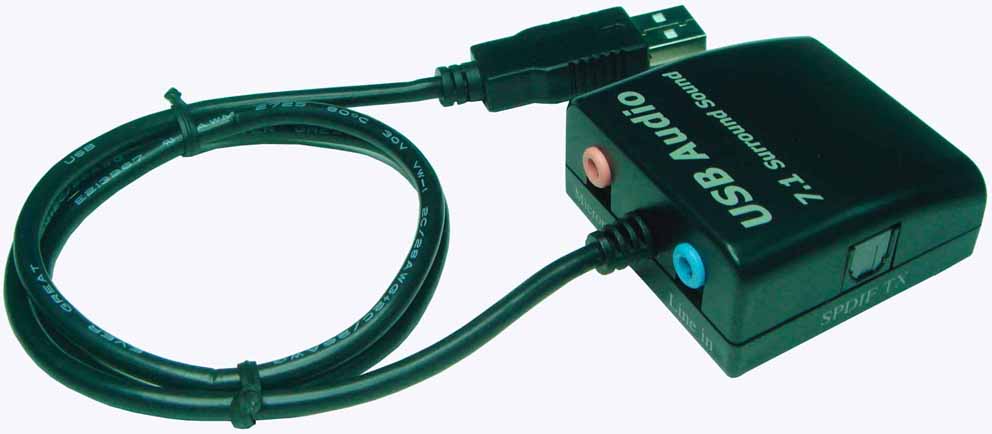

AUA-100-A is highly integrated single
chip USB audio solution. All essential analog modules are embedded in
AUA100A, including 8CH DAC and earphone buffer, 2CH ADC, microphone
gain, PLL, regulator, and USB transceiver. It is very suitable for high
end USB external audio box, USB multi-channel headphone or USB audio
interface multi-channel speaker set application. yet, AUA100A support
stereo MIC, phone jack sense, S/PDIF I/O and 48/44.1 Khz sampling rate.
Moreover, unique patent driver can support world first SPEAKER SHIFTER,
EAX2.0, Karaoke
- SPDIF of AUA100A with
optical interface (Input/output).
- AUA-100-A can connect
SPF-100-RX distance 1000m (Max) use optical
cable.
- Plug & play easy use.
- No install C-Media value added
patent software driver only support MIC / Line / Earphone (R+L)
- Install C-Media value added patent
software driver support SPDIF (in/out) & 8 channel DAC.

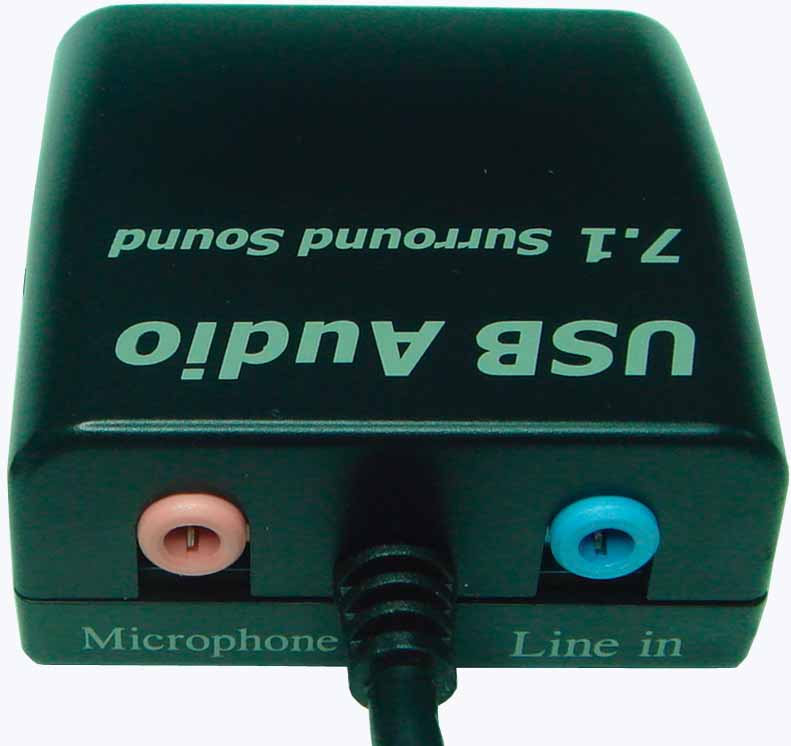

- I/O:
- 1. USB/A cable to PC
- 2. Pink 3.5 Audio - MIC
- 3. Blue 3.5 Audio - Line in
- 4. Green 3.5 Audio - Earphone L+R or
Line out front L+R CH
- 5. Orange 3.5 Audio- Center
(R) + Sub-woofer (L)
- 6. Black 3.5 Audio- Side
Surround Ls+Rs
- 7. Grey 3.5 Audio- Rear
Surround Lb+Rb
-
Weight :
56g
-
Dimensions
(L*W*H) : 51*53*25
( mm )
- USB Cable length : 65cm
|
- SB spec. 2.0 full speed compliant
- USB audio device class spec. 1.0
and USB HID class spec. 1.1 compliant
- IEC60958 spec. compliant (consumer
format S/PDIF input and output with loop-back support)
- SCMS (Serial Copy Management
System) compliant
- Digital audio streaming via S/PDIF
out
- USB remote wake-up support
- 8 channel DAC output with 16 bit
resolution
- Volume control and mute function
- Earphone buffer
- 2X interpolator for digital
playback data to improve quality
- 2 channel ADC input with 16 bit
resolution
- Additional headphone output with
selectable source and phone jack sense
- Stereo MIC support with 33dB
maximum capability
- Recording source select from S/PDIF,
MIC, Line-in and summation of MIC, Line-in and front channel
- MIC, Line-in monitor from front
channel (all channels optional) with volume control and mute function
- Playback with soft-mute function
- Support 48 / 44.1 KHz sampling rate
for both playback and recording
- MCU support with two-wire serial
interface
- Embedded USB transceiver and power
on reset circuit
- Microsoft Vista Premium Level
Compliant
- With C-Media value added patent
software driver
|
