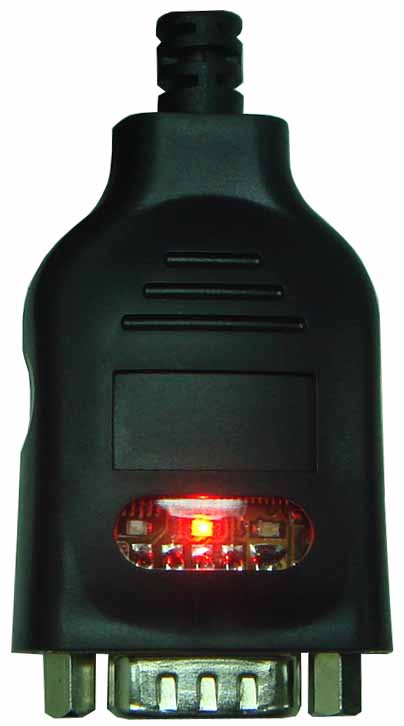

AUM-100 (1.8M USB2.0 to RS-232 Cable)                                                          AUM100-C (15CM Type-C to RS-232 Cable)

Features Specification
  • AUM-100 1.8M USB2.0 to RS-232 Cable
  • AUM-100-C 15CM Type-C to RS-232 Cable
  • Bus powered , FTDI Chipset
  • FT232X – Single USB to UART Converter ICs
  • Standard USB TO RS-232 Adapter
  • Easy to install , Plug & Play
  • PDA RS-232 Port support
  • 56K Modem support
  • Serial Mouse support
  • Serial PC camera support
  • Fully compliant with USB Spec.
  •  For Win-98/se/me , Win-2000
  • Win-NT up 5.0 Ver,Win-XP,Win7/8/10,Win-CE
  • MAC OS. 8.6 up ,LINUX
  • RS-232 -- DB9 / M
  • Data rate : Over 250kbps
  • ESD Protection for RS-232 I/O' +-15KV
  • RS-232 for DTE Mode
  • With : Power LED / Red  indicate
  •            TX  LED / Green     indicate
  •            RX  LED / Orange  indicate
  • Weight : 105g
  • Dimensions (L*W*H) : 56 * 35 * 17 ( mm )
DB-9 / DB25  Pin assignment

Pin1 / Pin8 : DCD  <== IN

Pin2 / Pin3 : RXD   <== IN

Pin3 / Pin2 : TXD    ==>  OUT

Pin4 / Pin20 : DTR    ==>  OUT

Pin5 / Pin7 : GND

Pin6 / Pin6 : DSR    <== IN

Pin7 / Pin4 : RTS     ==>  OUT

Pin8 / Pin5 : CTS     <== IN

Pin9 / Pin22 : RI        <== IN
