AUM-328522 - AUM-328522-C ( USB to RS-232 / 422 / 485 Converter )
AUM-328522 - 422-X Mode Data transfer   AUM-328522-X - 485 Mode Data transfer

Features  Specification
  • us powered - FTDI Chipset
  • Standard USB TO RS-232/422/485 Adapter
  • With 4 pin Terminal Connector
  • Easy to install , Plug & Play
  • Stander  RS-232 / 422 / 485 Port support
  • Fully compliant with USB Spec.
  • With 422/485 selector switch
  • With RS-232 & RS-422 / 485 selector Jump pin
  • Support MAC OS. 8.6 up ,Linux
  • Support Windows 98se/2000/XP/Vista/ 7 / 8 / 10
  • USB Cable ----- USB A - 1m cable
  • USB Cable ----- USB TYPE-C - 15 Cm cable
  • RS-422/485 -- 4 pin Terminal Connector
  • RS-232 -- DB9/M -  DTE mode
  • Data rate : Up to 200 K bps
  • With rs-232  & RS-422 or RS- 485 driver
  • With : Power /Link / TX / RX  LED indicate
  • Housing : Plastic
  • Weight : 105g
  • Dimensions (L*W*H) : 45 * 35 * 21 ( mm )    body
  • Length : 1m ( USB cable  ) / 15Cm TYPE-C cable
  • Connector :
  • USB Cable ----- USB A - 1m cable
  • USB Cable ----- USB TYPE-C - 15 Cm cable
  • RS-422/485 -- 4 pin Terminal Connector
  • Data rate : Up to 200 K bps
  • With RS-422 or RS- 485 driver
  • With : Power /Link / TX / RX  LED indicate

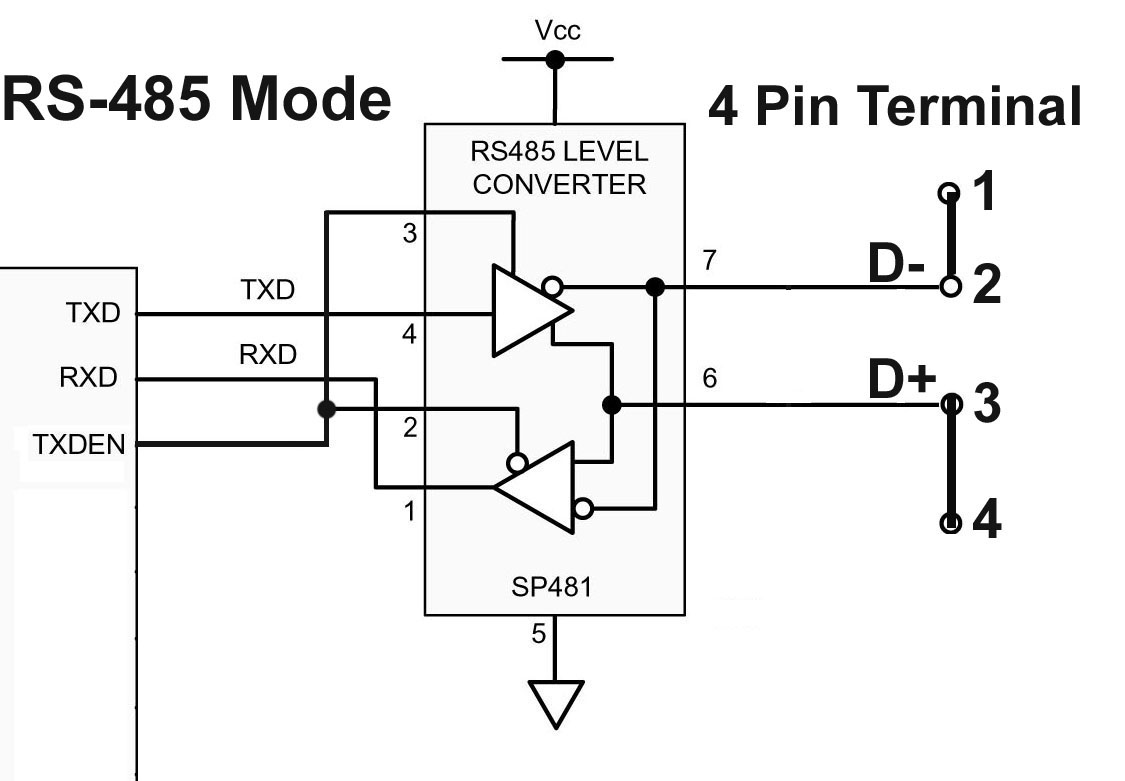

  • AUM328522 RS-485 Data transfer by Hardware control
  • AUM-328522-X under RS-485 (half) Mode control

    TX Data Transfer Software by RTS Hardware-TX Enable
    RX Data Receiver With Data Mirror NO Data Mirror
    LED Display Link LED Display Data Transfer
