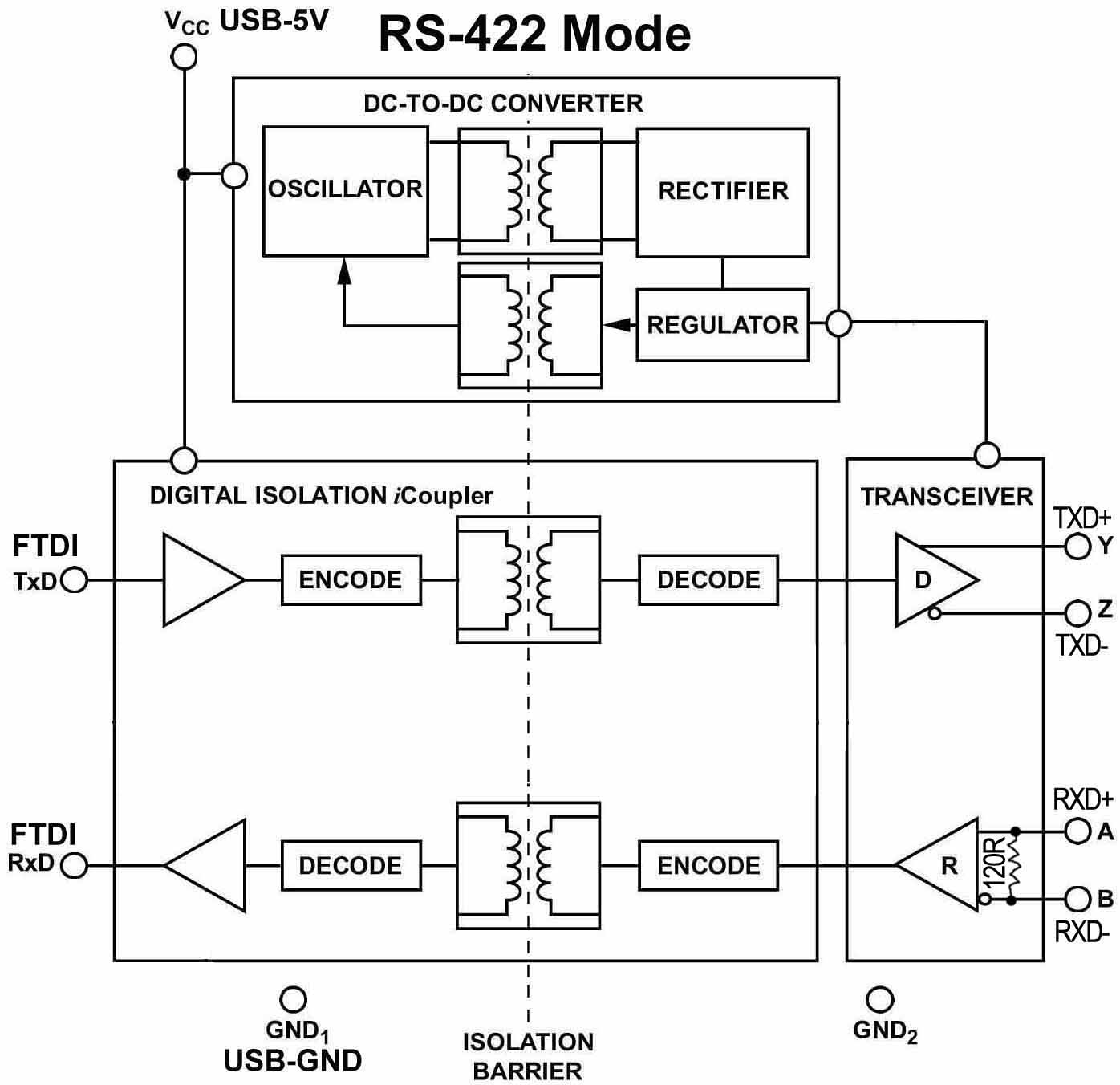

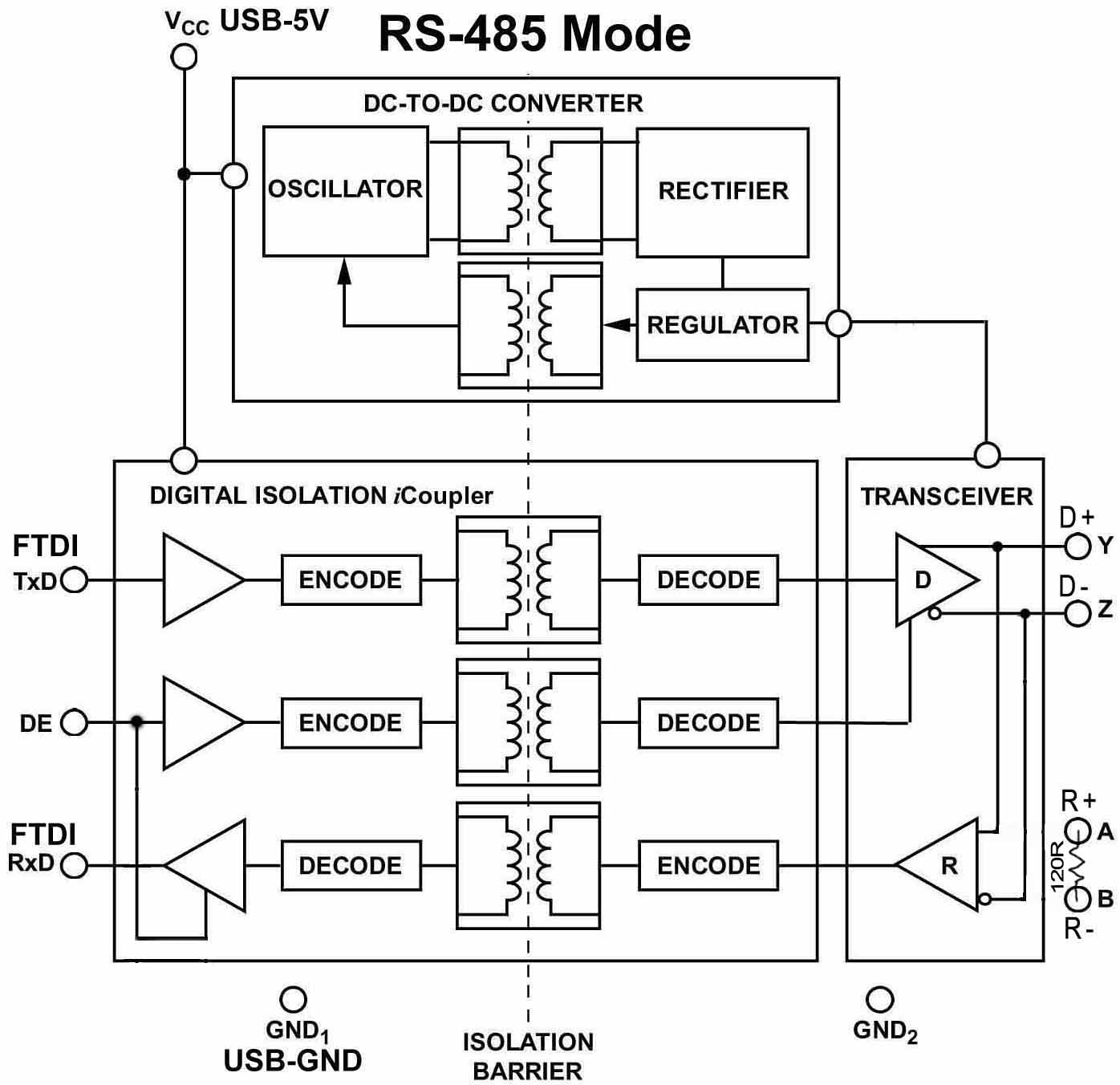

- USB to RS-422/485 Converter with
Isolated dc-to-dc converter
- Meets EIA/TIA-232E specification
- ESD protection on Tout pins (+-8KV:
contact discharge +15KV: air gap discharge)
- Bus powered ,
FTDI
Chip

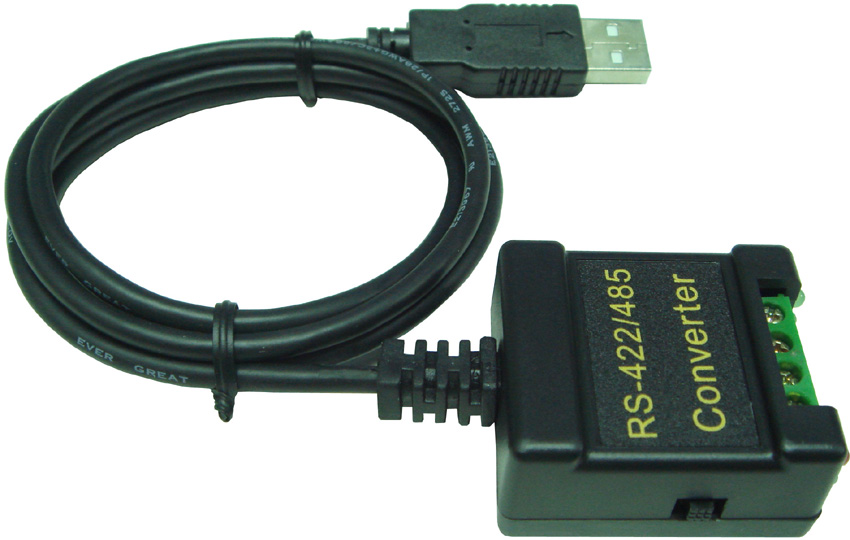

- Standard USB TO RS-422/485 Adapter
- Easy to install , Plug & Play
- Fully compliant with USB Spec.
- For Win-98/se/me , Win-2000
- Win-NT 5.0 ,Win-XP ,Win-7 / 8 / 10 ,Win-CE
- MAC OS. 8.6 up ,LINUX
- RS-422/485 -- DB9 / M
- Data rate : 115200 bps
- With 4 pin
Terminal Connector
- With 422/485 selector switch
- With : Power LED indicate
- With : RS-422/485 LED indicate
- TX LED indicate
- RX LED indicate
|
-
|
USB |
4 PIN Terminal |
|
GND1 |
GND2 |
|
1-VCC |
1 - RXD- |
|
2-DM |
2 - TXD- |
|
3-DP |
3 - TXD+ |
|
4-Host SG |
4 - RXD+ |
- Weight : 105g
- Dimensions (L*W*H) : 56 * 35 * 17 (
mm )
- Length : 100 cm ( USB cable 100cm )
|
