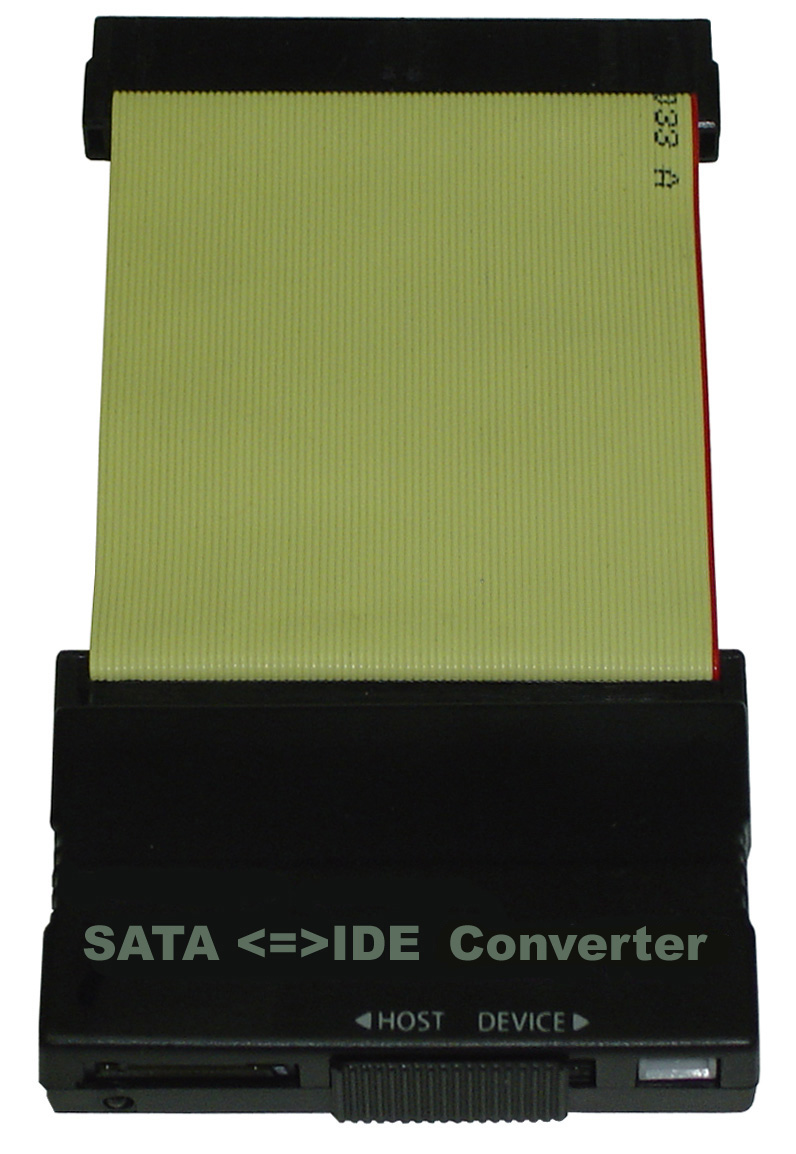

CSP-300-A (Serial ATA 1.5 Gbps<==>IDE  bridge converter)
Features Specification
  • CSP-300-A is a bi-direction converter for serial and parallel ATA translation. It includes the Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller. The Serial ATA physical, link, and transport layers are compliant to Serial ATA 1.0 CSP300A converter supports a 1.5GHz data rate. The application layer supports both the ATA register command set and PACKET command set, which could drive both Hard Disk Drive and ATAPI Optical Storage such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc. The Serial ATA and the Parallel ATA application layer support both host and device operation and can be configured through a single pin.
  • Dimension :  56 * 40 * 12.2    (mm)
  • Weight : 23g
  • With LED Indicated power
  • Easy install & free driver
  • Chipset : Marvell 8040B
  • Serial ATA 1.0 Specification compliant
  • Automatic Serial ATA 1.5 Gbps speed negotiation
  • ATA / ATAPI PIO mode 0 to 4
  • ATA / ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s.
  • ATA / ATAPI LBA48 addressing mode associated with 2-byte sector count
  • Support Serial ATA hot-plug
  • Ultra low power consumption
  • Work for both AC and DC couple between the transmitter and the receiver
  • Provide specified OOB signal detection and transmission
  • Support Spread Spectrum Clocking to reduce EMI
  • Support Partial/Slumber power management
  • Provide adjustable TX signal amplitude and pre-emphasis level
  • Slave support
