DTH-20CT ( DVI-D - HDMI Cable Tester )

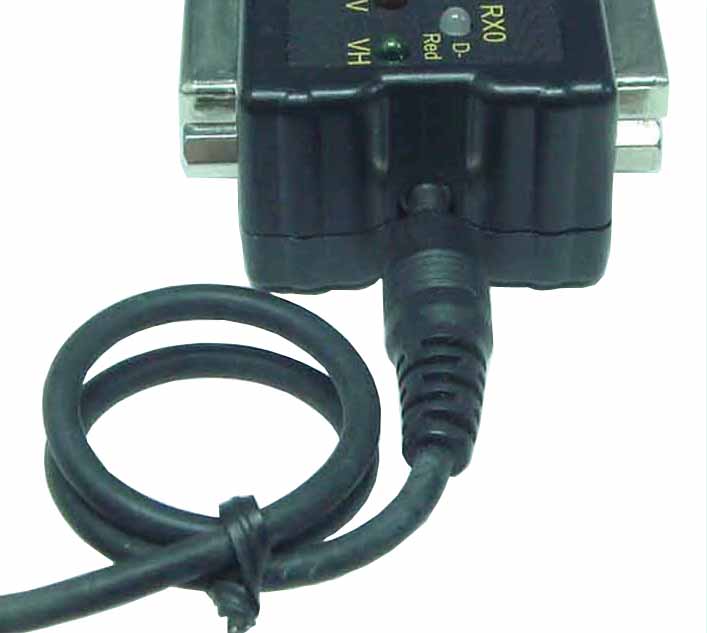

Power supply : USB Power cable / Battery / AC Adapter (option)
Features & Specification Test - Table
  • DC 5V Power required
  • With DVI-F & HDMI-F Connectors
  • LED display test result
  • Test cable Open & Short
  • Open  /  Short : LED NO Light
  • Easy to test
  • With 3 colors LED appeared
  • Compact size
  • Housing : Plastic,
  • Weight : 55g
  • Dimensions (L*W*H) : 47 * 43 * 24 ( mm )
  • With 5V / 3.5mm power jack (Inner + / Outer -)
  • With 5V USB power cable
  • Power jack :Center pin / 1.3mm

  • Pin Assignment :

  • DVI-D-F HDMI-F Signal Text LED-Color
    Pin 1 Pin 3 D2- RX2 Red *
    Pin 2 Pin 1 D2+ RX2 Green *
    Pin 6 Pin 15 DDC-C CK Green
    Pin 7 Pin 16 DDC-D DA Green
    Pin 9 Pin 6 D1- RX1 Red *
    Pin 10 Pin 4 D1+ RX1 Green *
    Pin 14 Pin 18 +5V 5V Red
    Pin 8 Pin 14 HEAC+ HPD Green *
    Pin 16 Pin 19 HPD/HEAC- HPD Red *
    Pin 17 Pin 9 D0- RX0 Red *
    Pin 18 Pin 7 D0+ RX0 Green *
    Pin 23 Pin 10 CLK+ RXC Green *
    Pin 24 Pin 12 CLK- RXC Red *
    CableShield           Shield VH-CEC Green
    Pin 3/11/19/22 Pin 2/5/8/11 GND1 D0/D1/D2/CLK Shield
    Pin 15 Pin 17 GND2 GND
    DVI - Pin 4/5/12/13/20/21/C1~C5 NC

  • * Double color LED
