- No Power required DVI-D to HDMI Simple Tester
- Test DVI-D or HDMI Interface
- With extend function - DVI-D-F <=>HDMI-F Changer
- With DVI-I-F - HDMI-F Connectors
- Support DVI-D or HDMI On line Simple test
- Easy to install , Plug & Play

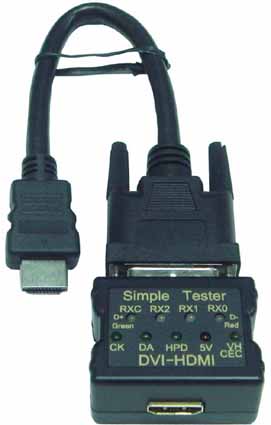

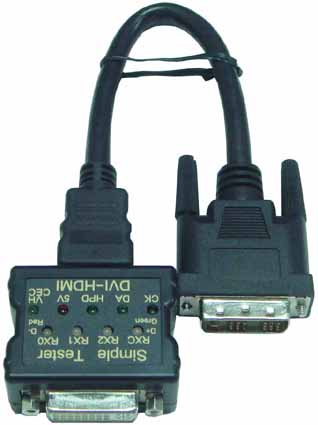

- Connect DVI-M<=>HDMI-M cable easy test DVI or HDMI Singal

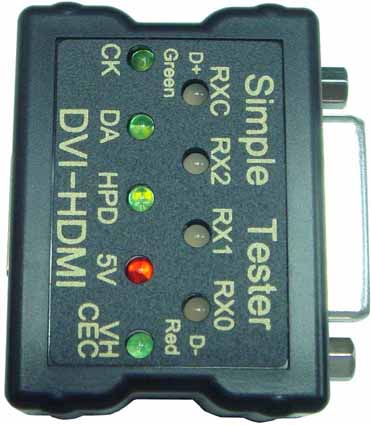

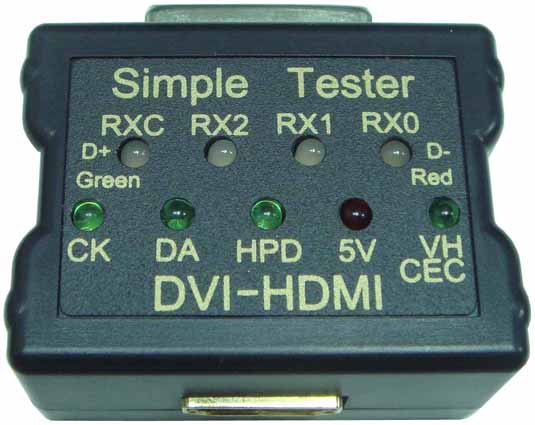

- With 3 colors LED appeared
- Easy cheek data transfer & receiver
- Compact size
- Support plug & play
- On line test : over 1600*1200
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 47 * 43 * 24 ( mm )
-
Pin Assignment :
-
DVI-D-F HDMI-F Signal Text LED-Color Pin 1 Pin 3 D2- RX2 Red * Pin 2 Pin 1 D2+ RX2 Green * Pin 6 Pin 15 DDC-C CK Green Pin 7 Pin 16 DDC-D DA Green NC Pin 13 CEC VH-CEC Green Pin 9 Pin 6 D1- RX1 Red * Pin 10 Pin 4 D1+ RX1 Green * Pin 14 Pin 18 +5V 5V Red Pin 16 Pin 19 HPD HPD Green Pin 17 Pin 9 D0- RX0 Red * Pin 18 Pin 7 D0+ RX0 Green * Pin 23 Pin 10 CLK+ RXC Green * Pin 24 Pin 12 CLK- RXC Red * Pin 4/5/8/12/13/20/ 21/C1/C2/C3/C4
Pin 14 NC Pin 3/11/15/19/22/C5 Pin 2/5/8/11/17 GND -
* Double color LED
