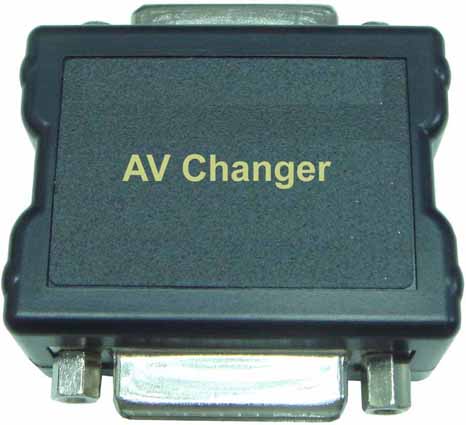

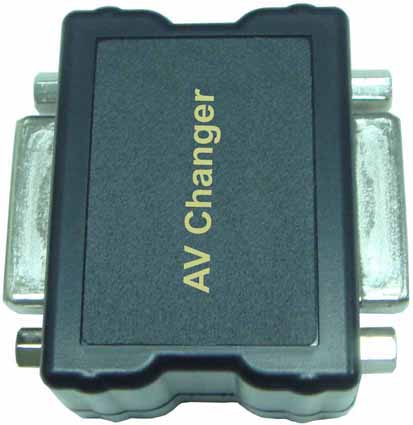

DVI-100 ( DVI Line extender Box )
Features Specification
Support:

DVI-D (digital only) / DVI-A (analog only) / DVI-I (integrated - digital and analog)

  • HDTV (1,920 × 1,080) @ 60 Hz with CVT-RB blanking (139 MHz)
  • UXGA (1,600 × 1,200) @ 60 Hz with GTF blanking (161 MHz)
  • WUXGA (1,920 × 1,200) @ 60 Hz with CVT-RB blanking (154 MHz)
  • SXGA (1,280 × 1,024) @ 85 Hz with GTF blanking (159 MHz)
  • WXGA+ (1440 × 900) @ 60 Hz (107 MHz)
  • WQUXGA (3,840 × 2,400) @ 17 Hz (164 MHz)
  • QXGA (2,048 × 1,536) @ 75 Hz with GTF blanking (2 × 170 MHz)
  • HDTV (1,920 × 1,080) @ 85 Hz with GTF blanking (2 × 126 MHz)
  • WUXGA (1,920 × 1,200) @ 120 Hz with GTF (2 x 154 MHz)
  • WQXGA (2,560 × 1,600) @ 60 Hz with GTF blanking (2 × 174 MHz) (30-inch (762 mm) Apple, Dell, Gateway, HP, NEC, Quinux, and Samsung LCDs)
  • WQXGA (2,560 × 1,600) @ 60 Hz with CVT-RB blanking (2 × 135 MHz) (30-inch (762 mm) Apple, Dell, Gateway, HP, NEC, Quinux, and Samsung LCDs)
  • WQUXGA (3,840 × 2,400) @ 33 Hz with GTF blanking (2 × 159 MHz)
  • Minimum clock frequency: 25.175 MHz
  • Maximum clock by cable quality (up to 330 MHz, 7.92 Gbit/s)
  • Pixels per clock cycle: 1 (single link) or 2 (dual link)
  • Bits per pixel: 24 (single and dual link) or 48 (dual link only)
  • RGB bandwidth: 400 MHz at −3 dB
  • Dimension : 47 * 45 * 21 mm  Weight :  31 g

  • Operating temperature : -0 TO 70 C

  •  Extend distances :15 M (Using DVI Cable)

Pin out
Pin 1 TMDS data 2−
Pin 2 TMDS data 2+
Pin 3 TMDS data 2/4 shield
Pin 4 TMDS data 4−
Pin 5 TMDS data 4+
Pin 6 DDC clock
Pin 7 DDC data
Pin 8 Analog vertical sync
Pin 9 TMDS data 1−
Pin 10 TMDS data 1+
Pin 11 TMDS data 1/3 shield
Pin 12 TMDS data 3-
Pin 13 TMDS data 3+
Pin 14 +5 V
Pin 15 Ground
Pin 16 Hot plug detect
Pin 17 TMDS data 0−
Pin 18 TMDS data 0+
Pin 19 TMDS data 0/5 shield
Pin 20 TMDS data 5−
Pin 21 TMDS data 5+
Pin 22 TMDS clock shield
Pin 23 TMDS clock+
Pin 24 TMDS clock−
C1 Analog red
C2 Analog green
C3 Analog blue
C4 Analog horizontal sync
C5 Analog ground
