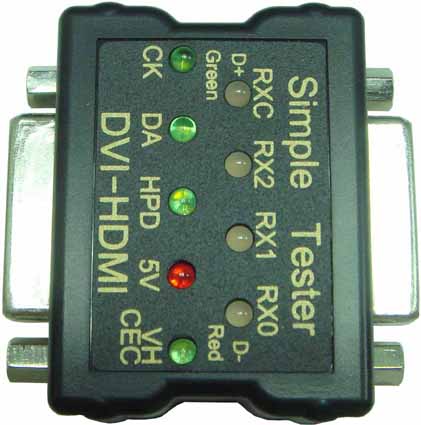

- No Power required DVI-D (digital only)
- Test DVI-D (digital only) Interface
- With extend function - DVI-D-F <=>DVI-D-F Changer
- With DVI-I-F - DVI-I-F Connectors
- Support DVI-D On line Simple test
- Easy to install , Plug & Play
- With 3 colors LED appeared
- Easy cheek data transfer & receiver
- Compact size
- Support plug & play
- On line test : over 1600*1200
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 47 * 45 * 24 ( mm )
| Signal | DVI-D-F<=>DVI-D-F | Text | LED-Color |
| D2- | Pin 1<=>Pin 1 | RX2 | Red * |
| D2+ | Pin 2<=>Pin 2 | RX2 | Green * |
| DDC-C | Pin 6<=>Pin 6 | CK | Green |
| DDC-D | Pin 7<=>Pin 7 | DA | Green |
| D1- | Pin 9<=>Pin 9 | RX1 | Red * |
| D1+ | Pin 10<=>Pin 10 | RX1 | Green * |
| +5V | Pin 14<=>Pin 14 | 5V | Red |
| HPD | Pin 16<=>Pin 16 | HPD | Green |
| D0- | Pin 17<=>Pin 17 | RX0 | Red * |
| D0+ | Pin 18<=>Pin 18 | RX0 | Green * |
| CLK+ | Pin 23<=>Pin 23 | RXC | Green * |
| CLK- | Pin 24<=>Pin 24 | RXC | Red * |
| Shield | Shield<=>Shield | VH-CEC | Green |
| NC | PIN4/5/8/12/13/20/21/C1/C2/C3/C4 | ||
| GND | Pin 3/11/15/19/22/C5 | ||
