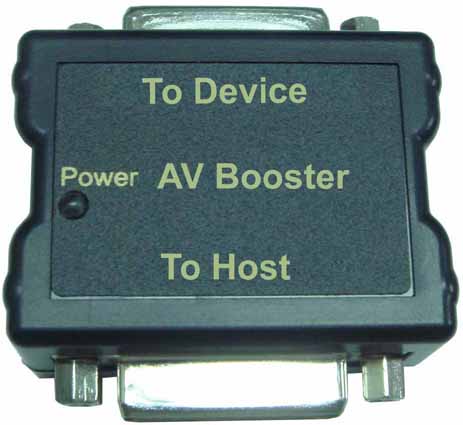

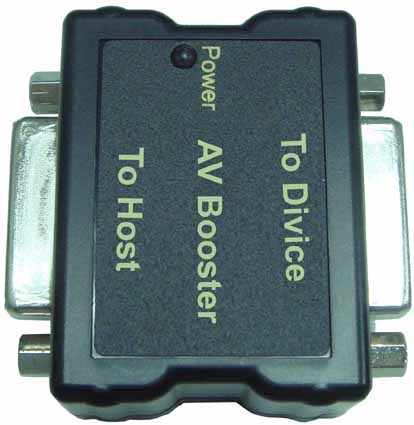

- The DVI-300 is a Buffer for the Digital Visual Interface (DVI) . The DVI-300 provides the desired system level ESD protection, such as the ICE61000-4-2 (Level 4) ESD.
- Support DVI-D (digital only)
- DVI Type Female to Female Converter
- With Digital Visual Interface (DVI) Driver.
- Support : DVI Spe.
- Support : PCM , DVD-Audio , Super Audio CD, Dolby True HD, DTS Master Audio.
- Support : 480,576,720,or 1080p (progressive or interlaced video).
- With LED (Blue color) Indicated working

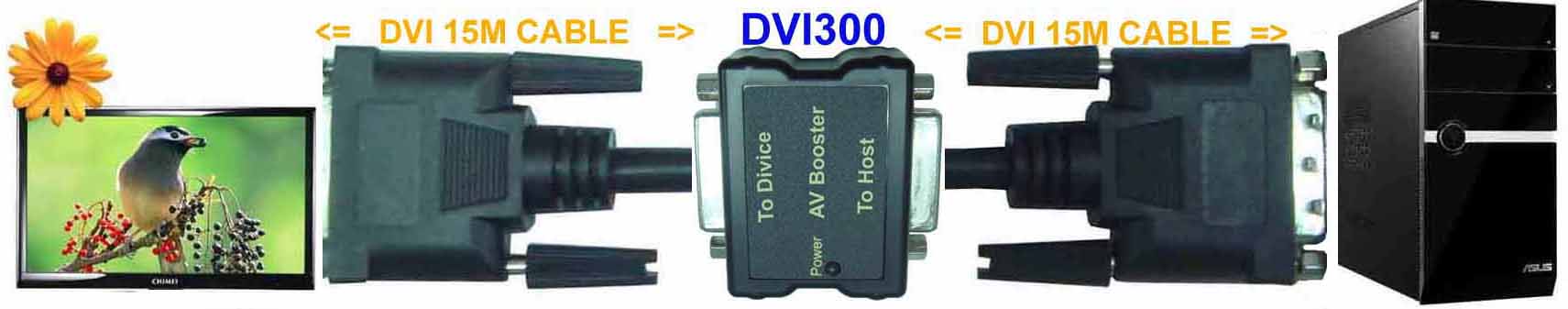

- Cable extended Length : 15 meters
- Dimension : 24 * 28 * 11.2 mm
| Pin out | |
|---|---|
| Pin 1 | TMDS data 2− |
| Pin 2 | TMDS data 2+ |
| Pin 3 | TMDS data 2/4 shield |
| Pin 4 | NC |
| Pin 5 | NC |
| Pin 6 | DDC clock |
| Pin 7 | DDC data |
| Pin 8 | NC |
| Pin 9 | TMDS data 1− |
| Pin 10 | TMDS data 1+ |
| Pin 11 | TMDS data 1/3 shield |
| Pin 12 | NC |
| Pin 13 | NC |
| Pin 14 | +5 V |
| Pin 15 | Pin 15 |
| Pin 16 | Hot plug detect |
| Pin 17 | TMDS data 0− |
| Pin 18 | TMDS data 0+ |
| Pin 19 | TMDS data 0/5 shield |
| Pin 20 | NC |
| Pin 21 | NC |
| Pin 22 | TMDS clock shield |
| Pin 23 | TMDS clock+ |
| Pin 24 | TMDS clock− |
| C1 | NC |
| C2 | NC |
| C3 | NC |
| C4 | NC |
| C5 | Analog ground |
