Power supply : 1. USB Power cable 2. Battery-3*3A 3. AC Adapter (option)
- DC 5V Power required

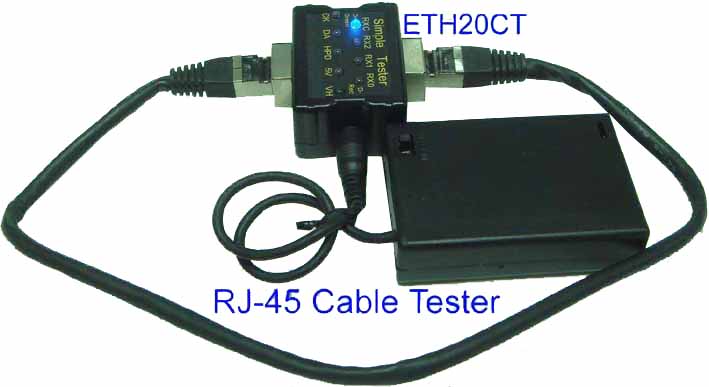

- With RJ45/F & RJ45/F Connectors (RJ45 Cable Tester)
- Standard RJ45/F Cable Tester
- Fit Cat5e/Cat6 cable test
- Ethernet Cable full pin test & Shield Test
- LED scan RJ45 1~8 pin + Shield - 9
- LED display test result
- Test cable Open & Short
- Open / Short : LED NO Light
- Easy to install , Plug & Play
- With 5V / 3.5mm power jack (Inner + / Outer -)
- With 5V USB power cable
- Power jack :Center pin / 1.3mm
- With 2 colors LED appeared
- Compact size
- Support plug & play
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 47 * 48 * 24 ( mm ) body
Pin Assignment :
| RJ45 | Signal | Text | LED-Color | Test-wire |
| 1 | 1 | 1 | Blue | O-W |
| 2 | 2 | 2 | Blue | O |
| 3 | 3 | 3 | Blue | G-W |
| 4 | 4 | 4 | Blue | B |
| 5 | 5 | 5 | Blue | B-W |
| 6 | 6 | 6 | Blue | G |
| 7 | 7 | 7 | Blue | Br-w |
| 8 | 8 | 8 | Blue | Br |
| Shield | Shield | 9 | Green | Shield |
|
Test step -T568B : 1=>2=>3=>4=>5=>6=>7=>8=>9
|
||||
