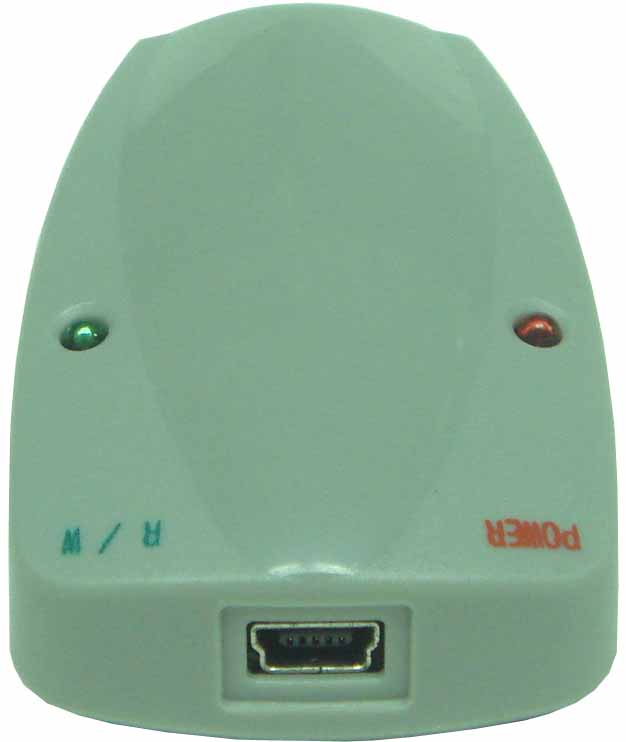

ETU-200(USB2.0 To Ethernet Converter )
The ETU-200 USB to 10/100 Fast Ethernet / Home PNA / HomePlug controller is a high performance and highly integrated ASIC with embedded 28KB SRAM for packet buffering. It enables low cost and affordable Fast Ethernet network connection to desktop, notebook PC, and embedded system using popular USB ports. It has an USB interface to communicate with USB host controller and is compliant with USB specification V1.0, V1.1 and V2.0. It implements 10/100Mbps Ethernet LAN function based on IEEE802.3, and IEEE802.3u standards or Home PNA standard. It integrates an on-chip 10/100Mbps Ethernet PHY to simplify system design and provides an optional media-independent interface (MII) for implementing Fast Ethernet and Home PNA functions.
  • Connectors : USB .... B/F , LAN .... RJ-45 Receptacle
  • LED Function : Power, Link....... TX/RX / LED Display working
  • Weight : 26g
  • Dimensions (L*W*H) : 64 * 40 * 24 ( mm )
