4
HDMI

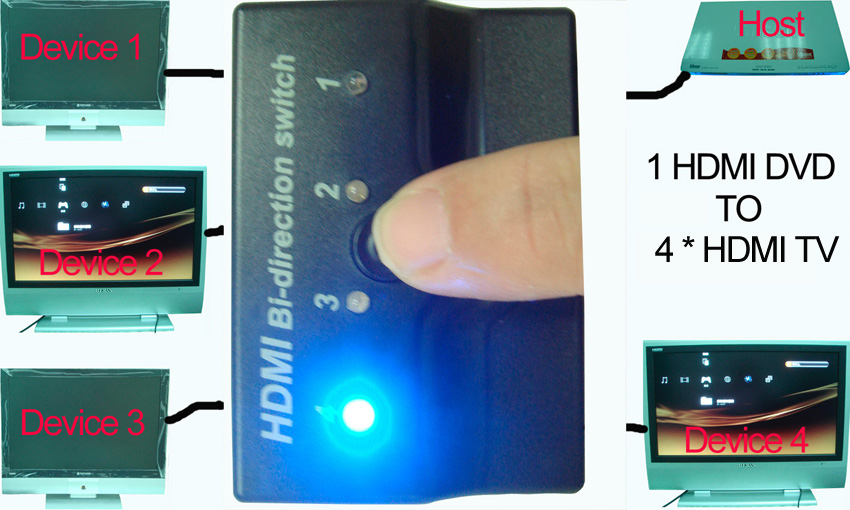

- Host (DVD Player or PS3 ) to 1 HDMI Monitor or TV
-
1
HDMI

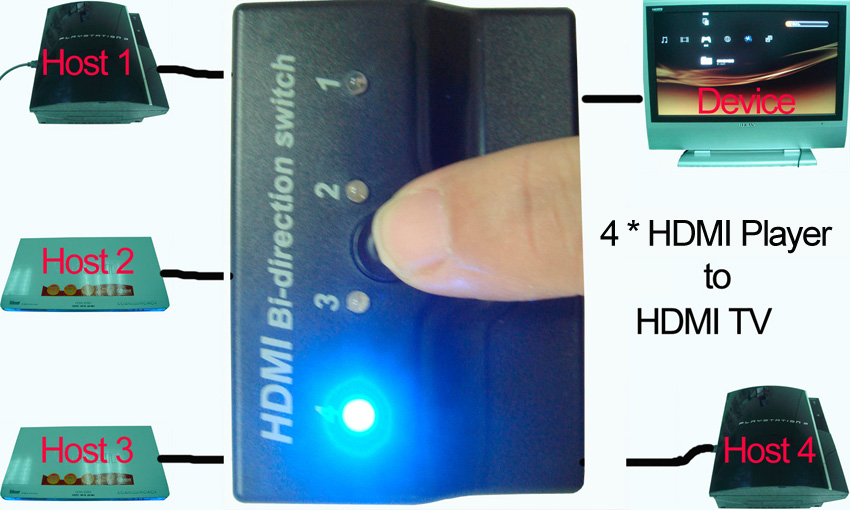

- Host (DVD Player or PS3 ) to 4 HDMI Monitor or TV
-
Power free
-
MAX operation current : 40ma
-
Full compliance with the
HDMI Specification V1.0,
V1.1,
V1.2, V1.3
-
Main
control : Manual electron select
With
4 LEDs display working port
-
5
HDMI
A/F
connectors
-
LED
:
4 (Blue)
, Display working port
-
Easy
install & operation
-
Support
HDMI Plug & Play
-
Support
HDMI
1920
* 1080P * 60 (MAX)
-
Support
MAX cable length : 5m (total)
-
Plug & Play
-
Dimensions
:72*51*24
mm (L ,W , H)
-
Weight
:
55 g Housing :
Plastic
|
|
Pin 1 |
TMDS Data2+ |
Pin 11 |
TMDS Clock Shield |
|
Pin 2 |
TMDS Data2 Shield |
Pin 12 |
TMDS Clock– |
|
Pin 3 |
TMDS Data2– |
Pin 13 |
CEC |
|
Pin 4 |
TMDS Data1+ |
Pin 14 |
Reserved (N.C. on device) |
|
Pin 5 |
TMDS Data1 Shield |
Pin 15 |
SCL |
|
Pin 6 |
TMDS Data1– |
Pin 16 |
SDA |
|
Pin 7 |
TMDS Data0+ |
Pin 17 |
DDC/CEC Ground |
|
Pin 8 |
TMDS Data0 Shield |
Pin 18 |
+5 V Power |
|
Pin 9 |
TMDS Data0– |
Pin 19 |
Hot Plug Detect |
|
Pin 10 |
TMDS Clock+ |
|
|
|
