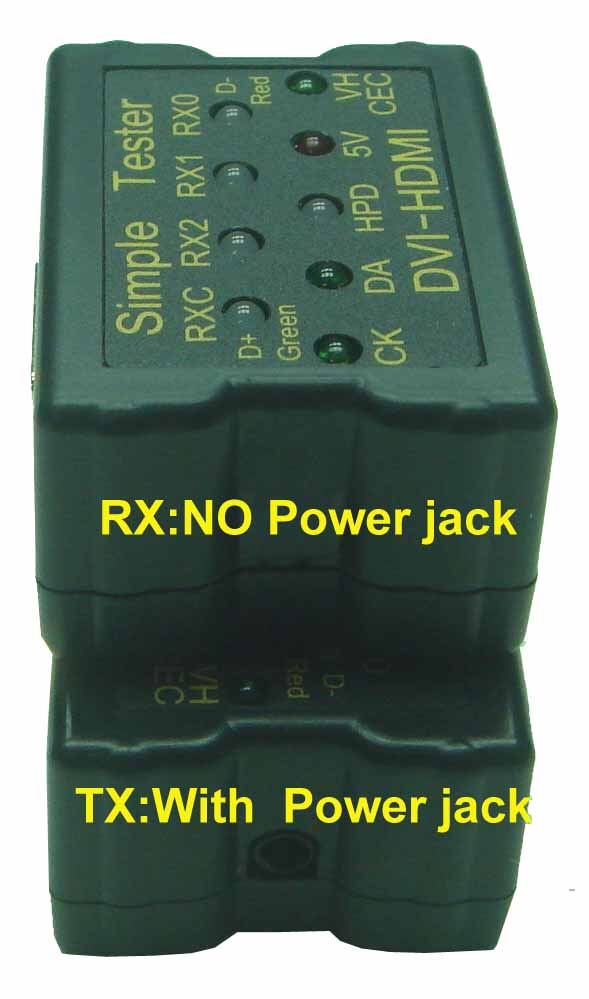

HDM-20-RT (HDMI-V2.0 TX-RX Cable tester)

Power supply : USB Power cable / Battery / AC Adapter (option)
Features & Specification Test - Table
  • HDM-20T-TR is HDMI-V2.0 cable tester. HDM20T-TX+HDM20T(RX) can test the “Open” & “Short” of HDMI cable. It is standard HDMI male to HDMI male cable tester. HDM-20T-TR use 9 pcs LED to show the test result.
  • DC 5V Power required
  • With HDMI-F Connectors *2 - HDMI-M Cable Test
  • LED display test result
  • Test cable Open & Short
  • Open / Short : LED NO Light
  • With V1.4 HEAC Pin test
  • Easy to test
  • With 3 colors LED appeared
  • Compact size
  • Housing : Plastic,
  • Weight : 55g
  • Dimensions (L*W*H) : 47 * 35 * 24 ( mm )
  • With 5V / 3.5mm power jack (Inner + / Outer -)
  • With 5V USB power cable
  • Power jack :Center pin / 1.3mm
  • * Double color LED

  • If Pin 2/5/8/11(GND1) open RX0~RXC don't light

  • If Pin 17 (GND2) open CK / DA / HPD /  5V / CEC-VH don't light

  • Pin Assignment :

  • HDMI-F<=>HDMI-F

    Signal

    Text

    LED-Color

    Pin 1 <=> Pin 1

    D2+

    RX2

    Green *

    Pin 3 <=> Pin 3

    D2-

    RX2

    Red *

    Pin 4 <=> Pin 4

    D1+

    RX1

    Green *

    Pin 6 <=> Pin 6

    D1-

    RX1

    Red *

    Pin 7 <=> Pin 7

    D0+

    RX0

    Green *

    Pin 9 <=> Pin 9

    D0-

    RX0

    Red *

    Pin 10 <=> Pin10

    CLK+

    RXC

    Green *

    Pin 12 <=> Pin 12

    CLK-

    RXC

    Red *

    Pin 13 <=> Pin 13

    CEC

    CEC-VH

    Green

    Pin 15 <=> Pin 15

    DDC-C

    CK

    Green

    Pin 16 <=> Pin 16

    DDC-D

    DA

    Green

    Pin 18 <=> Pin 18

    +5V

    5V

    Red

    Pin 19 <=> Pin 19 (V1.4 - HEAC-) V1.3 HPD

    HPD / HEAC-

    HPD

    Red*

    Pin 14 (V1.4 - HEAC+) V1.3 / NC

    HEAC+

    HPD

    Green*

    Pin 2/5/8/11

    GND1

    RX0~RXC

    Pin 17

    GND2

    CK/DA/HPD-5V/CEC

    Test  step: RX0(G/R)=>RX1(G/R)=>RX2(G/R)=>RXC(G/R)=CK=>DA=> HPD-HEAC(G/R)=>5V=>CE
