Features & Specification

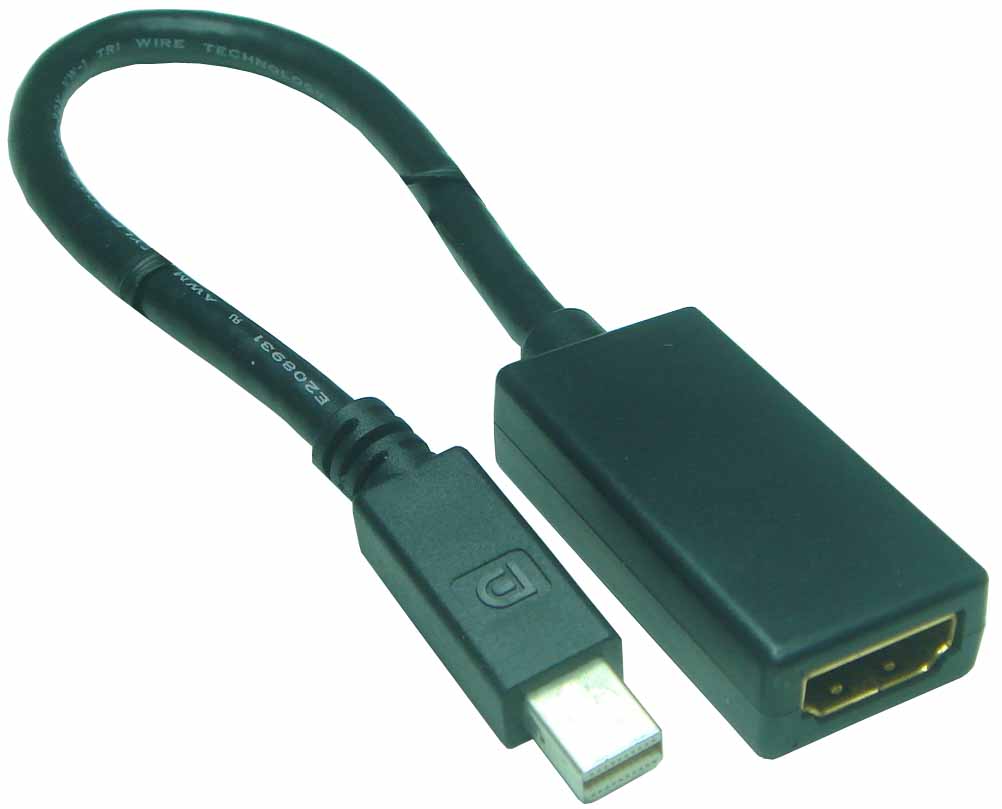

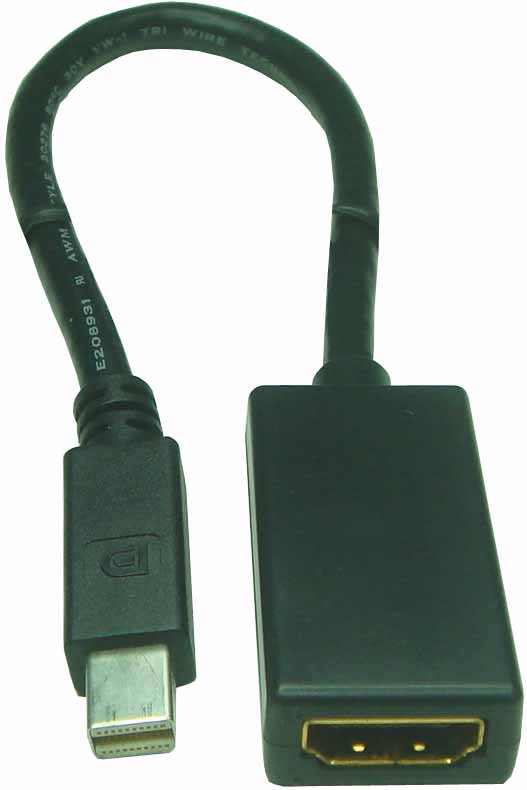

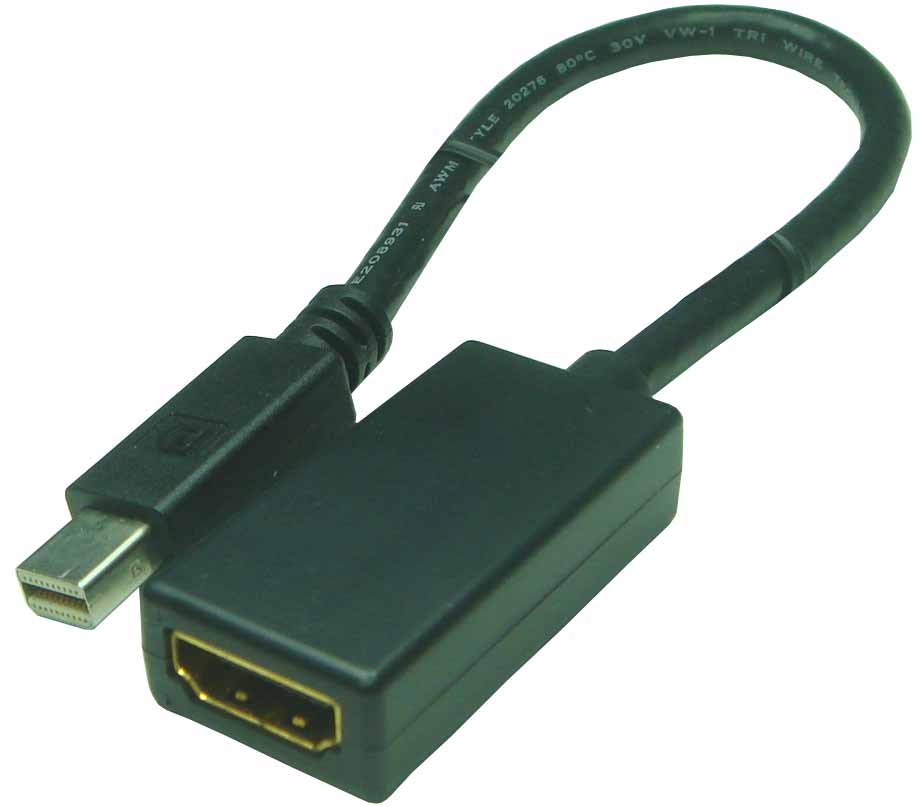

• M2H-100 : MAC MINI DisplayPort (MDP) to HDMI Female 15cm cable
• The M2H-100 integrates 1-to-1 MDP & HDMI / DVI Level Shifter.
• Compliant with DisplayPort 1.1
• Integrated 50 Ohm termination resistors for AC coupled differential inputs
• Low Intra-pair and Intra-pair skews
• Support full DisplayPort link training
• Support HDMI V1.4b / DVI V1.0 Level Shifting
• Support DisplayPort all 4 levels of output
• Support Dual Mode DP Source Repeater & HDMI/DVI Source Level Shifter
• AC coupled TMDS level shifting operation up to 3.0 Gbit/s per lane (300 Mhz character clock),Support video format 4K x 2K
•  Integrated DDC Level Shifter (3.3 V source side to 5V sink side and vice versa)
• DDC Support up 400kHZ clock frequency
•  Integrated DDC buffer for M2H-100
• With HPD Level Sifting
• Power supply 3.3V (MDP 3.3V) / Power-saving mode by source-side
• ESD protection up to 3 KV
• Transparent operation : no re-timing or software configuration required
• Complable HDMI port of TV / Monitor
• Easy to install , Plug & Play, Powers free
• M2H-100 Connector : MDP + PCB BODY + HDMI-F 15CM Cable
• Weight : 45g include 15CM cable
• Dimensions (L*W*H) : 45 *22 * 12 ( mm )
