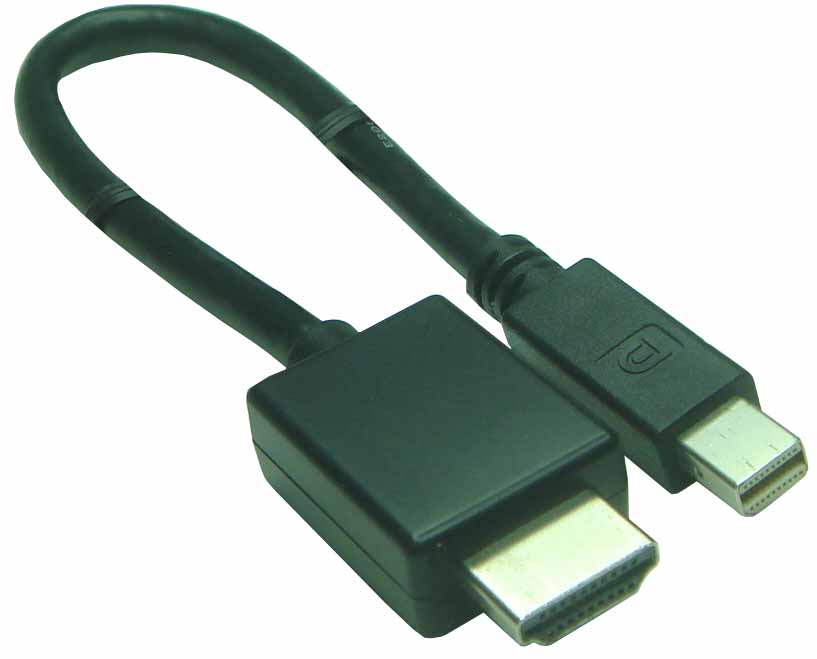

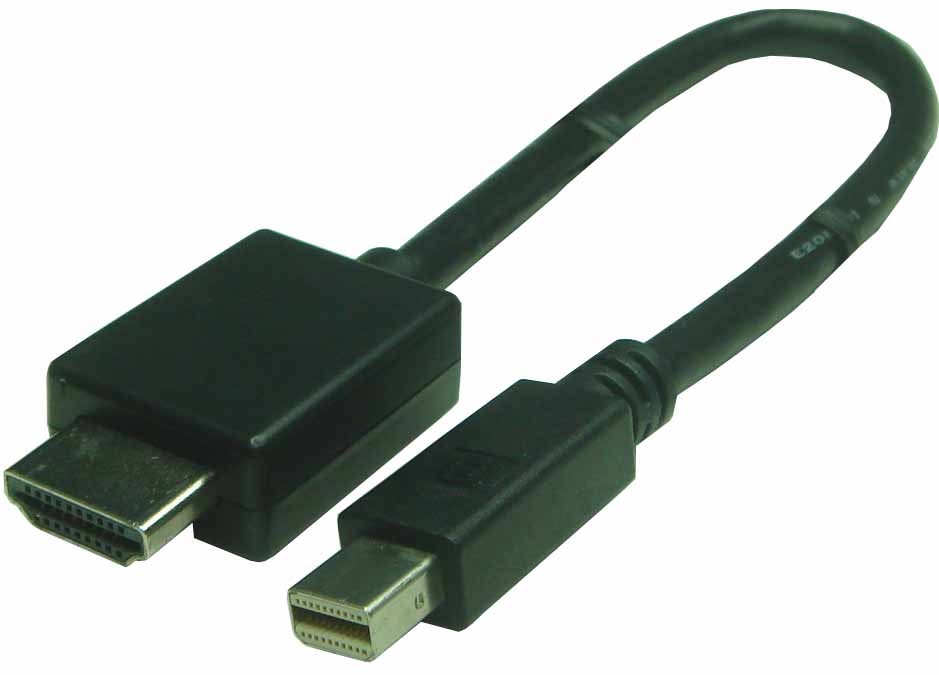

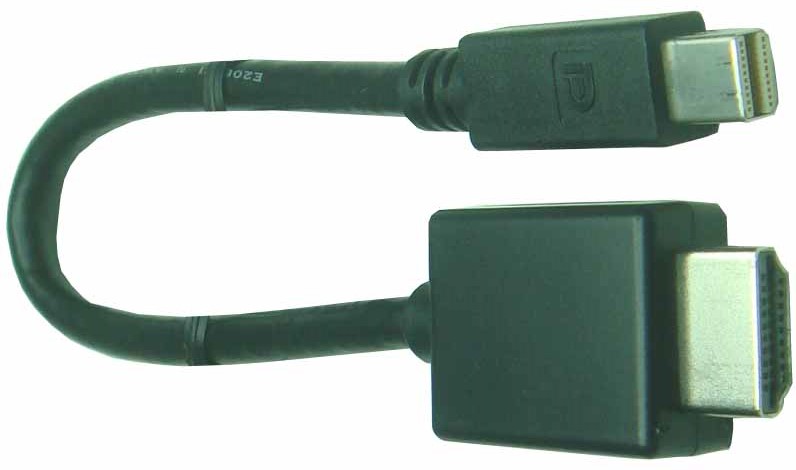

- M2H-200 : MAC MINI DisplayPort (MDP) to HDMI Male 100 / 180cm cable
- The M2H-200 integrates 1-to-1 MDP & HDMI / DVI Level Shifter. /Compliant with DisplayPort 1.1
- Integrated 50 Ohm termination resistors for AC coupled differential inputs
- Support full DisplayPort link training
- Support HDMI V1.4b / DVI V1.0 Level Shifting
- Support DisplayPort all 4 levels of output
- Support Dual Mode DP Source Repeater & HDMI/DVI Source Level Shifter
- AC coupled TMDS level shifting operation up to 2.5 Gbit/s per lane (300 Mhz character clock),Support video format 4K x 2K
- Integrated DDC Level Shifter (3.3 V source side to 5V sink side and vice versa)
- DDC Support up 400kHZ clock frequency / Integrated DDC buffer for M2H-200
- Power supply 3.3V (MDP 3.3V) / Power-saving mode by source-side
- ESD protection up to 3 KV
- Transparent operation : no re-timing or software configuration required
- Complable HDMI port of TV / Monitor
- Easy to install , Plug & Play, Powers free
- M2H-200 Connector : MDP 100 / 180CM Cable + PCB BODY + HDMI-M
- Weight : M2H-200 / 105g include 100 / 180CM cable
- M2H-200 Dimensions (L*W*H) : 36 *22 * 12 - Include connector ( mm )
