( HDMI or DVI or Display port or Mini Display port ) in to HDMI + ( HDMI or DVI or VGA ) 2 port Splitter
HDMI IN DVI IN Display port IN MDP IN Output 1 Output 2

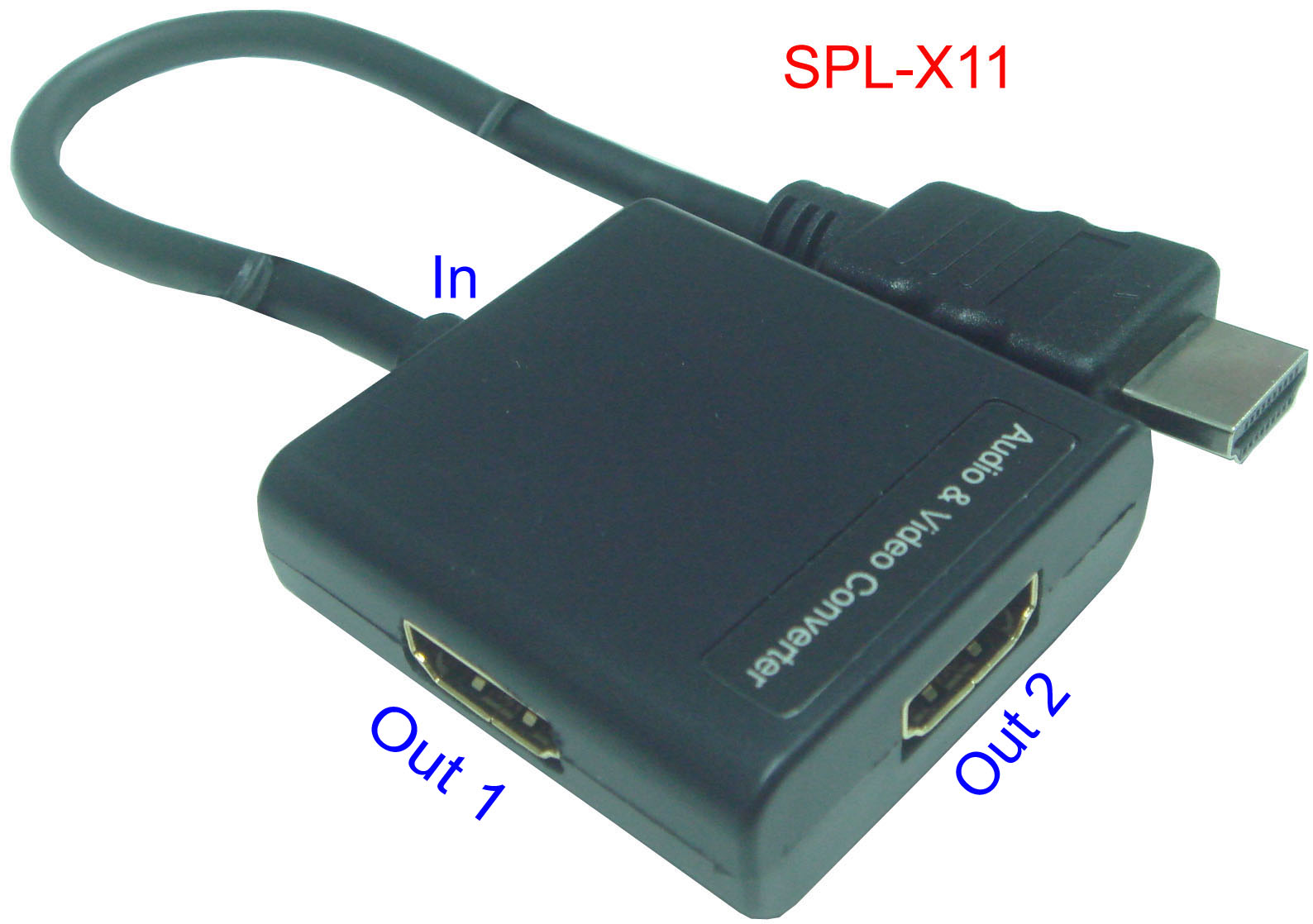

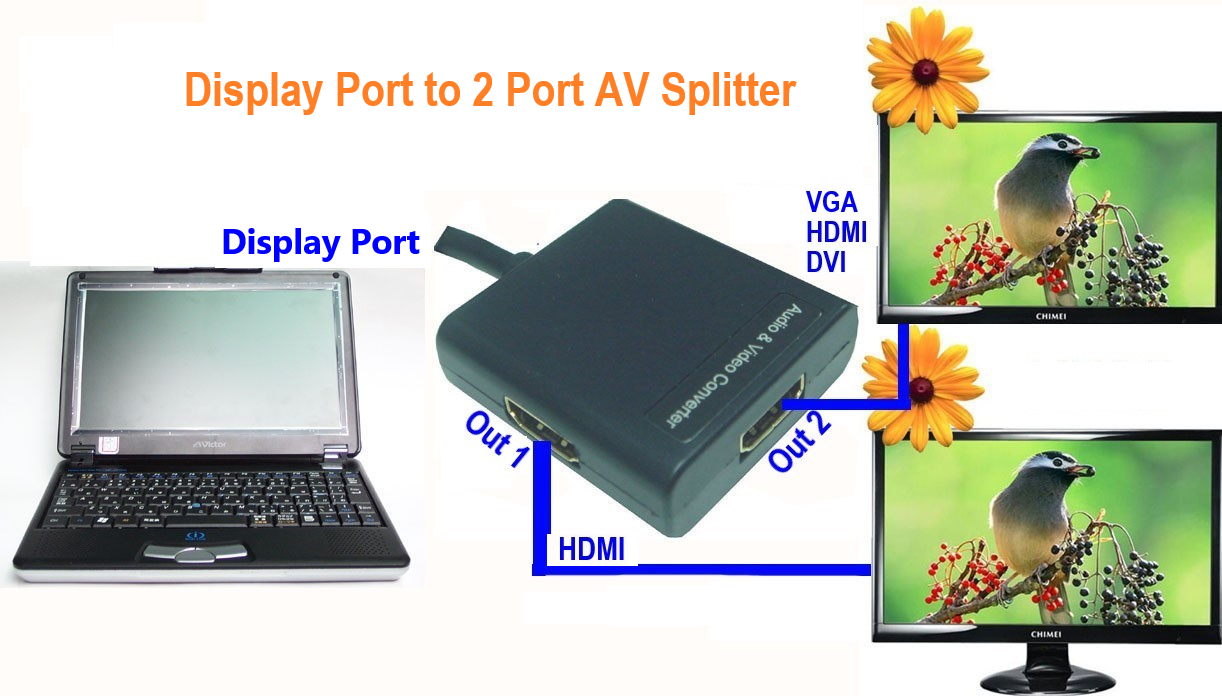

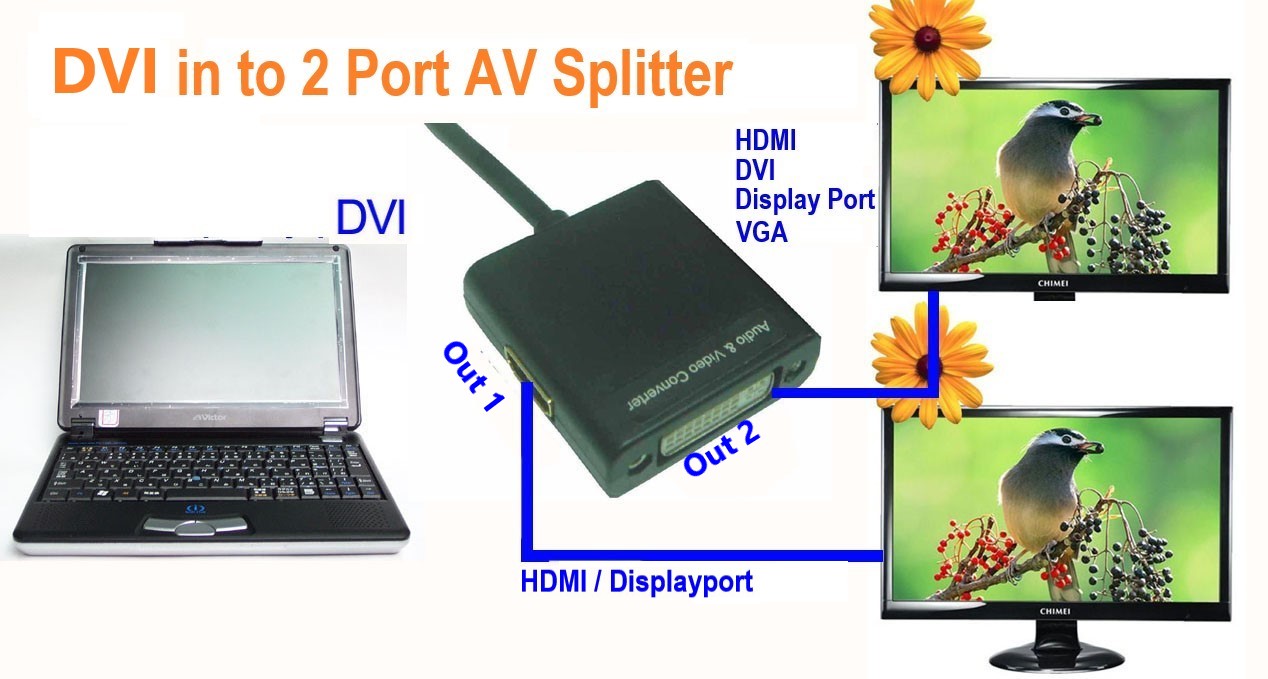

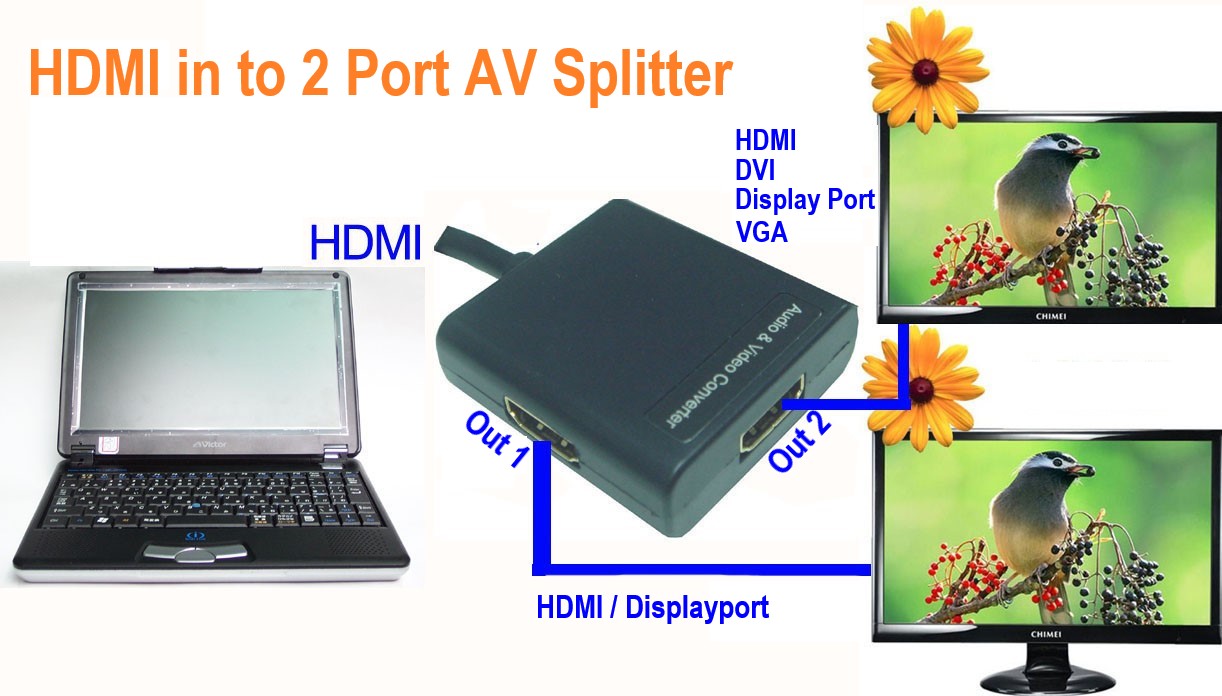

SPL-111 SPL-211 SPL-311 SPL-411 HDMI HDMI
SPL-112 SPL-212 SPL-312 SPL-412 HDMI DVI
SPL-115 SPL-215 SPL-315 SPL-415 HDMI VGA+Audio
Multiple Converter &  HDMI / DVI / VGA Splitter  - Features & Specification
Multiple Converter &  HDMI / VGA Splitter can repeat one HDMI / DVI / Display port / Mini display port  signal to HDMI / DVI signal sets, support up to 2 different HDMI / DVI receiving/display terminals. Based on Cleared Edge technology, it supports up to 3.4Gbps data rate per channel, compliant with the HDMI 1.4 / DVI 1.0 specifications. The device incorporates a pair of ODTs, an adaptive equalizer and a CDR circuit on each data channel of receiver side, and a de-emphasis driver with optional back terminations on each data channel of transmitter side. The clock channel feeds a high-performance PLL that regenerates a low jitter output clock for data recovery. The Multiple Converter &  HDMI / DVI Splitter process HDCP decryption / encryption and transmits the data to 2 HDMI/DVI ports.  The HDCP repeater engine in Multiple Converter &  HDMI / DVI Splitter handles all the processing required by authentication, decryption and encryption in hardware. This greatly reduces the external MCU overhead and firmware complexity. However, for more flexibility, the Multiple Converter &  HDMI / DVI Splitter also provides an option of software-controlled mode in which HDCP operations are entirely controlled by external MCU. Pre-programmed HDCP key sets ease the use of HDCP function. However, users can also use external key sets through the ESCL / ESDA port. The Multiple Converter &  HDMI / VGA Splitter integrates EDID shadow RAM for better compatibility and reduced system complexity. Embedded EDID is accessible to the upstream port before the real EDID is loaded by the external MCU. Fabricated in an advanced CMOS process, the Multiple Converter &  HDMI / VGA Splitter is provided specified over the 0°C to +70°C temperature range.

  • Power Free
  • HDMI 1.4/DVI 1.0 specifications compliant / Display port & Mini Display port / Support 3D video formats and 4Kx2K extended resolution formats up to    3.4Gbps data rate
  • Adaptive equalization and de-emphasis to compensate long cable losses
  • HDMI/DVI/Displayport / Mini display port  input port, up to HDMI/DVI out put ports
  • Unlimited cascading for more output ports or signal repeating
  • Multiple display/TV support
  • VGA Support 1920*1080P
  • Dimension :46 * 48 *15 ( mm ) +15cm Cable   Weight : 60g include cable

  •     Compliant with DisplayPort 1.1
    Low Intra-pair and Inter-pair skews
    Support full DisplayPort link training
    Support DisplayPort all 4 levels of output
    Support Dual Mode DP Source Repeater & HDMI/DVI Source Level Shifter
    3.2 HDMI V1.4/DVI V1.0 Level Shifting
    AC coupled TMDS level shifting operation up to 3 Gbit/s per lane (300 MHz character clock),
    Support video format 4K x 2K
    Low Intra-pair and Inter-pair skews
    Disable feature to turn off TMDS inputs and outputs and to enter low-power state
    3.3 DDC Level Shifting
    Integrated DDC level shifting (3.3 V source side to 5 V sink side and vice versa)
    Integrated DDC bufferfor HDMI cable adaptor or DVI cable adaptor application
    to 3.3V on the source side
    Integrated 500 kpull-down resistor on HPD sink input guarantees ‘input LOW’ when no display is
    plugged in
    3.6 General
    / ESD protection up to 3 kV
    Power-saving modes by source-side disablement (using output enable) as well as sink-side detection
    (using Hot Plug Detect)
    Transparent operation: no re-timing or software configuration required
