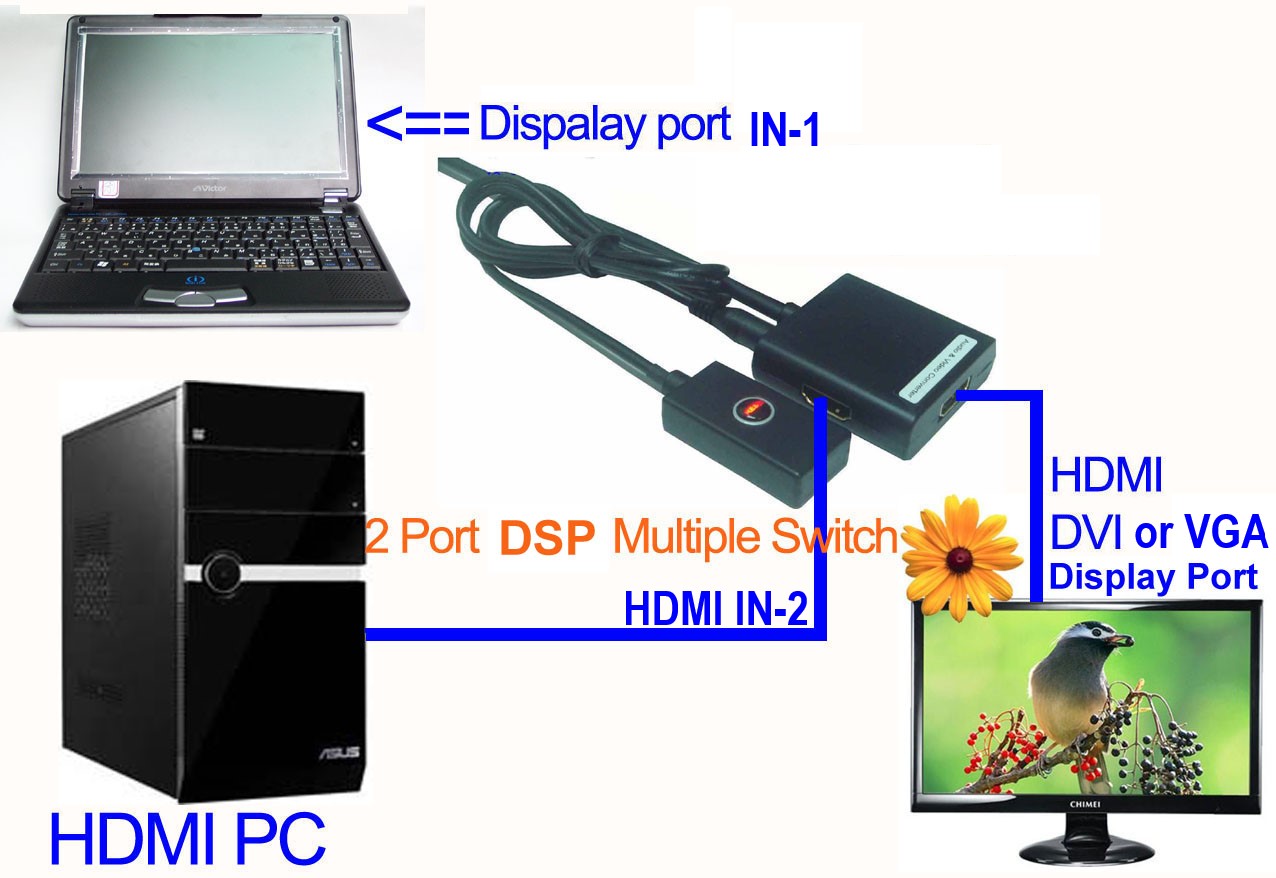

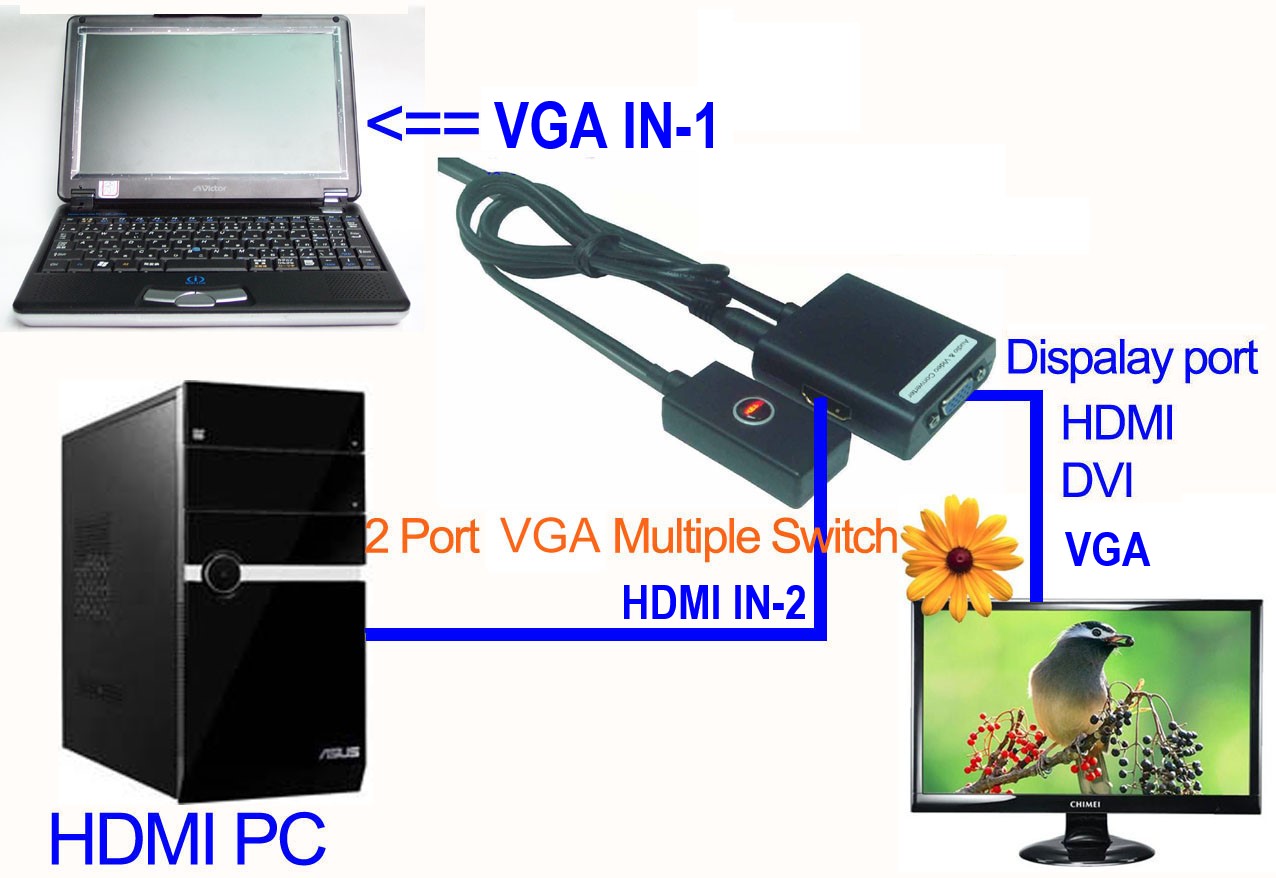

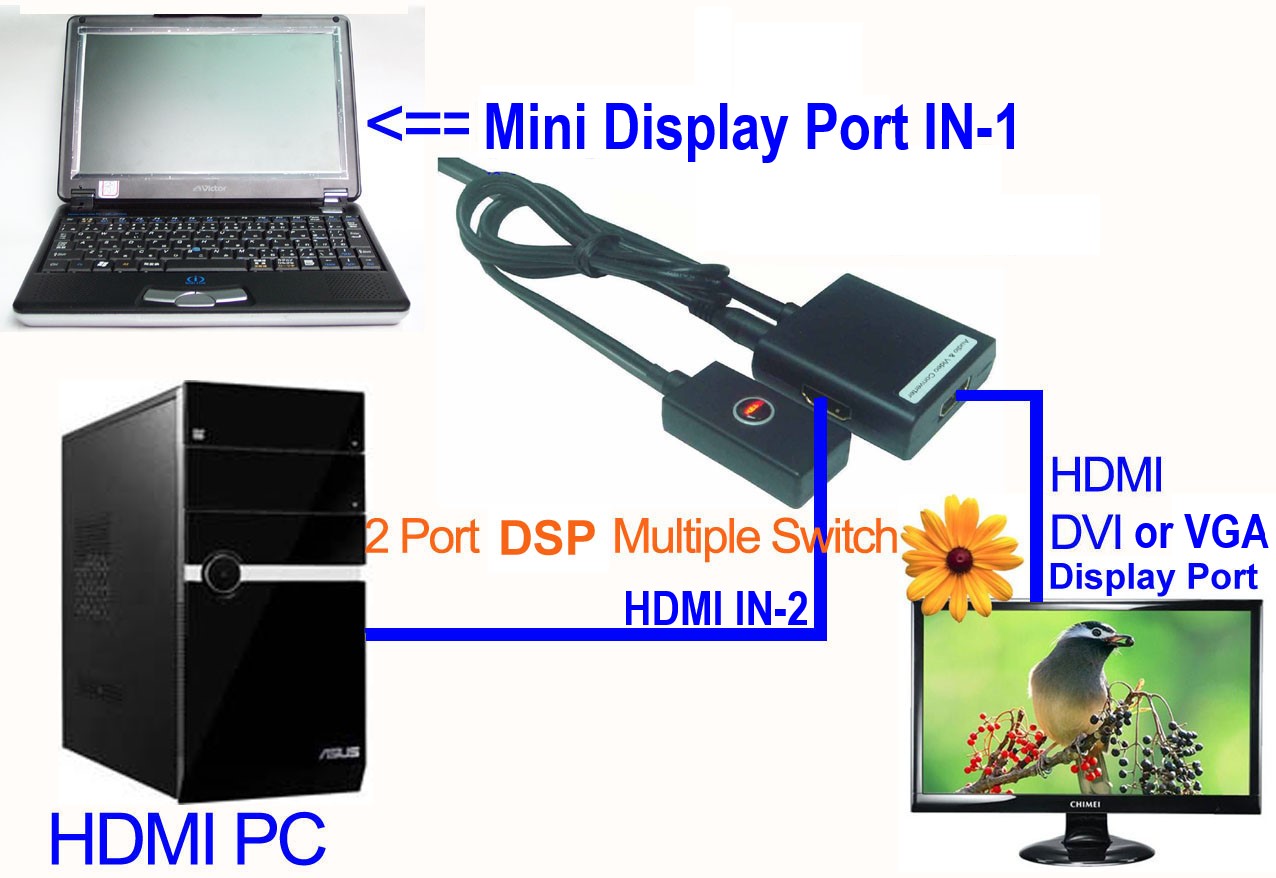

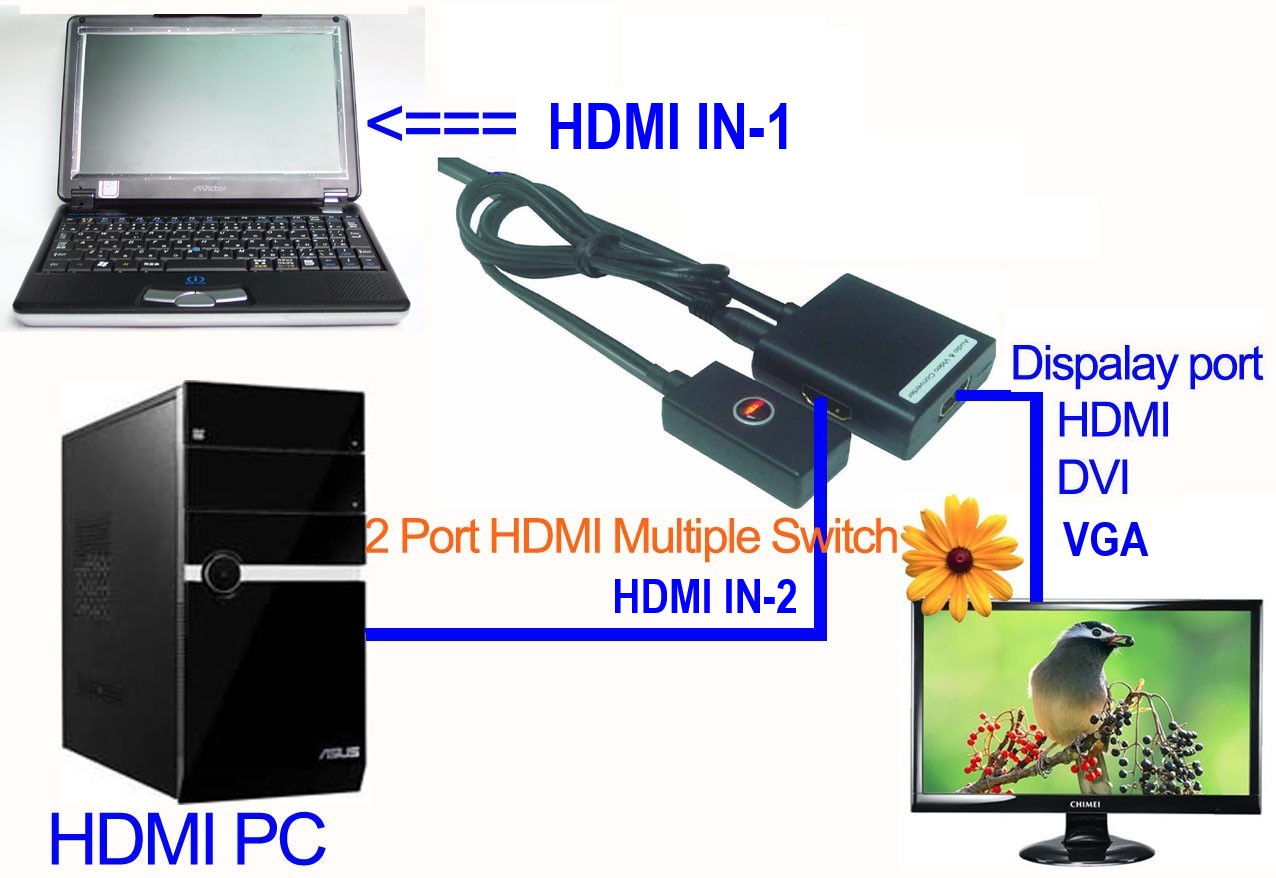

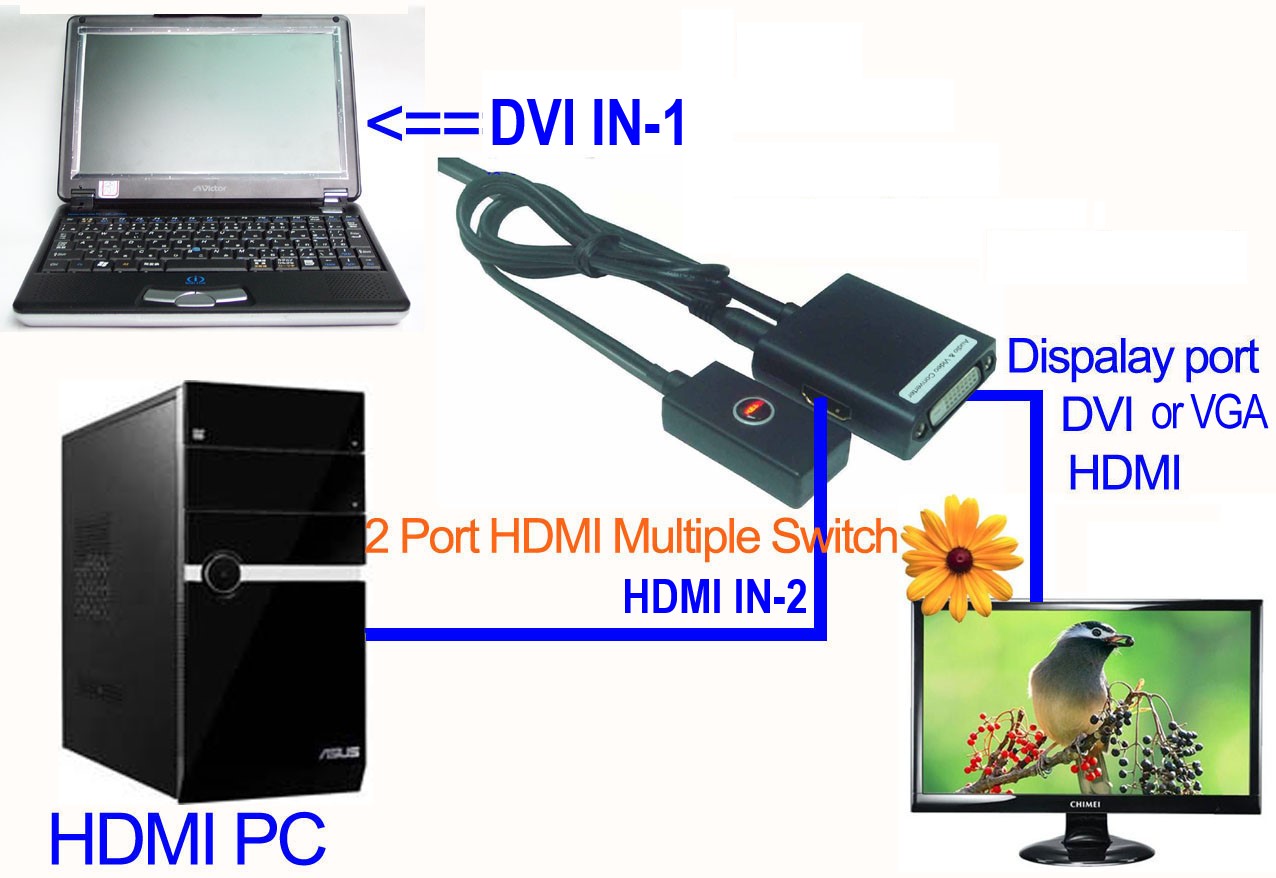

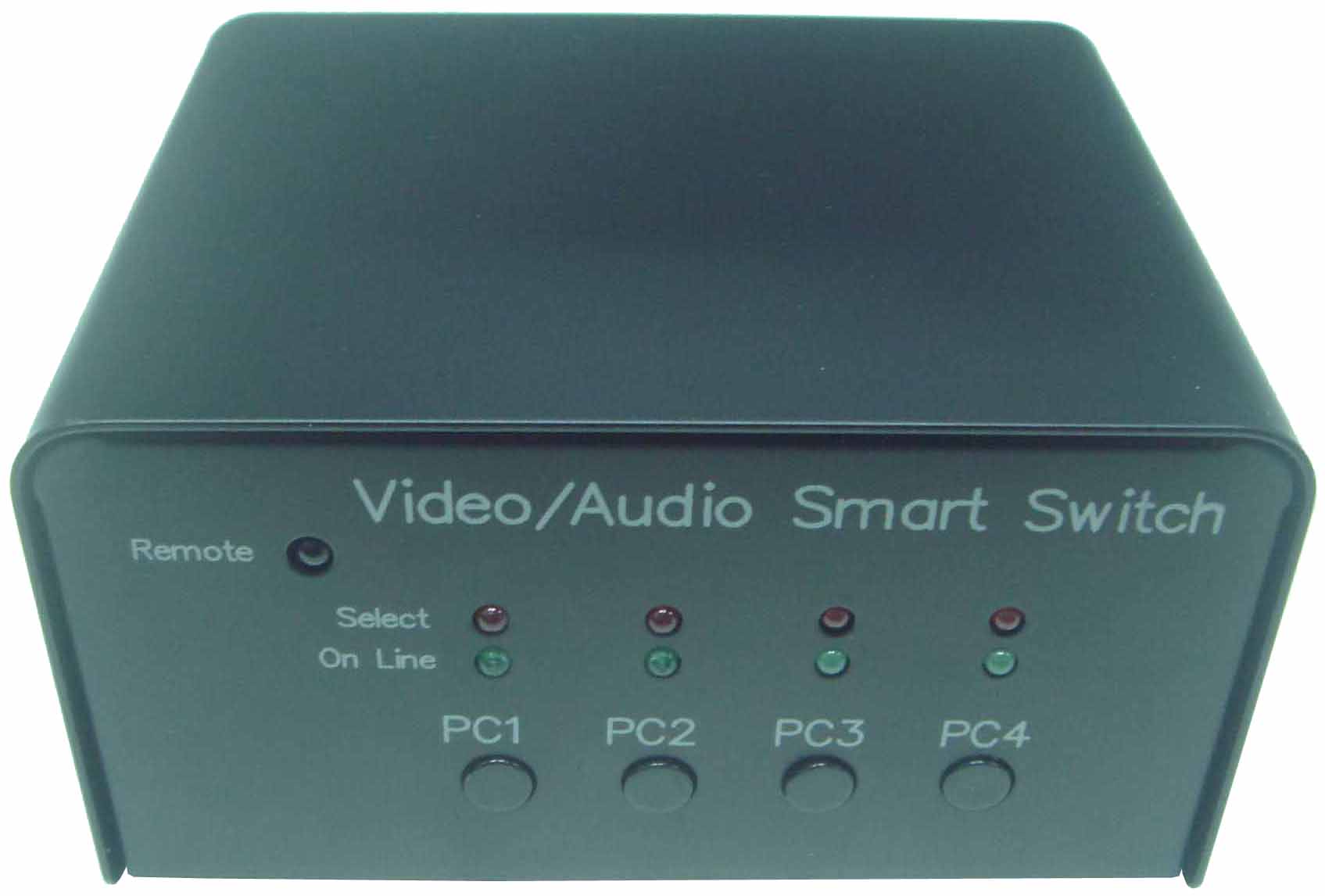

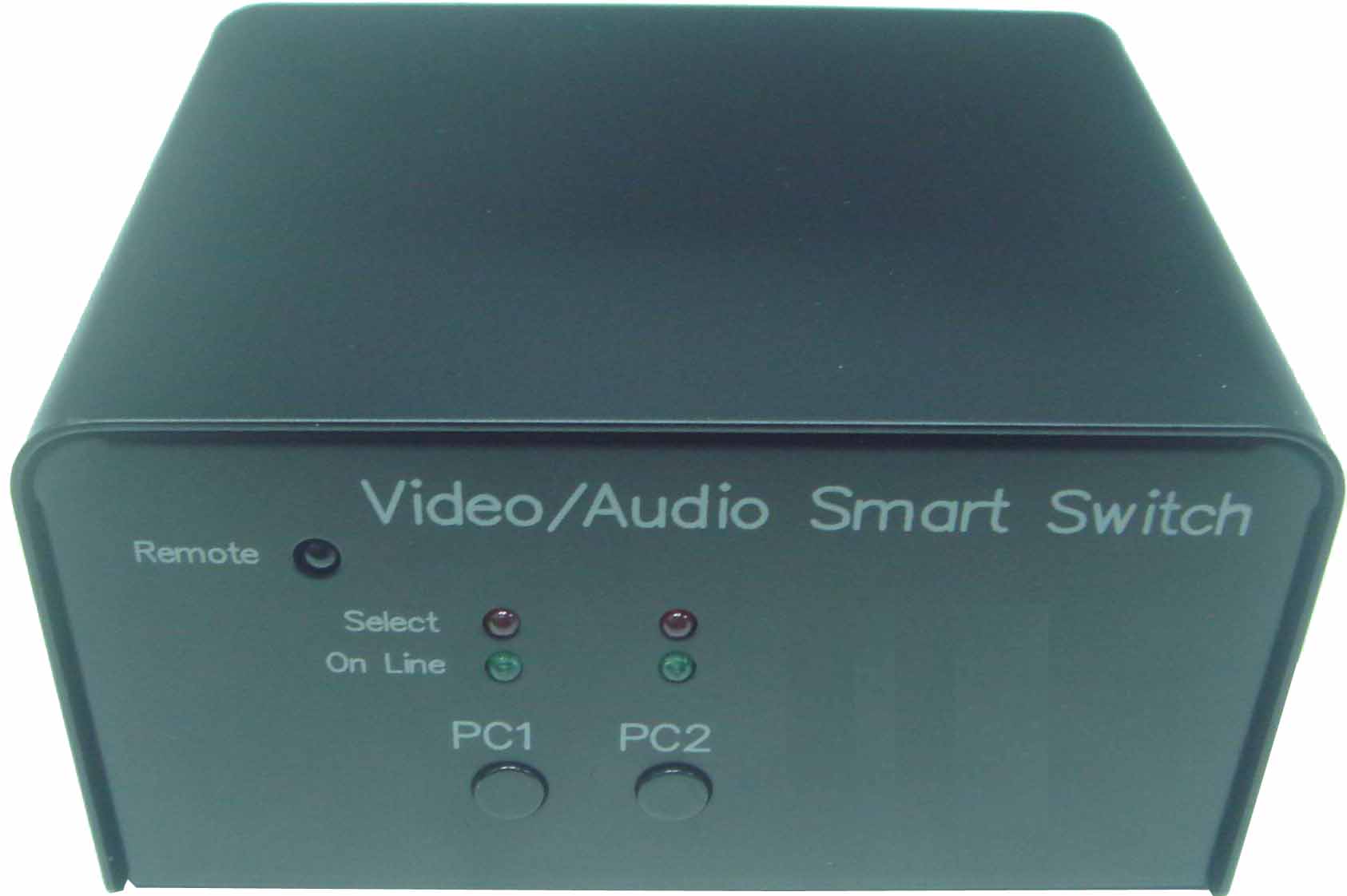

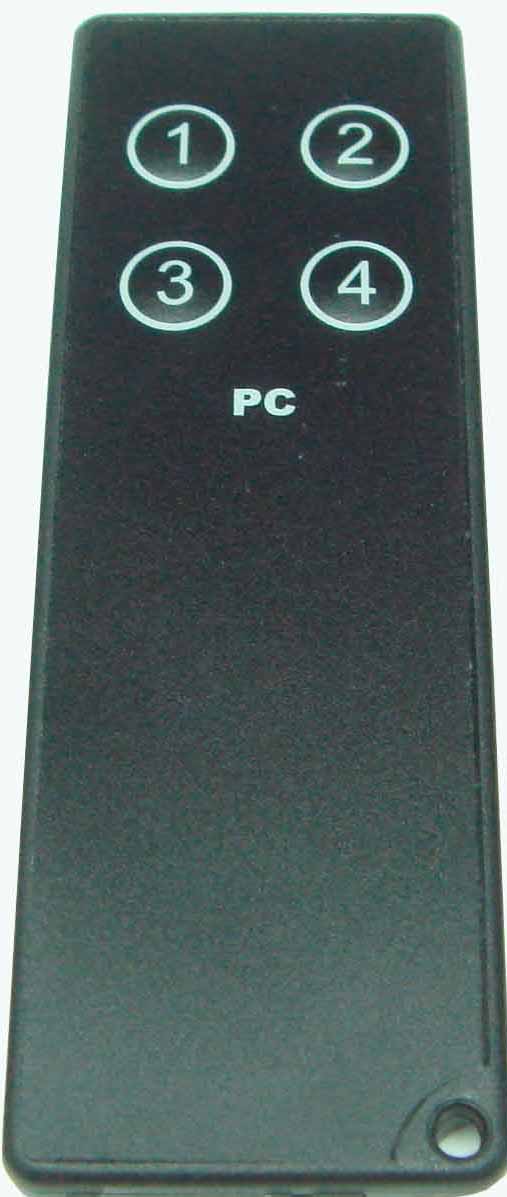

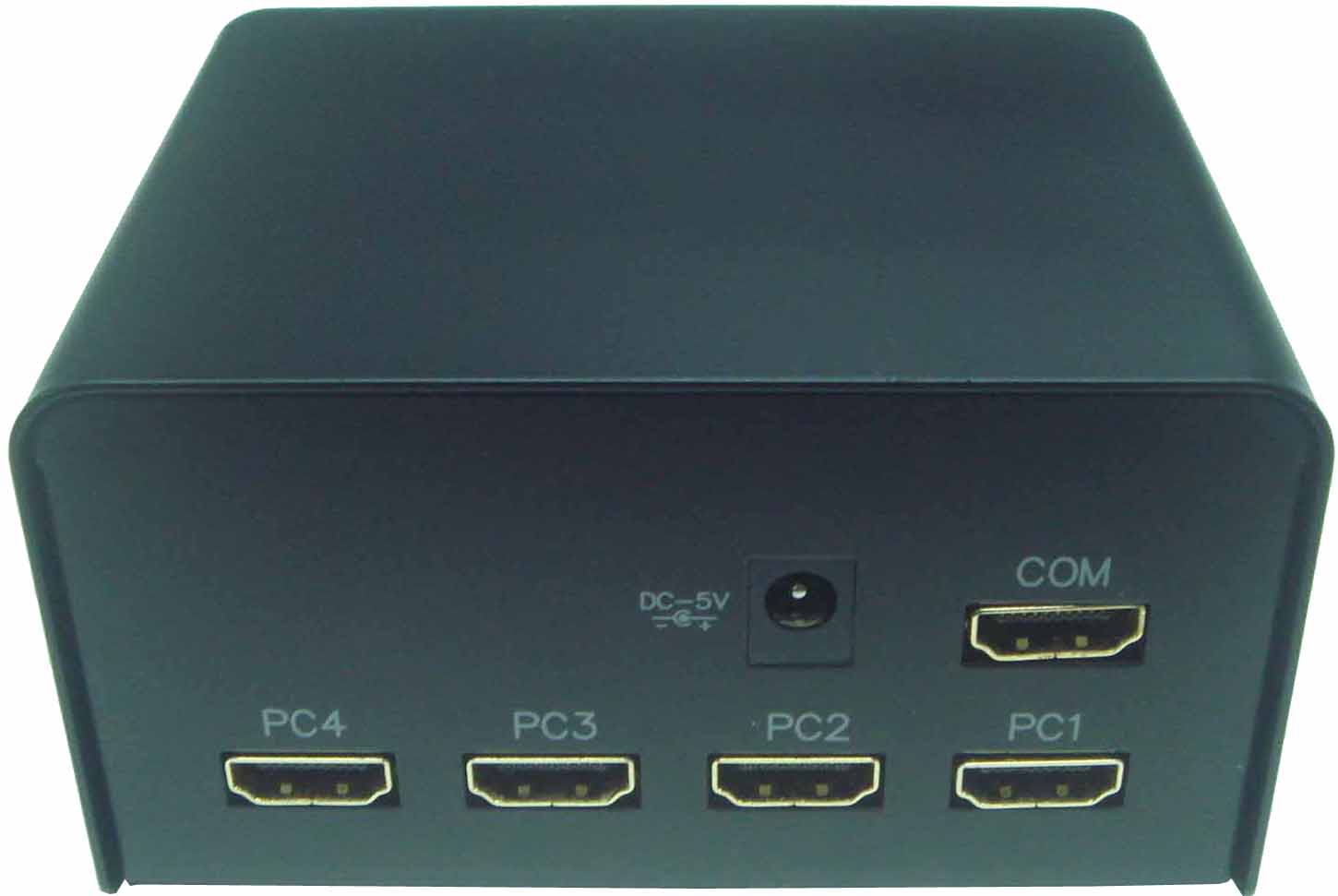

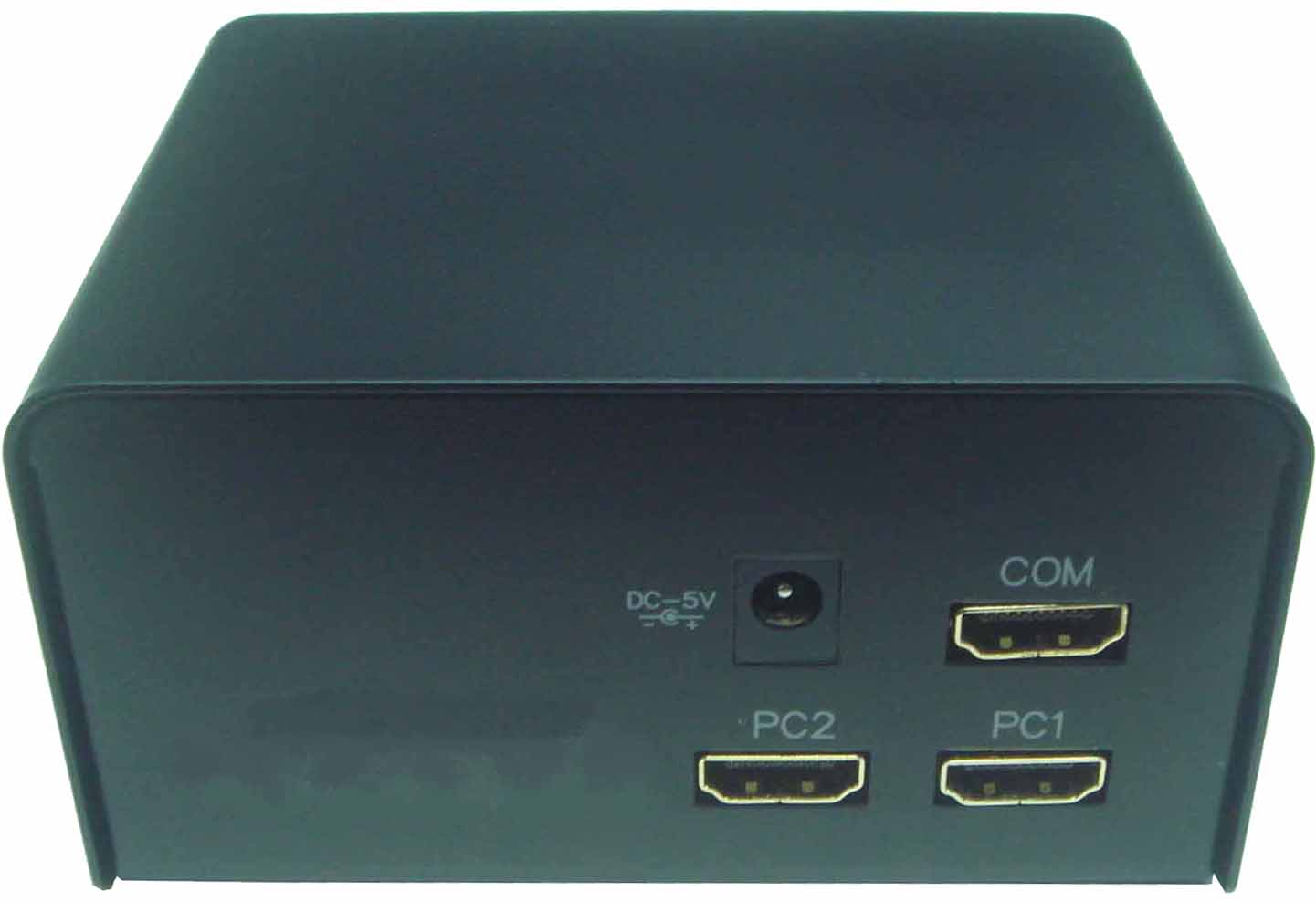

( HDMI or DVI or Display port or Mini Display port or VGA) + HDMI to (HDMI or DVI or VGA) 2 Port Switch
HDMI IN-1 DVI IN-1 Display port IN-1 MDP IN-1 VGA IN-1 HDMI IN-2 Output
SWH-111 SWH-211 SWH-311 SWH-411 SWH-511 HDMI IN-2 HDMI
SWH-112 SWH-212 SWH-312 SWH-412 SWH-512 HDMI IN-2 DVI
SWH-115 SWH-215 SWH-315 SWH-415 SWH-515 HDMI IN-2 VGA

Multiple Converter &  HDMI to HDMI / DVI / VGA Switch
Features Specification

Multiple Converter &  HDMI / DVI Splitter can repeat one HDMI / DVI / Display port / Mini display port  signal to HDMI / DVI signal sets, support up to 2 different HDMI / DVI receiving/display terminals. Based on Cleared Edge technology, it supports up to 3.4Gbps data rate per channel,with Auto skip fuction compliant with the HDMI 1.4 / DVI 1.0 specifications. The device incorporates a pair of ODTs, an adaptive equalizer and a CDR circuit on each data channel of receiver side, and a de-emphasis driver with optional back terminations on each data channel of transmitter side. The clock channel feeds a high-performance PLL that regenerates a low jitter output clock for data recovery.  However, users can also use external key sets through the ESCL / ESDA port. The Multiple Converter &  HDMI / DVI Splitter integrates EDID shadow RAM for better compatibility and reduced system complexity. Embedded EDID is accessible to the upstream port before the real EDID is loaded by the external MCU. Fabricated in an advanced CMOS process, the Multiple Converter &  HDMI / DVI Splitter is provided specified over the 0°C to +70°C temperature range.

  • HDMI 1.4/DVI 1.0 specifications compliant / Display port & Mini Display port
    Support 3D video formats and 4Kx2K extended resolution formats up to 3.4Gbps data rate
  • Adaptive equalization and de-emphasis to compensate long cable losses
  • Integrated EDID shadow RAM and embedded EDID
  • 5V-tolerant DDC interfaces
  • HDMI/DVI/Displayport / Mini display port  input port, up to HDMI/VGA out put ports
  • Unlimited cascading for more output ports or signal repeating
  • Multiple display/TV support

  • Dimension :46 * 48 *15 ( mm ) +15cm Cable   Weight : 60g include cable

  • Power Free Except SWH-511 / SWH-512 / SWH-515

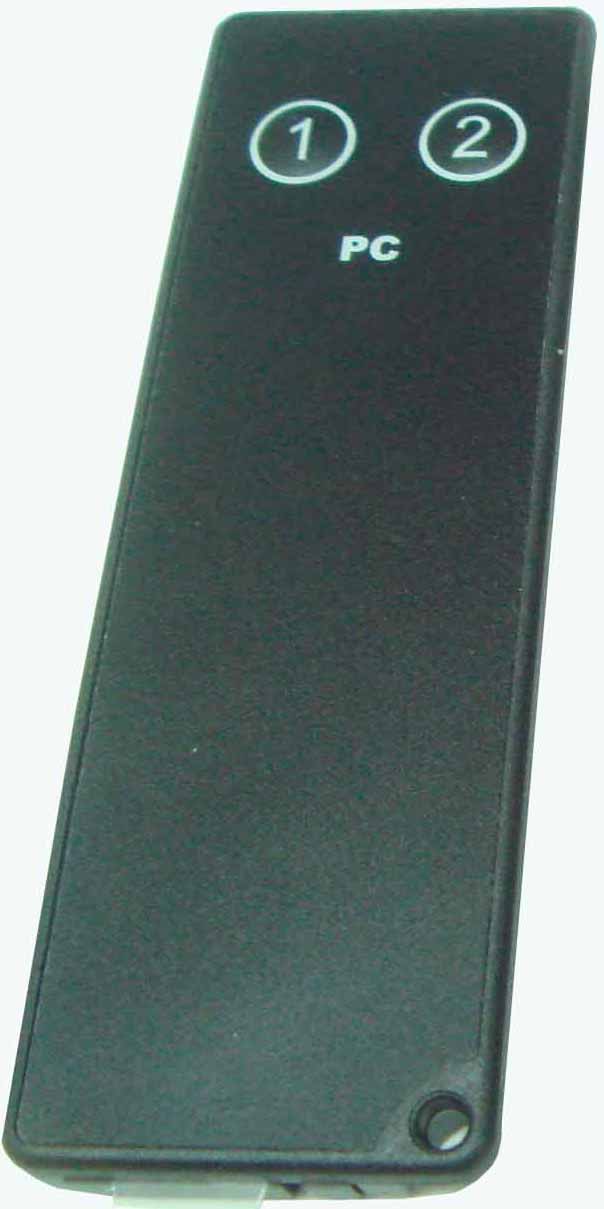

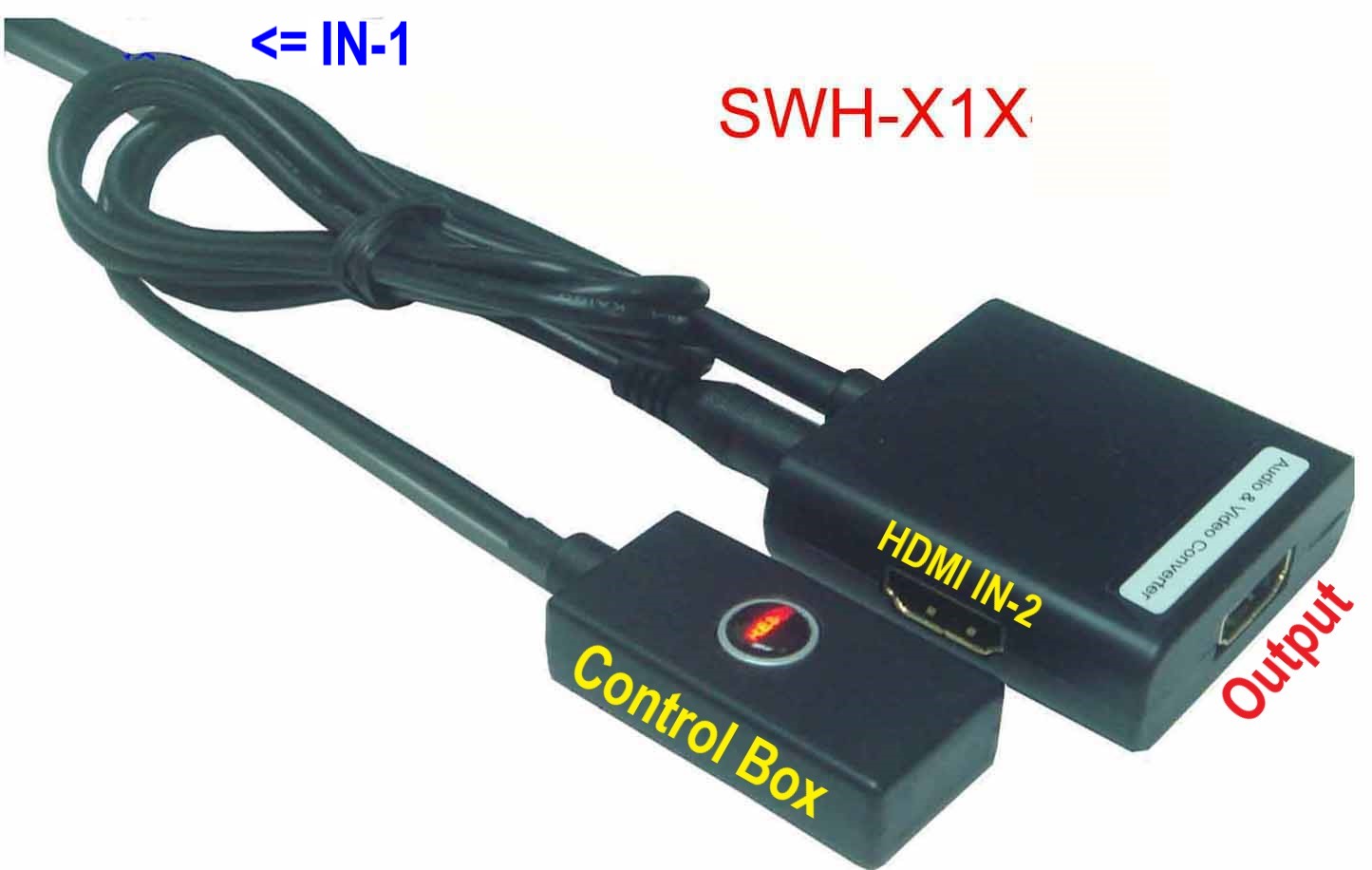

  • With Auto Skip Fuction. So. IN1- IN2 must input ,The Input port select by Control Box with LED indicate.

Compliant with DisplayPort 1.1
Programmable receiving equalization tocompensate PCB and/or connector losses
Integrated 50termination resistors for AC coupled differential inputs
Low Intra-pair and Inter-pair skews
Support full DisplayPort link training
Support DisplayPort all 4 levels of output
Support Dual Mode DP Source Repeater & HDMI/DVI Source Level Shifter
HDMI V1.4/DVI V1.0 Level Shifting
AC coupled TMDS level shifting operation up to 3 Gbit/s per lane (300 MHz character clock),
Support video format 4K x 2K
Disable feature to turn off TMDS inputs and outputs and to enter low-power state
DDC Level Shifting
Integrated DDC level shifting (3.3 V source side to 5 V sink side and vice versa)
Support up to 400 kHz clock frequency
DDC Buffer Support
Integrated DDC bufferfor HDMI cable adaptor or DVI cable adaptor application
Responds to DDC read to address 81h with predetermined ID
Feature enabled by pin DDET/HDMI_ID_EN
HPD Level Shifting
HPD non-inverting level shift from 0 V on the sink side to 0 V on the source side, from 5 V on the sink side
to 3.3V on the source side
Integrated 500 kpull-down resistor on HPD sink input guarantees ‘input LOW’ when no display is
ESD protection up to 3 kV
Transparent operation: no re-timing or software configuration required

SWH-511 / SWH-512 / SWH-515 With 5V USB Power Cable
