RJB-20-RT
(BNC / RJ- 45 / 11 / 12 Remote Tester)
RJB-20-RT-TX

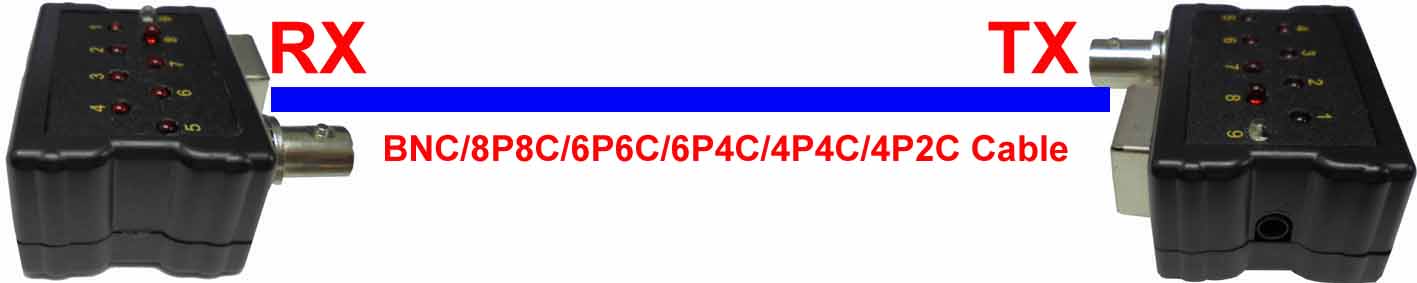

RJB-20-RT are BNC/RJ-45/RJ-11/RJ-12 Cable tester. RJB20T-TX
can send the singles throw BNC/RJ-45/RJ-11/RJ-12 cable to RJB20T-RX.
They are standard BNC/RJ-45 (8P8C)/RJ-11(6P6C)/RJ-12(4P4C) female to

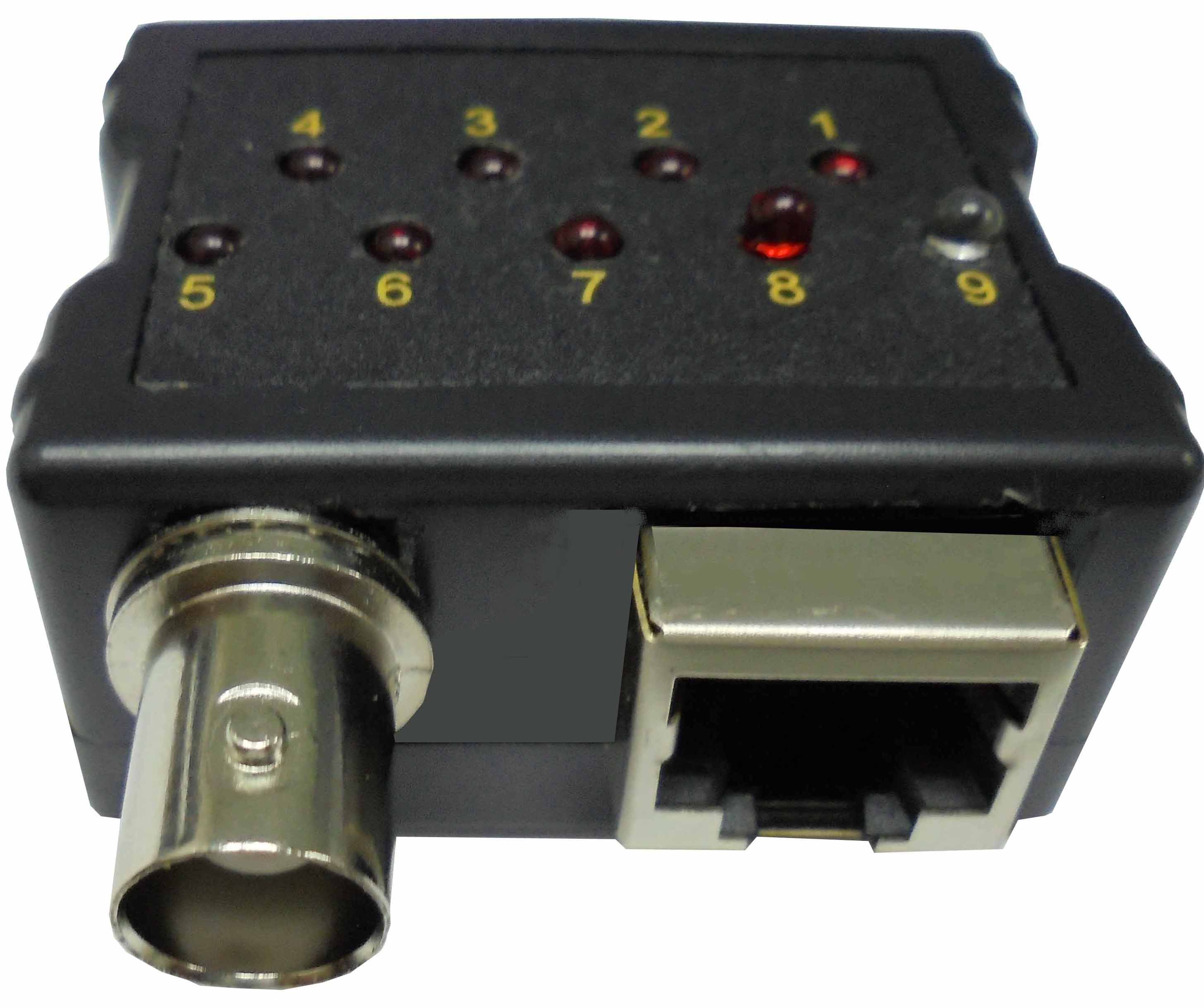

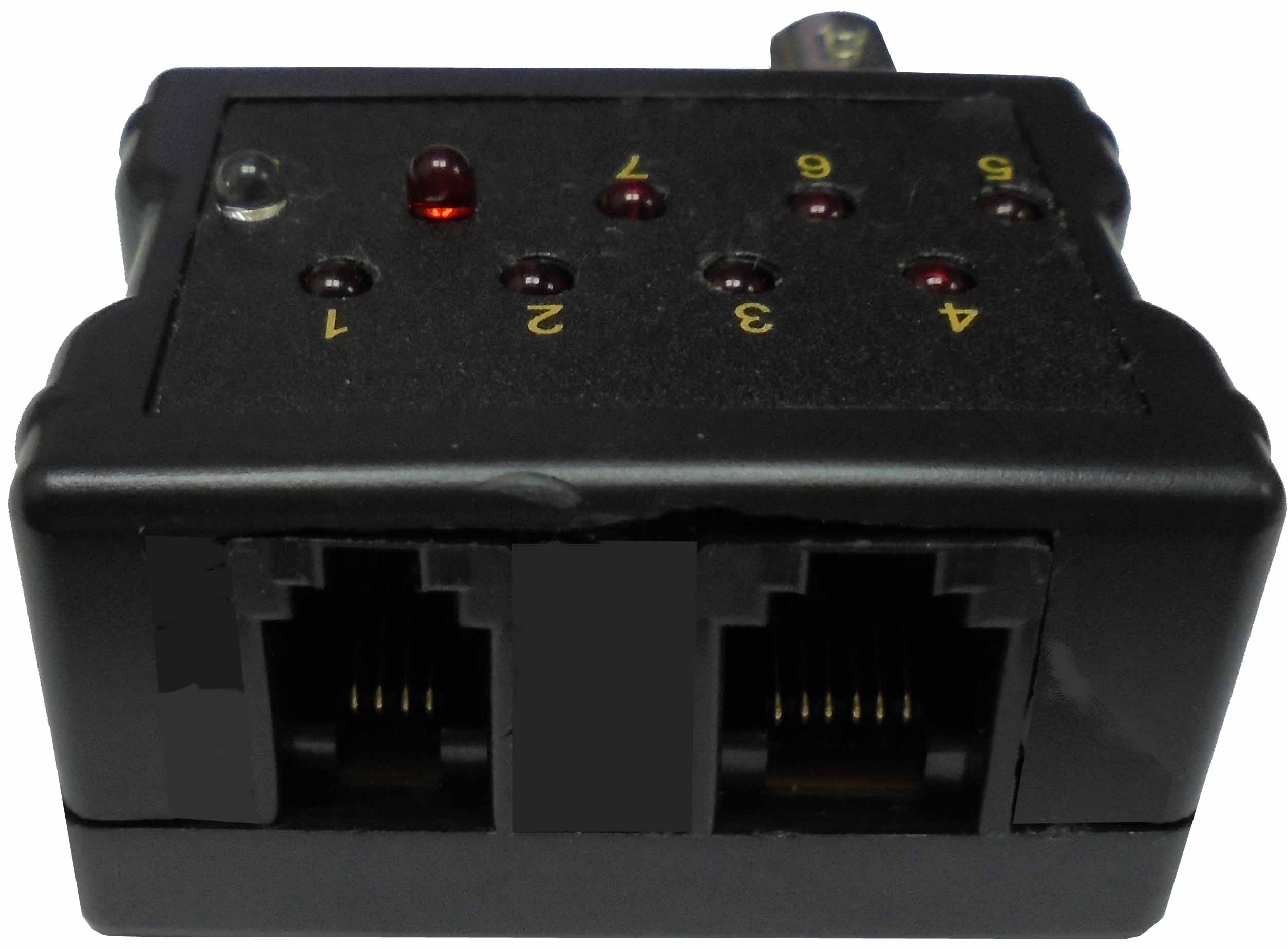

female cable tester. RJB20T-TX-RX with 9 pcs Red LED to display the
singles transfers.

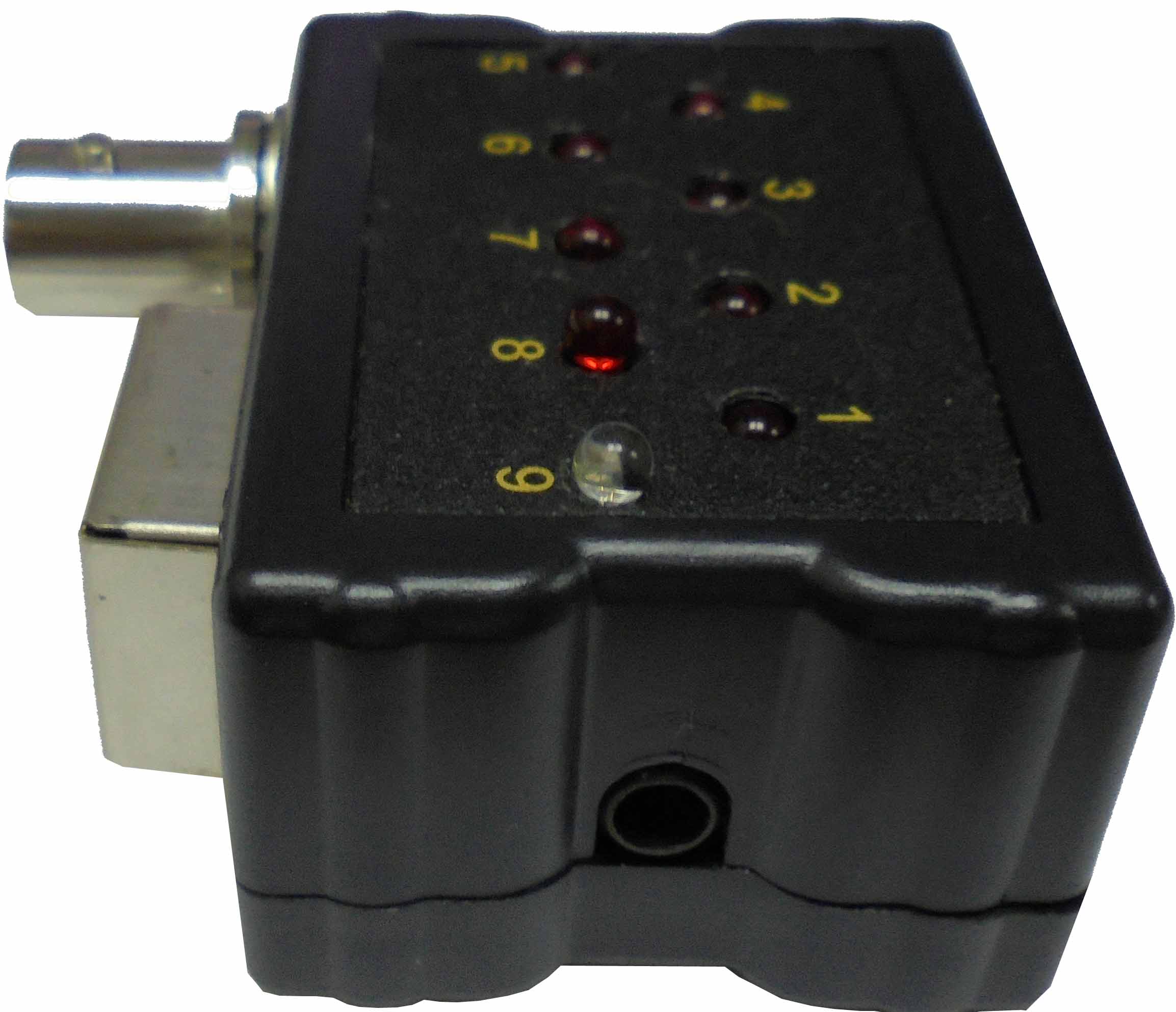

RJB20T-TX-RX needs power to worked
Power option a. 5V USB power cable
b:
Dry battery power bank (use the size “AA” 3 pcs)
|
RJB-20T-TX-RX
Signal Name |
BNC |
RJ45 (8P8C) |
RJ-11 (6PXC) |
RJ-12 (4PXC) |
|||
|
6P6C |
6P4C |
6P2C |

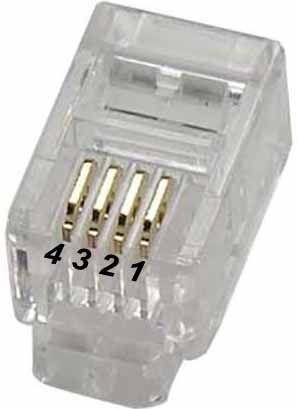

4P4C |
4P2C |
|||
|
1 |
|
1 |
1 |
|
|
1 |
|
|
2 |
|
2 |
2 |
2 |
|
2 |
2 |
|
3 |
|
3 |
3 |
3 |
3 |
3 |
3 |
|
4 |
|
4 |
4 |
4 |
4 |
4 |
|
|
5 |
|
5 |
5 |
5 |
|
|
|
|
6 |
|
6 |
6 |
|
|
|
|
|
7 |
|
7 |
|
|
|
|
|
|
8 |
|
8 |
|
|
|
|
|
|
9 |
9 |
9-Shell |
|
|
|
|
|
|
Test step : 1=>2=>3=>4=>5>6=>7=>8
9 for BNC or RJ-45 Shell tester. |
|||||||
