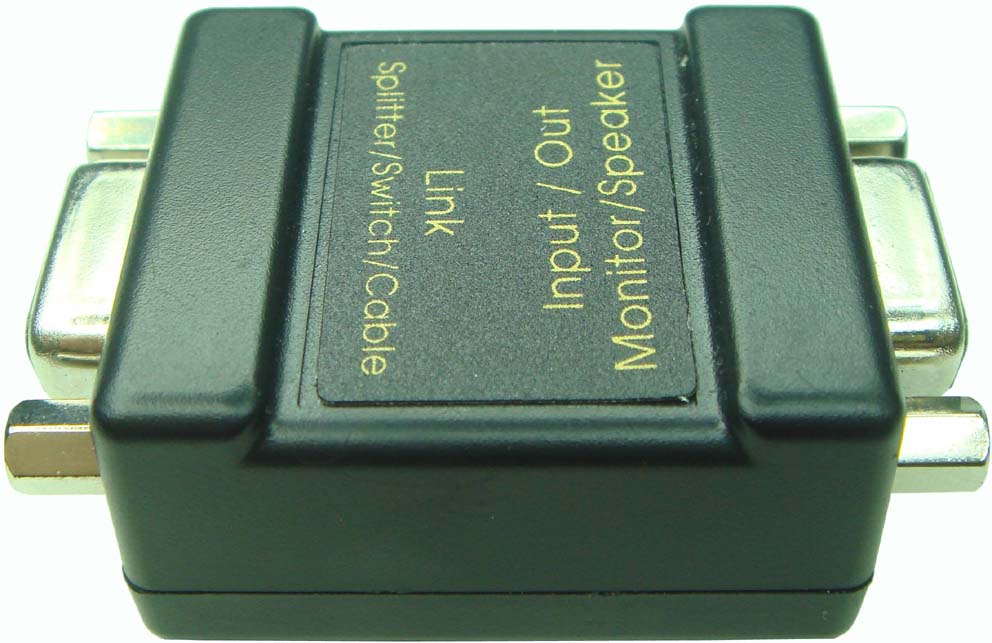

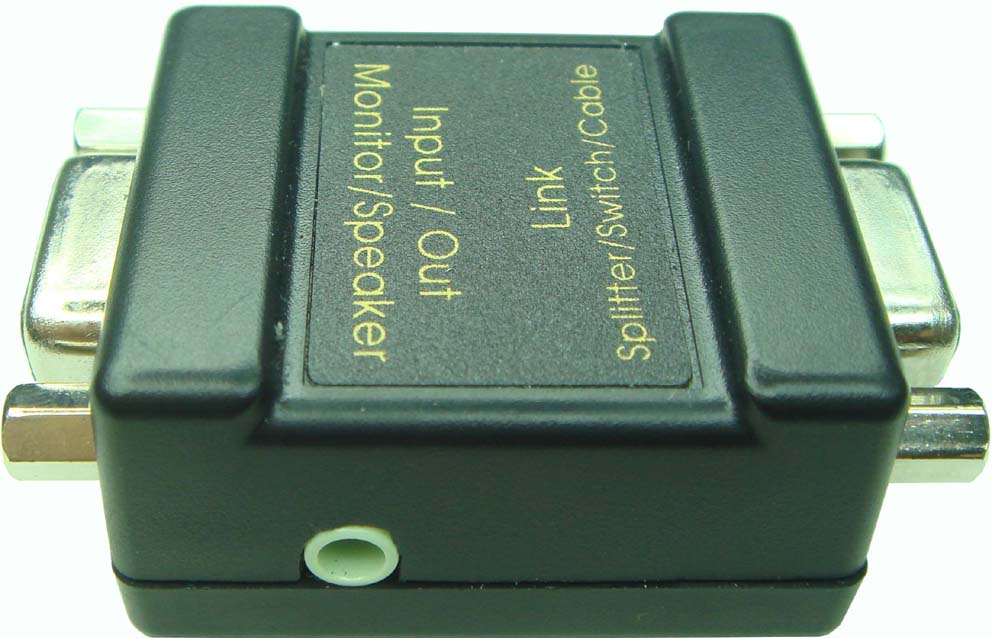

SVA-100 ( VGA-Audio Line extender Box)
Features Specification

VGA  & Audio line extender Box

2. In put / out put  : HD15/F *1  3.5 Audio jack

3. Link cable : UL2919 (3+4 , OR 3+6)

4. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 ) ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

5. With stereo audio  / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ

6. Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

7. Dimension : 53 * 36 * 21 mm  Weight :  31 g

8. Operating temperature : -0 TO 70 C

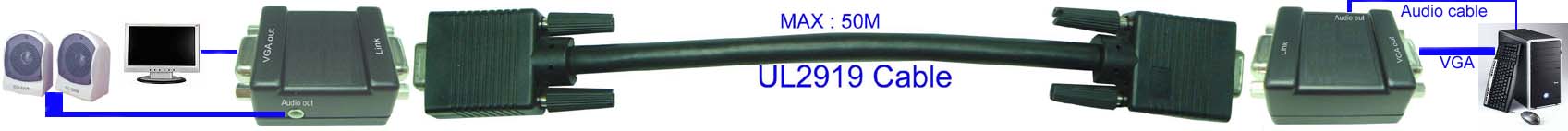

9. Extend distances : 50 M (Using UL-2919 Cable)

 Pin Assignment :

In  / Out             =>            Link

(Red)       : 1       =>   HD/15F - PIN 1

(Green)    : 2       =>   HD/15F - PIN 2

(Blue)       : 3       =>   HD/15F - PIN 3

(HSYNC)   : 13      =>   HD/15F - PIN 13

(VSYNC)   : 14      =>   HD/15F - PIN 14

(Audio/R ) : 12      =>   HD/15F - PIN 12

(Audio/L ) : 15      =>   HD/15F - PIN 15+ PIN 11

(GND)       : 11

GND         : Total HD/15F - PIN 5,6,7,8,10
