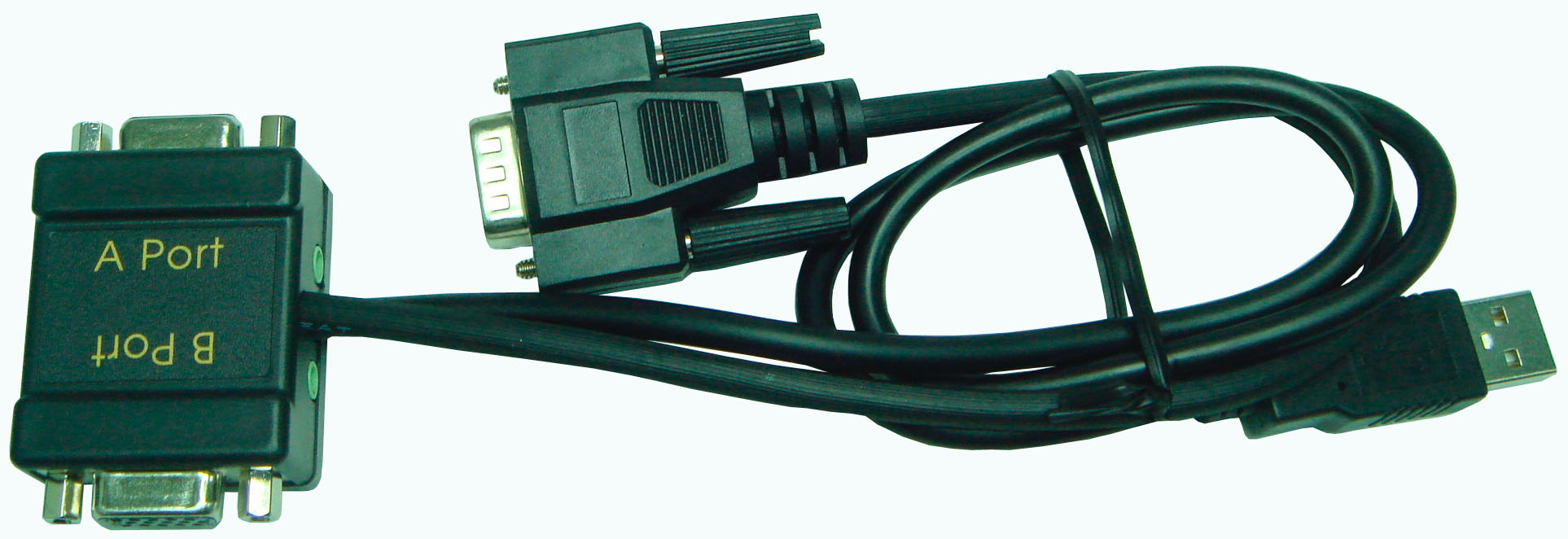

SVG-201 2 Ports VGA  Auto Interrupt Switch

 SVG-200 2 Ports VGA-Audio Auto Interrupt Switch (OEM)
Features
 Specification

1. 2 PC TO 1  VGA Monitors Auto Interrupt Switch

2. A Port PC interrupt Local PC Monitors

3. In Put 1 ( Local )     : HD15 / M - Cable + USB Power cable

    In Put 2 ( Remote ) : HD15 / F ( A port )

    In Put 2 ( A port ) connect to VGA splitter for Computer's Classroom

    Out put                   : HD15 / F  ( B port )

4. Power supply : DC 5V / 500MA (USB power code )

5. Working current :  50 MA

6. Remote PC auto control SVG201

7. Remote PC Power off that SVG201 display Local PC

8. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 )  ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

9. With stereo audio Switch / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ ( SVG - 200 only)

10. Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

11. Dimension : 53 * 36 * 22 mm Weight : 101g

Onboard VGA cable : 25cm ,Onboard USB cable : 50cm

Pin Assignment :

In put HD/15F  =>Out put VGA1 ~ VGA4 HD/15F

(Red)       : 1  =>  VGA1 ~ VGA4 HD/15F - PIN 1

(Green)    : 2  =>  VGA1 ~ VGA4 HD/15F - PIN 2

(Blue)       : 3  => VGA1 ~ VGA4 HD/15F - PIN 3

(HSYNC)   : 13 =>  VGA1 ~ VGA4 HD/15F - PIN 13

(VSYNC)   : 14 =>  VGA1 ~ VGA4 HD/15F - PIN 14

                 : 12 => DDC1 (B Port & HD-15M Cable)

                 : 15 => DDC2 (B Port & HD-15M Cable)

GND         : Total HD/15F - PIN 5,6,7,8,10,11

Suggest cable : UL2919 (3+4 , OR 3+6)

Operating temperature : -0 TO 70 C

Application :

1. Computer Classroom  2. Monitor system  3. Server monitor

4. Remote control system  5. Urgent A/V interrupt system
