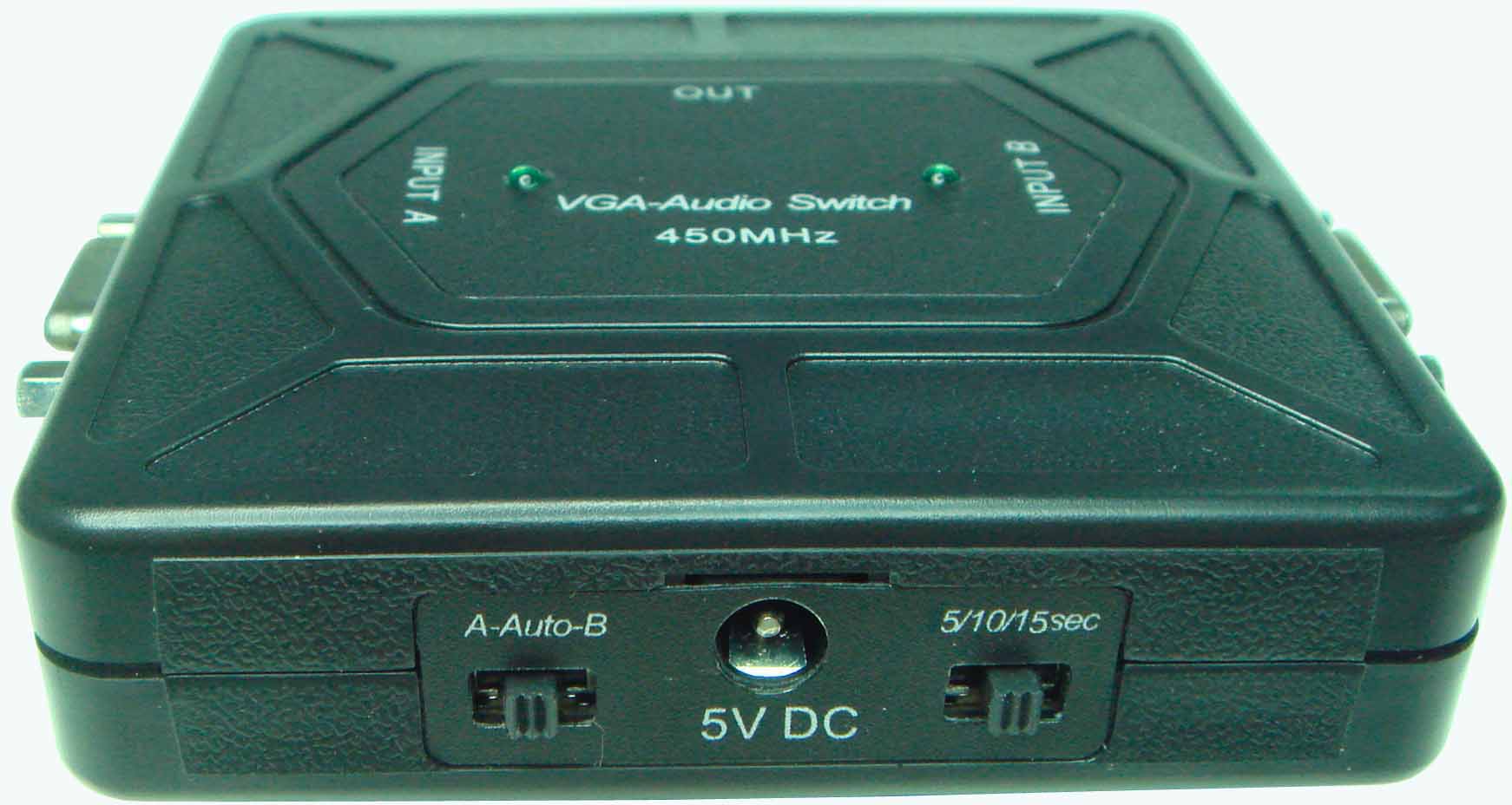

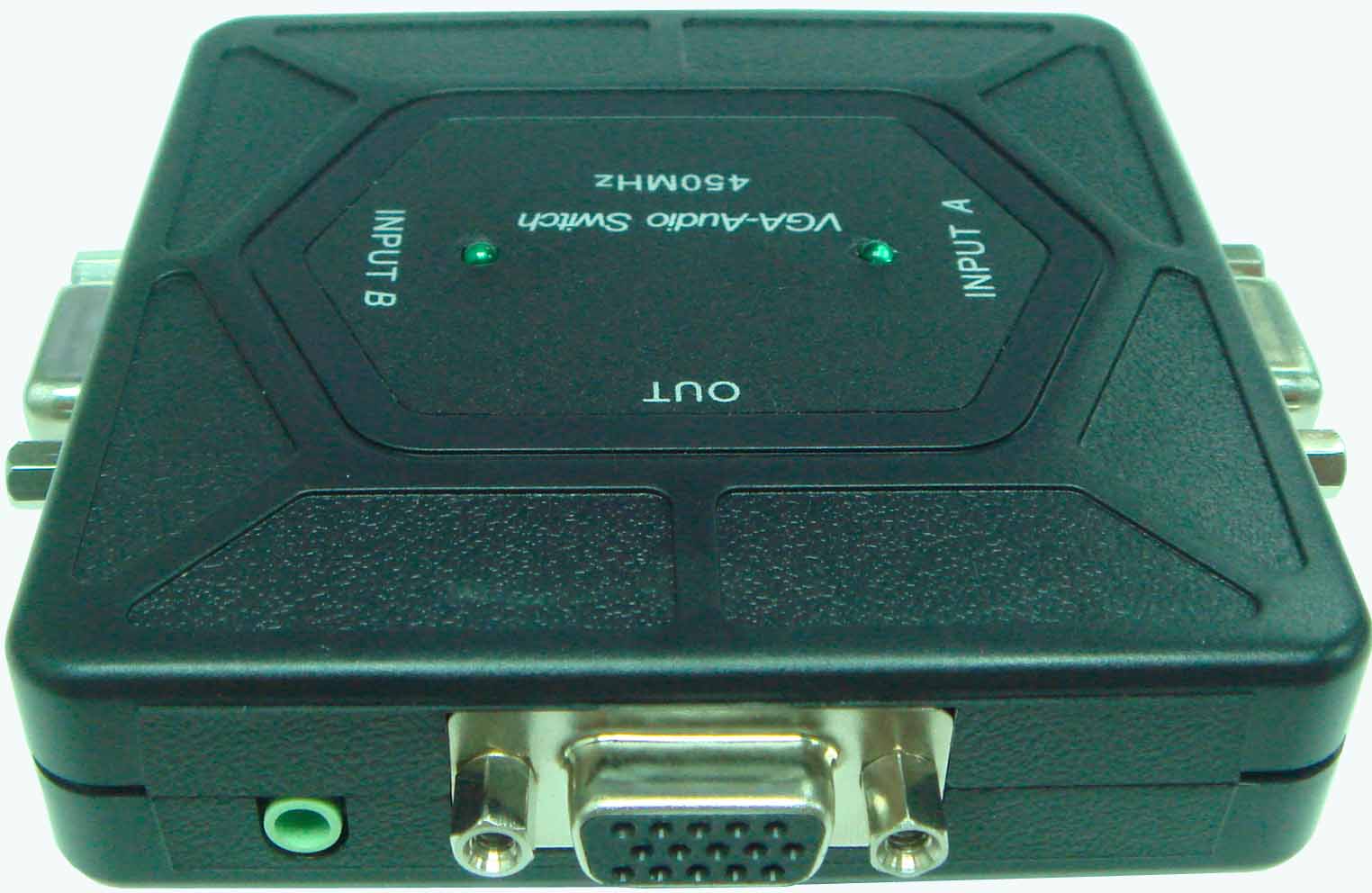

SVG-210-H  2 Ports VGA Switch      SVG-210-HA 2 Ports VGA-Audio Switch
Features Specification

SVG-210-H 2 PC TO 1  VGA Monitors switch

2. SVG-210-HA 2  PC TO 1  VGA Monitors &  Audio switch

3. In /Out put : HD15/F * 3 , 3.5 Audio plug * 3

4. Power supply :DC 5V / 500MA (switching adapter)

4. Working current :  150 MA

5. LED indicate : 2 (green) /  Function : Indicate  working CH

6. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 )  ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

7. With stereo audio Switch / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ

8. Audio out put : 0.5V~1.0V

9. Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

10. Dimension : 86 * 86 * 23 mm Weight : 95g

11. With time out select switch ( 5/10/15 second - OEM Option)

12. Microcontroller IC Auto control VGA & Audio out put

13. With manual & auto switch select working mode

14. Auto detected PC Power on/off

Pin Assignment :

In put HD/15F  =>Out put VGA1 ~ VGA4 HD/15F

(Red)       : 1  =>  VGA1 ~ VGA4 HD/15F - PIN 1

(Green)    : 2  =>  VGA1 ~ VGA4 HD/15F - PIN 2

(Blue)       : 3  => VGA1 ~ VGA4 HD/15F - PIN 3

(HSYNC)   : 13 =>  VGA1 ~ VGA4 HD/15F - PIN 13

(VSYNC)   : 14 =>  VGA1 ~ VGA4 HD/15F - PIN 14

                 : 12 =>  NC

                 : 15 =>  NC

GND         : Total HD/15F - PIN 5,6,7,8,10,11

Packing list : 1. Color box  2. USB Power cable  3. SVG210-A

Suggest cable : UL2919 (3+4 , OR 3+6)

Operating temperature : -0 TO 70 C

 Extend distances : 50 M (Using UL-2919 Cable)
