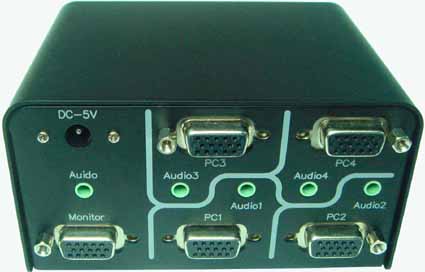

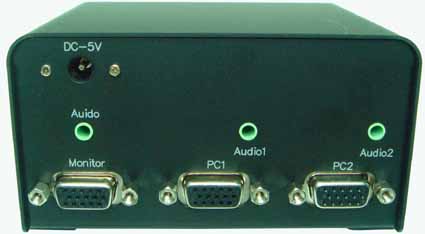

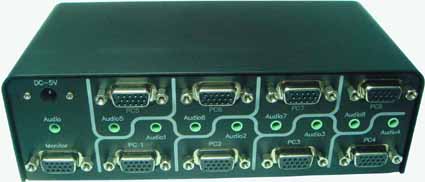

SVG - 210 / 410 / 810    2 / 4 / 8 Ports VGA-Audio Auto Switch
Features
 Specification

2/4/8 PC TO 1  VGA Monitors &  Audio switch

2. In /Out put : HD15/F * 3/5/9 , 3.5 Audio plug * 3/5/9

3. Working current :  250 mA / 350 mA / 500mA

4. LED indicate : On line & Selected

5. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 ) ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

6. With stereo audio Switch / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ

7. Audio out put : 0.5V~1.0V

8. IR Remote control

9. Microcontroller IC Auto control VGA & Audio out put

10. With Auto skip function

11. Auto detected PC Power on-Line

12. Support DDC Mode

Pin Assignment :

In put HD/15F  =>Out put VGA1 ~ VGA4 HD/15F

(Red)          : 1  =>  VGA1 ~ VGA4 HD/15F - PIN 1

(Green)       : 2  =>  VGA1 ~ VGA4 HD/15F - PIN 2

(Blue)         : 3  => VGA1 ~ VGA4 HD/15F - PIN 3

(HSYNC)     : 13 =>  VGA1 ~ VGA4 HD/15F - PIN 13

(VSYNC)     : 14 =>  VGA1 ~ VGA4 HD/15F - PIN 14

11 / 12 / 15  :     =>  11 / 12 / 15   ( DDC PIN )

GND : Total HD/15F - PIN 5,6,7,8,10

Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

Dimension :

                   SVG210/410 :  109 * 85 *63.5 mm    Weight : 352g / 392g

                   SVG810       : 179 * 85 *63.5 mm    Weight : 750g

Power supply : DC 5V
