The SWH-T-122 is generation 2 in/2 out port
HDMI/DVI splitter & switch which can repeat one HDMI/DVI signal to 2
HDMI/DVI signal sets, support up to 2 different HDMI/DVI
receiving/display terminals. Based on Cleared Edge™technology, it
supports up to 3.4Gbps data rate per channel, compliant with the
HDMI 1.3 / 1.4 specifications. The device incorporates a pair of ODTs, an adaptive equalizer and a CDR circuit on each data channel
of receiver side, and a de-emphasis driver with optional back
terminations on each data channel of transmitter side. The clock
channel feeds a high-performance PLL that regenerates a low jitter
output clock for data recovery. The SWH-T122 process HDCP
decryption / encryption and transmits the data to 2 HDMI/DVI
ports. The HDCP repeater engine in SWH-T122 handles
all the processing required by authentication, decryption and
encryption in hardware. This greatly reduces the external MCU
overhead and firmware complexity. However, for more flexibility,
the SWH-T122 also provides an option of software-controlled
mode in which HDCP operations are entirely controlled by external
MCU. Pre-programmed HDCP key sets ease the use of HDCP function.
However, users can also use external key sets through the ESCL /
ESDA port. The SWH-T122 integrates EDID shadow RAM for
better compatibility and reduced system complexity. Embedded EDID
is accessible to the upstream port before the real EDID is loaded
by the external MCU. Fabricated in an advanced CMOS process, the
HDM220 is provided specified over the 0°C to +70°C
temperature range.
|
|
Pin 1 |
TMDS Data2+ |
Pin 11 |
TMDS Clock Shield |
|
Pin 2 |
TMDS Data2 Shield |
Pin 12 |
TMDS Clock– |
|
Pin 3 |
TMDS Data2– |
Pin 13 |
CEC |
|
Pin 4 |
TMDS Data1+ |
Pin 14 |
Reserved (N.C. on device) |
|
Pin 5 |
TMDS Data1 Shield |
Pin 15 |
SCL |
|
Pin 6 |
TMDS Data1– |
Pin 16 |
SDA |
|
Pin 7 |
TMDS Data0+ |
Pin 17 |
DDC/CEC Ground |
|
Pin 8 |
TMDS Data0 Shield |
Pin 18 |
+5 V Power |
|
Pin 9 |
TMDS Data0– |
Pin 19 |
Hot Plug Detect |
|
Pin 10 |
TMDS Clock+ |
|
|
- HDMI 1.3/1.4 specifications
compliant
Support 2K/4K extended resolution formats
up to 3.4Gbps data rate
- Adaptive equalization and de-emphasis
to compensate long cable losses
- ODTs and calibration
- Integrated HDCP repeater engine
compliant with HDCP 1.3 specification
- Fully hardware-controlled or optional
software-controlled HDCP operations
- Pre-programmed HDCP key sets
- Integrated CEC controller
- Integrated EDID shadow RAM and
embedded EDID
- 5V-tolerant DDC interfaces

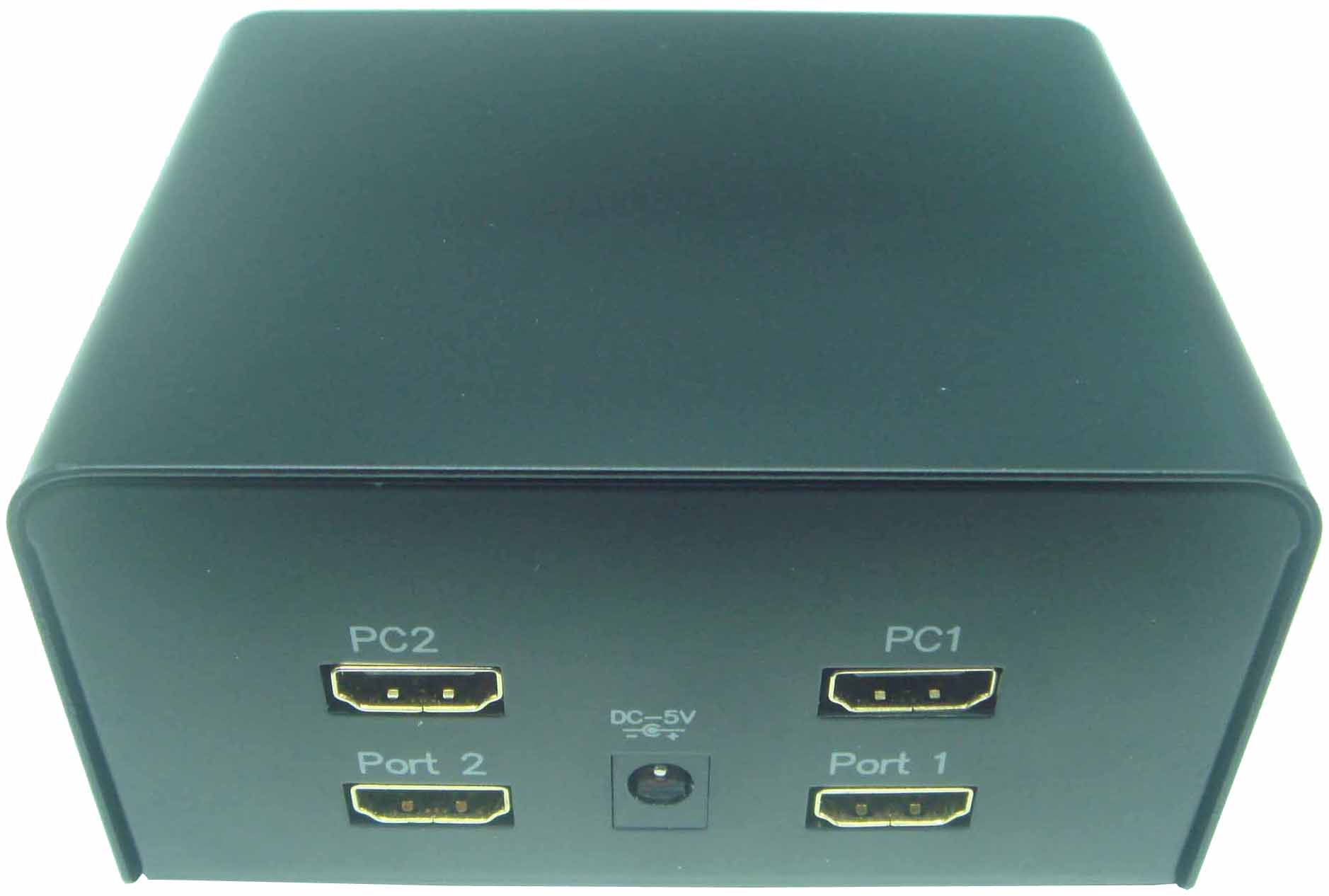

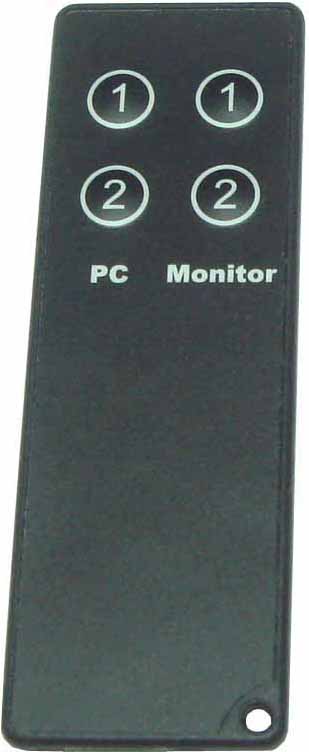

- 2 HDMI input port, up to 2
HDMIoutput ports
- Unlimited cascading for more output
ports or signal repeating
- Multiple display / TV support
- 2 ports HDMI signal splitting &
switch
- With Power Saving
-
Dimension :
SWH-T122 : 109 * 85 *63.5 mm
Weight :
392g
-
Power supply :
DC
5V

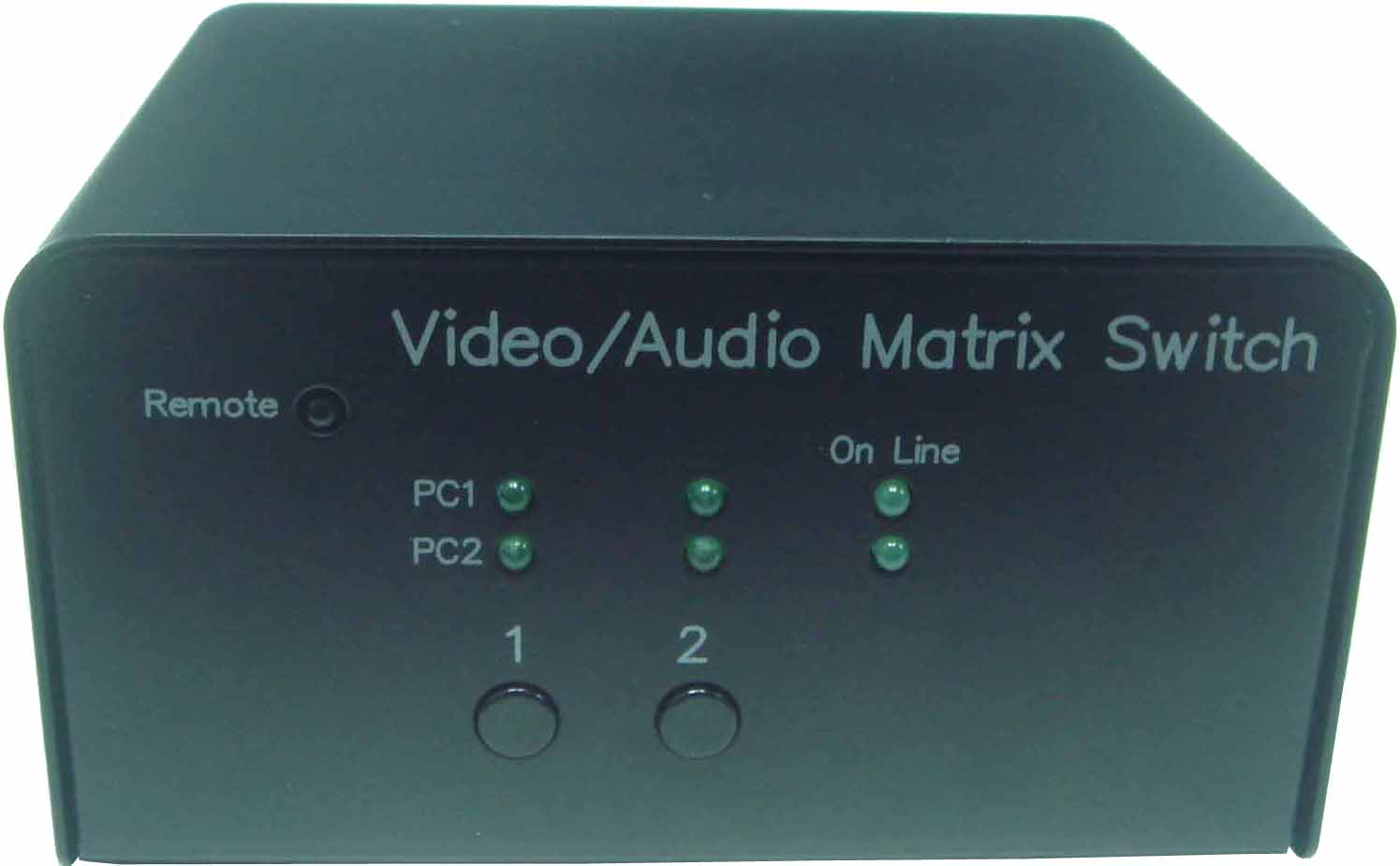

- With Monitor online display LED
-
Working current :
SWH-T-122
- 5V
/ 450mA
|
