RS-422<=>RS485
Features & Specification
TEST-
The TUM485 is a USB RS-422-485 Feedb
-
Bus powered - FTDI Chipset
-
Standard USB TO RS-422/485 Adapter
-

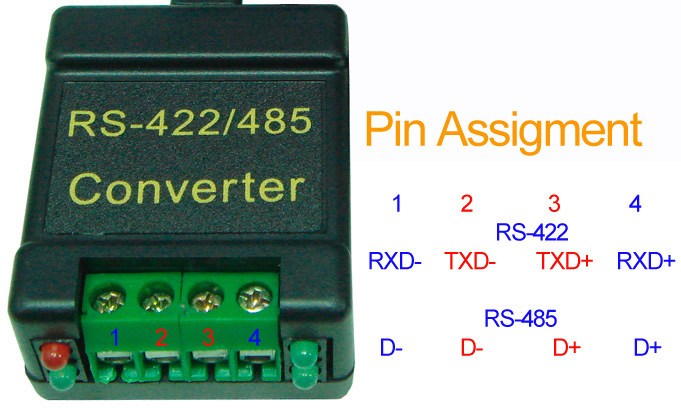

With 4 pin Terminal Connector
-
RS-485 with 120R terminator resister (option by user)
-
Easy to install , Plug & Play
-
Stander RS-422 / 485 Port support
-
RS-485 data transfer hardware (TXDEN) auto control.
-

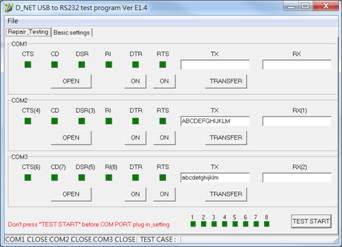

Tester program support software (DTR /RTS) control
-
Fully compliant with USB Spec.
-
For Win-98/se/me , Win-XP / Win - 7 / 8 / 10
-

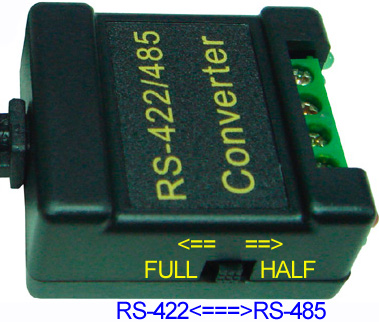

With 422/485 selector switch
-

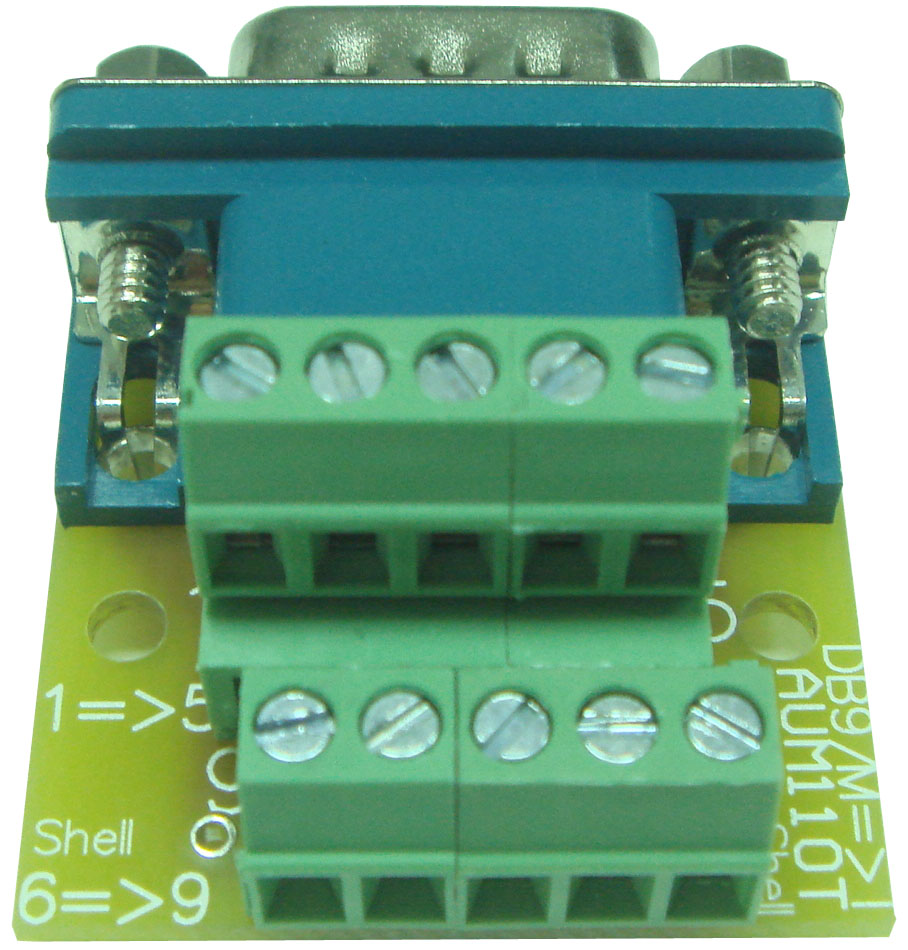

With DB9/F & DB9/M 10 Pin - Terminate Platform for RS-422 / 485 DB-9 Cable.
-
Housing : Plastic
-
Weight : 105g
-
Dimensions (L*W*H) : 45 * 35 * 21 ( mm ) body
-
Length : 1m ( USB cable )
Basic setting:
1.
Port
1 select / COM1~64 port
default value:COM1
2.
Port
2 select / COM1~64 port
default value:COM2
3.
Port
3 select / COM1~64 port
default value:COM3
4.
Test
Timing: 0.1 ~1 sec.
default value:0.5mSec
5. Data rate: 1200 to 512 K bps. default value:115200
