UBC-31CT ( USB-Type C Cable Tester )
Power supply :USB Power cable/Battery Box of 3AA*3/AC Adapter (option)
Features & Specification Test - Table
  • UBC-31CT is Cable Tester of USB Type C
  • With Auto & manual mode
  • Support C to C / C Wire / C to PCB / C to U3-A / C to U3-B / C to U3-Micro
  • With MCU send test singal
  • DC 5V Power required
  • Test cable Open & Short.  Open / Short : LED display is NG.
  • Easy to install , Plug & Play
  • Compact size
  • Housing : Plastic,
  • Weight : 30g
  • Dimensions (L*W*H) : 72 * 51 * 21 ( mm )
  • Power jack: Pin size -OD:3.5mm / ID:1.3mm

    Cable Tester : Auto Scan (ONLY OPEN / Short Tester)

     1.  Type-C-M to Type-C-M                  CN2óCN3

            (NO Support E-MARCK & CHARGE CABLE)

    2.     Type-C-M to USB2.0~3.1-A-M            CN2óU3-A

    3.     Type-C-M to USB2.0~3.1 B-M            CN2óU3-B

    4.     Type-C-M to USB2.0~3.1 Micro B-M      CN2óU3-MB

    ·       Cable Tester :Manual Tester (Tester pin –CN1 PIN PAD)

    1.     Type-C-M to Type-C-M                   CN1óCN3

    2.     Type-C-M to USB2.0~3.1-A-M             CN1óU3-A

    3.     Type-C-M to USB2.0~3.1 B-M             CN1óU3-B

    4.     Type-C-M to USB2.0~3.1 Micro B-M       CN1óU3-MB

     ·       USB Wire Tester : Manual Tester (Tester pin –USB Wire or PCB w/USB Wire)

    1.     Type-C Wire or PCB W/ Type-C Wire       CN3ó Wire / PCB

    2.     Type-C-M to USB2.0~3.1-A-M              U3-Aó Wire / PCB

    3.     Type-C-M to USB2.0~3.1 B-M              U3-Bó Wire / PCB

    4.    Type-C-M to USB2.0~3.1 Micro B-M        U3-MBó Wire / PCB

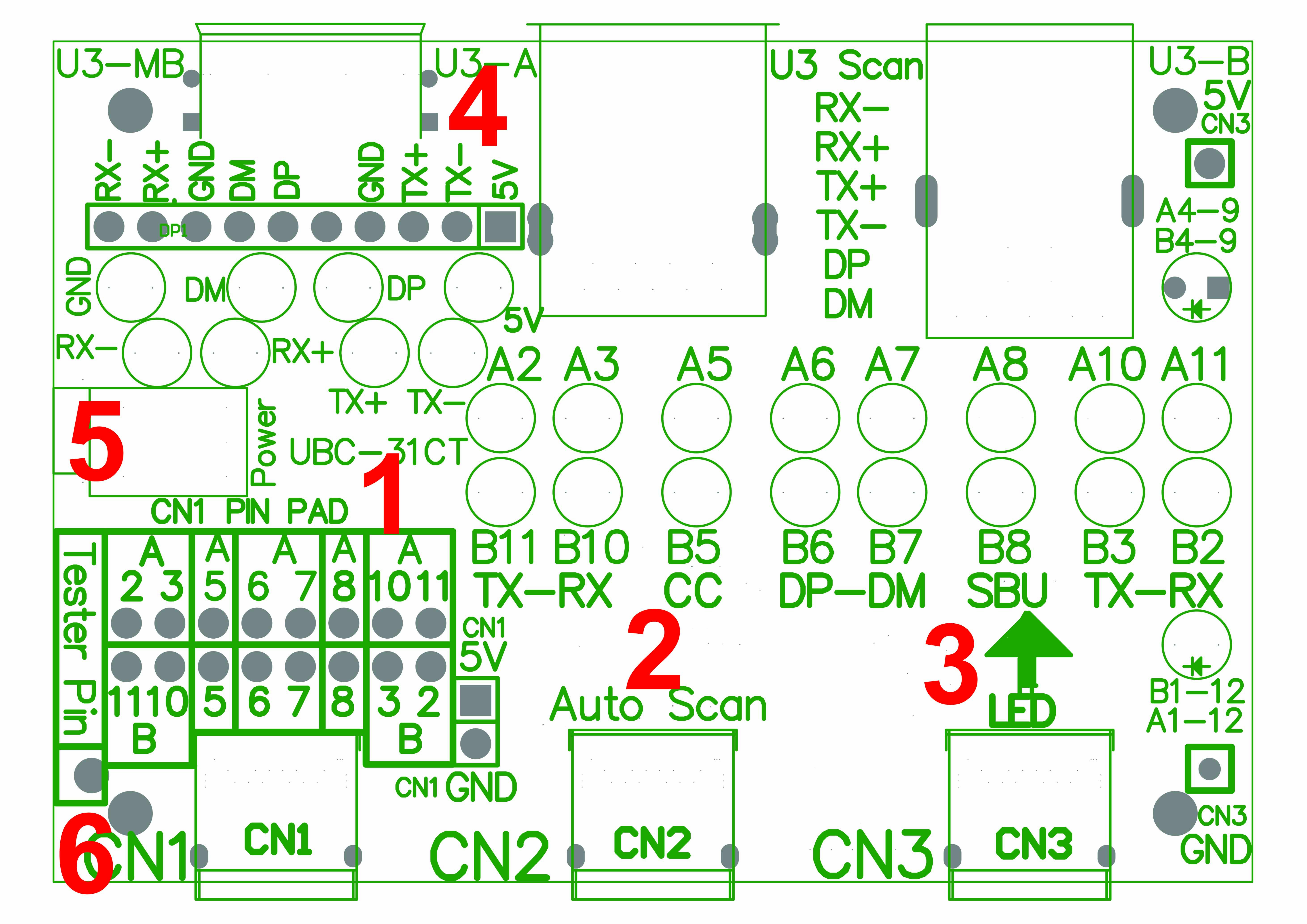

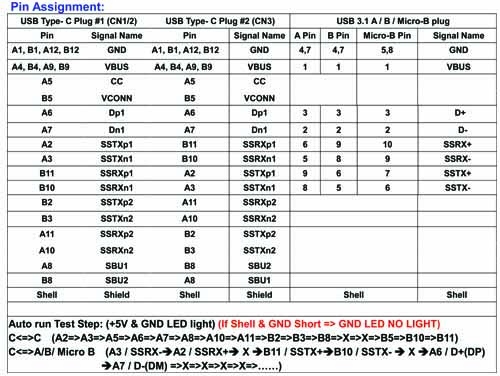

UBC31-CT with 6 Block:

1. CN1 PIN PAD (CN1 óPAD => PIN to PIN).

2. CN2 Auto Scan: A2~B11 send scan signal.

3. CN3 LED display (CN3 óPAD => PIN to PIN)

4. U3 PIN PAD & LED

5. 5V Power in put

6. Tester Pin: Support 5V/10mA LED Power

     (Tester Pin Short to GND is safe)
