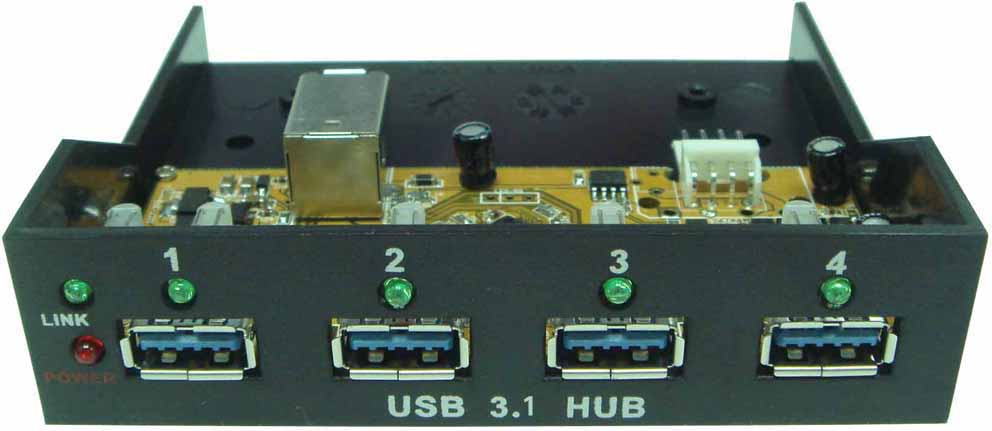

UHB-300-I-3 ( USB3.1 (5G/10G) 4 ports Internal HUB)
Features Specification
  • Complies with Standard USB1.1 / USB 2.0 / USB3.0 and USB 3.1 specifications
  • Support Super-Speed 10G / 4.8Gbits / sec, Hi-Speed 480,Full-Speed 12 and Low Speed 1.5 Mbits / sec data transfer speeds
  • Supports Plug-and-Play installation
  • Over current protection on each port
  • Auto detect speeds and connections of device
  • Tiered star topology supporting up to 5 tiers and 127 devices , no cable segment exceeding 3~4.5 meters .
  • Support Self-power mode
  • 4 USB external Ports up to 900mA (Self power mode)
  • Per Port Status LED indicators
  • Weight : 3.5"- 60g / 5.25"-125g
  • UHB300-I-3 With 3.5" disk internal case
  • UHB300-I-5 With 3.5"+ 5.25" disk internal case (Option)
  • UHB300-I-3 Dimensions (L*W*H) : 101 * 90 * 25mm
  • UHB300-I-5 Dimensions (L*W*H) : 148 * 140 * 43mm
Ports 4
USB rev. 3.1/3.0/2.0/1.1
LEDs Bus power Green
Self power  Red
Ports Green * 4
Connectors Downstream 4 USB3.1 A-Type Female
Upstream 1 USB3.1 B-Type Female
Power PC 5V Power (4 P power's head)
Driver Support Windows 98/SE/2K/ME/XP/Win-7/8/10, MAC OS X
Power Consumption DC 5V/4.0A
Power Mode Self
