The URP300/400/500 Extend Your USB device past the 5/10/20/50 meters limit . Up to 4 / 2 /1 of the USB Extension cable be chained together to extend the distance to your USB peripheral or bridge cable to over 50 meters.
- USB2.0 5/10/20/50M Active cable
- One standard USB port (4-pin) and has the symbol
- URP500-50M Extend cable with extra power hall
- With LED indicated working
- Windows 98,98se, xp, 2000,Vista,7,8.10 Support
- Support Mac 8.6 up for USB1.1 /2.0
- Plug & Play
- Bus power mode
- Support OHCI & EHCI mode
- Compliant with USB specification 1.1 , 2.0
- USB A/M TO USB A/F ,
- Cable Length : URP200/300/400/500 5M/10M/20M/50M
- USB2.0 Stander 20# / 28# USB Cable
- Extend length : UP 50M
- Weight : URP200 250g / URP300 500g / URP400 1000g / URP500 2350g
-
Specification :
-
You use the USB 2.0 Active cable, make sure your computer is USB2.0 support
-
If your system only support the USB1.1 the active cable only support USB1.1
-
URP200 Active power :0.2W / 3.3V / 65ma Support under 4.5V / 400Ma Device (1.8W)
-
URP300 Active power :0.2W / 3.3V / 65ma Support under 4.5V / 400Ma Device (1.8W)
-
URP400 Active power :0.4W / 3.3V / 120ma Support under 4.1V / 300Ma Device (1.2W)
-
URP500 Active power :0.8W / 3.3V / 240ma Support under 3.6V / 100Ma Device (0.3W)
-

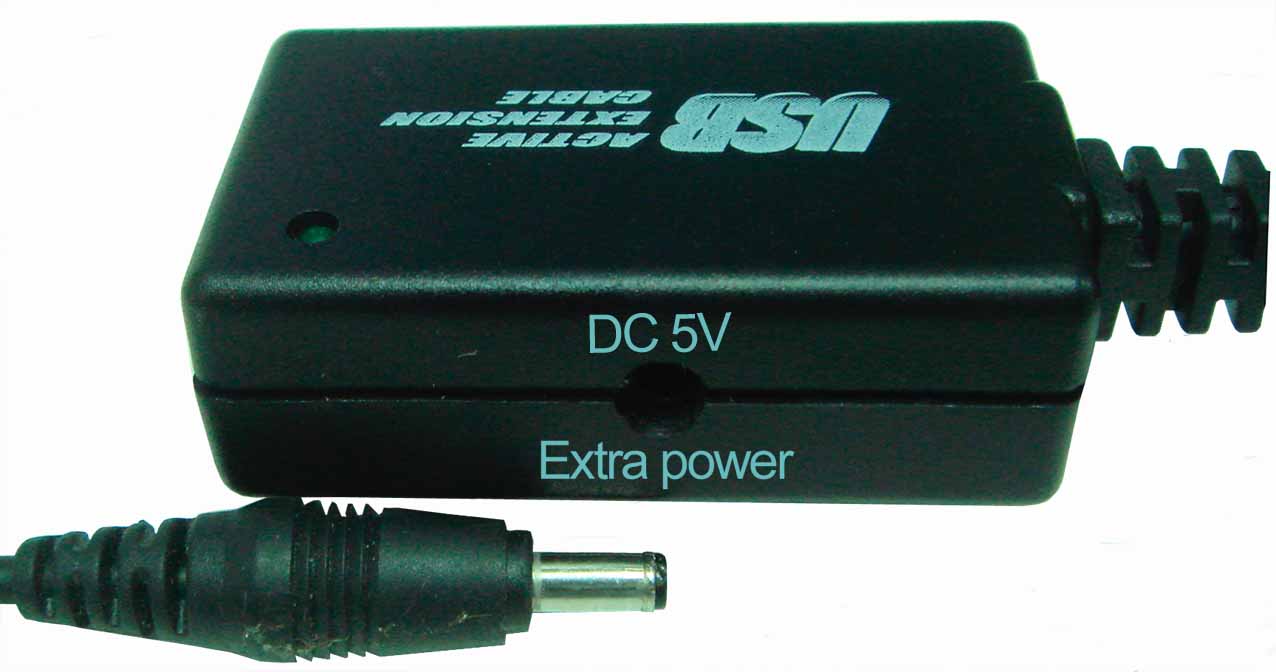

URP500 Extra power : DC 5V / 1~2A (Option)
-
Extra power plug : Inner ( + )1.35mm / Outer ( - ) :3.5mm
-
Plug length ( metal part ): Min 9mm
