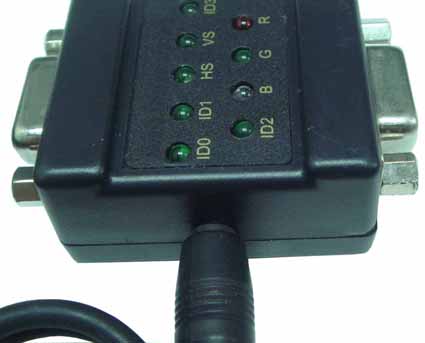

VGA-20CT ( HD-15 Cable Tester )
Power supply : 1. USB Power cable  2. Battery-3*3A 3. AC Adapter (option)
Features & Specification
HD15-F  Pin assignment
  • DC 5V Power required
  • With  HD15/F & HD15-/F Connectors (HD-15M/M Cable Tester)
  • Standard HD-15 Cable Tester
  • Fit UL2919 (3+4) or (3+6) cable test
  • With HD15M/M mini changer - (HD-15M/F Cable Tester)
  • HD-15 Cable full pin test
  • LED scan HD15 1~15 pin (HD15 Cable must With shield)
  • LED display test result
  • Test cable Open & Short
  • Open /  Short : LED NO Light
  • Easy to install , Plug & Play
  • With 5V / 3.5mm power jack (Inner + / Outer -)
  • With 5V USB power cable
  • Power jack :Center pin / 1.3mm
  • With 3 colors LED appeared
  • Compact size
  • Support plug & play
  • Housing : Plastic,
  • Weight : 55g
  • Dimensions (L*W*H) : 45 * 35 * 21 ( mm )    body

  • Pin Assignment :

  • HD15 Signal Text LED-Color Test
    1 Red R Red 1-R / 6-RG
    2 Green G Green 2-G / 7-RG
    3 Blue B Blue 3-B / 8-BG
    4 ID2 ID2 Green ID2 / GND
    11 ID0 ID0 Green ID0 / GND
    12 ID1 ID1 Green ID1 / GND
    13 HSYNC HS Red 13-HS / Shield
    14 VSYNC VS Red 14-VS / Shield
    15 ID3 ID3 Green ID3 / GND
    6 RG 1-R / 6-RG
    7 GG 　 2-G / 7-GG
    8 BG 　 3-B / 8-BG
    5/10 GND 　 ID0/ID1/ID2/ID3
    Shield Shield 　 HS/VS
    9 NC 　 　

    Test step : R=>G=>B=>ID2=>ID0=>ID1=>HS=>VS=>ID3
