VGA-20RT- RX+TX
- VGA-20RT

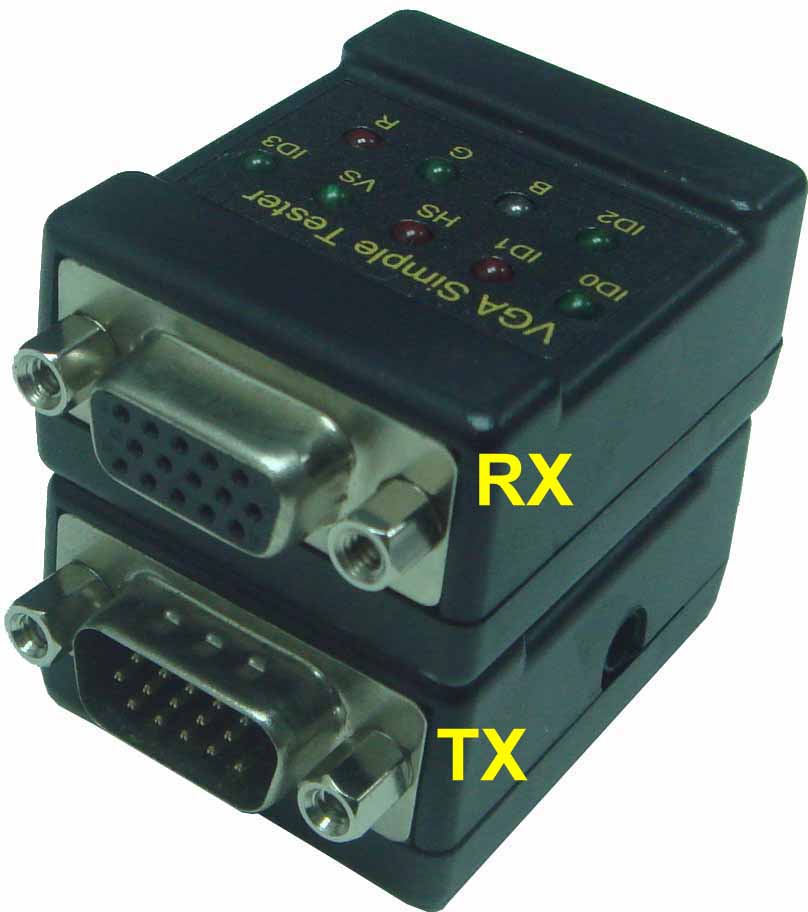

It is the long distance TX-RX cable tester. It contains Transmitter (TX) and Receiver (RX) tester.
-
The TX is VGA data transfer for the RX, and the TX can send the singles throw UL2919 Cable to the RX. It is standard HDD15 M/F or M/M cable tester. It uses the LED to display the singles transfers.
-
Remark:
-
1. Max. distance of cable :30 meter
-
2. TX needs power to worked
-
Power - a: 5V USB power cable
-
b: Dry battery power bank (use the size “AA” 3 pcs) (Battery Not Included in Package)
-
c: AC to DC Adapter (5V, 2A) – option
-
3. UL2919 cable must to have the shield. If UL2919 cable is without shield, the blue LED of tester is “NG”. Fit UL2919 (3+4) or (3+6) cable test.
-
4. If UL2919 cable has the “OPEN” or “ SHORT” , the LED of tester is “NG”
- Easy cheek data transfer & receiver
- Compact size
- Support plug & play
- Support : over 1920*1080
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 45 * 35 * 21 ( mm ) body
|
HD15 |
Signal |
Text |
LED-Color |
Test |
|
1 |
Red |
R |
Red |
1-R / 6-RG |
|
2 |
Green |
G |
Green |
2-G / 7-RG |
|
3 |
Blue |
B |
Blue |
3-B / 8-BG |
|
4 |
ID2 |
ID2 |
Green |
ID2 / GND |
|
11 |
ID0 |
ID0 |
Green |
ID0 / GND |
|
12 |
ID1 |
ID1 |
Green |
ID1 / GND |
|
13 |
HSYNC |
HS |
Red |
13-HS / Shield |
|
14 |
VSYNC |
VS |
Red |
14-VS / Shield |
|
15 |
ID3 |
ID3 |
Green |
ID3 / GND |
|
6 |
RG |
|
1-R / 6-RG |
|
|
7 |
GG |
|
2-G / 7-GG |
|
|
8 |
BG |
|
3-B / 8-BG |
|
|
5/10 |
GND |
|
ID0/ID1/ID2/ID3 |
|
|
Shield |
Shield |
|
HS/VS |
|
|
9 |
NC |
|
|
|
|
Test step : R=>G=>B=>ID2=>ID0=>ID1=>HS=>VS=>ID3 |
||||
