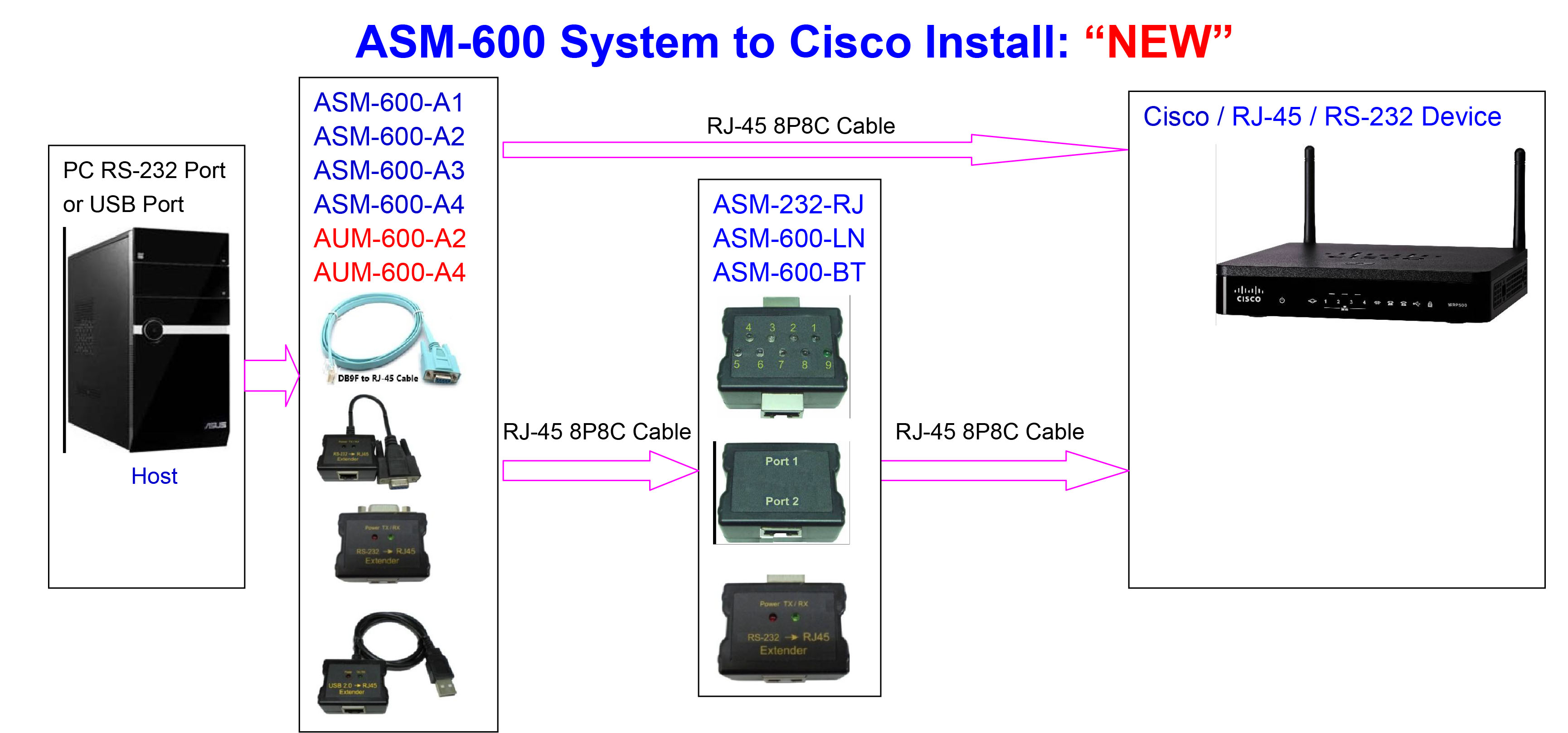

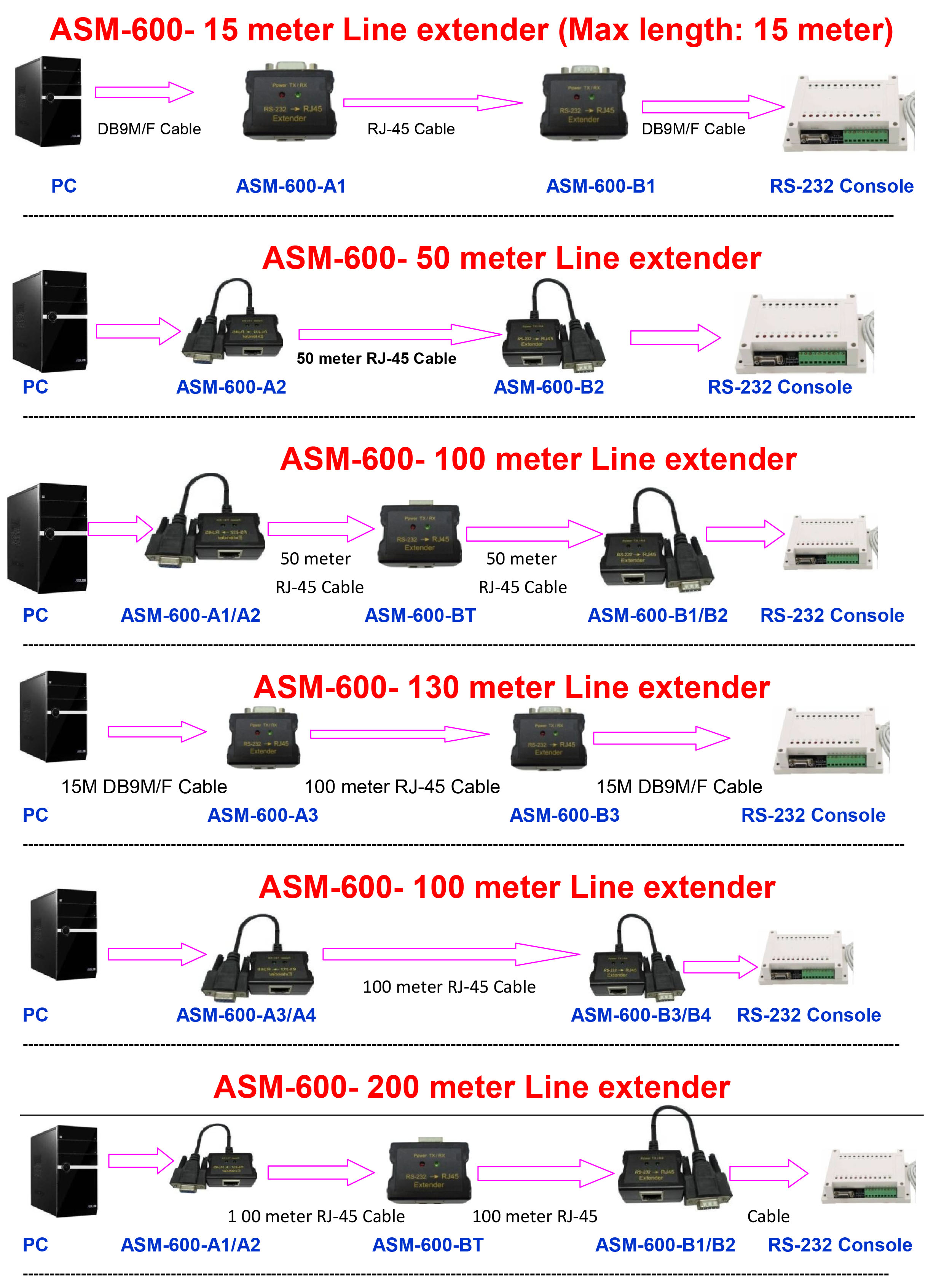

ASM(AUM)-600-XX (See the System Application) / ASM-600 For Cisco

ITEM

Connecter

Function

Description

ASM-232-RJ

RJ-45 <=> RJ-45

Extender

RJ-45 Extender W/TX-RX-DSR-DTR-CTS-RTS LED

ASM-600-LN

RJ-45 <=> RJ-45

Extender

RJ-45 Extender

ASM-600-BT

RJ45 => RJ-45

Booster

RJ-45 Extender W/TX-RX-DSR-DTR-CTS-RTS LED

ASM-600-A1 / ASM-600-B1

DB9-F <=>  RJ-45 <=>DB9-M

Converter

DB9-F <=> RJ-45 <=>DB9-M-CConverter w / TX-RX LED

ASM-600-A2 / ASM-600-B2

DB9-F-C <=> RJ-45 <=>DB9-M-C

Converter

DB9-F-C <=> RJ-45 <=>DB9-M-C Converter w / TX-RX LED

ASM-600-A3 / ASM-600-B3

DB9-F => RJ-45 =>DB9-M

Converter & Double Booster

DB9-F => RJ-45 =>DB9-M Booster w / TX-RX LED

ASM-600-A4 / ASM-600-B4

DB9-F-C => RJ-45 =>DB9-M-C

Converter & Double Booster

DB9-F-C => RJ-45 =>DB9-M-C Booster w / TX-RX LED

AUM-600-A2 / ASM-600-B2

USB-A => RJ-45 =>DB9-M-C

Converter

USB-A => RJ-45=> DB9-M-C Converter w / TX-RX LED

AUM-600-A4 / ASM-600-B4

USB-A => RJ-45 => DB9-M-C

Converter & Double Booster

USB-A => RJ-45 =>DB9-M-C Booster w / TX-RX LED
ASM-232-RJ


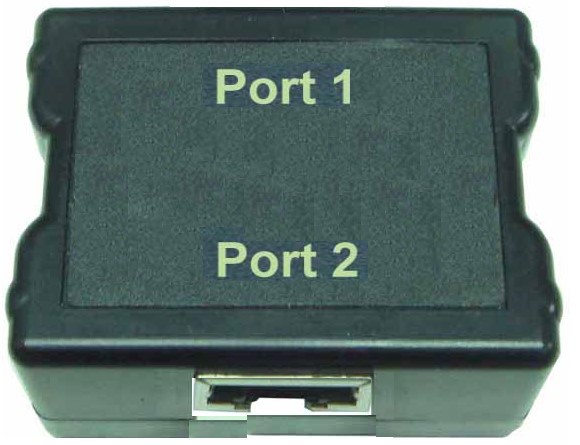

 ASM-600-LN


 ASM-600-BT

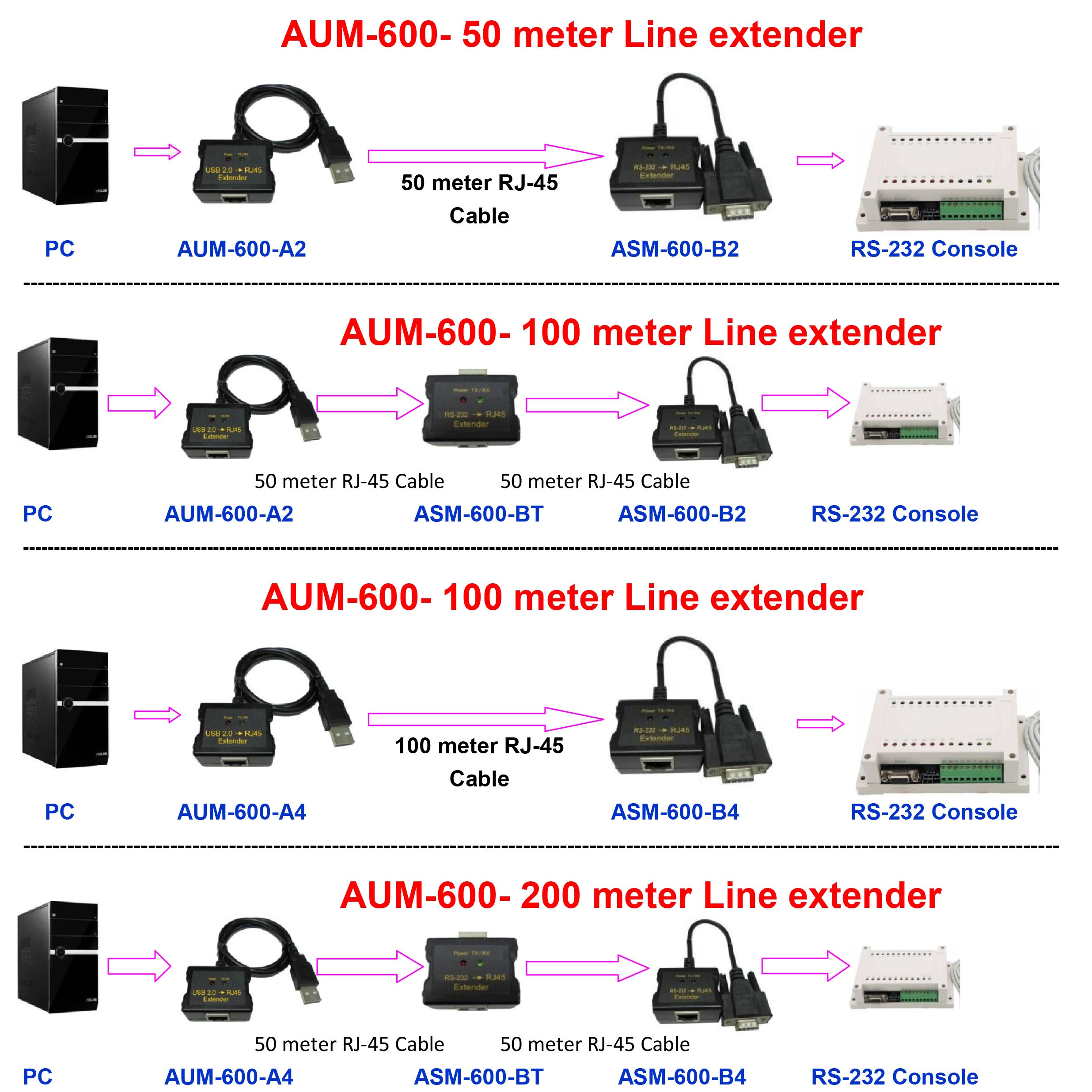

 AUM-600-A2-B2 / AUM-600-A4-B4

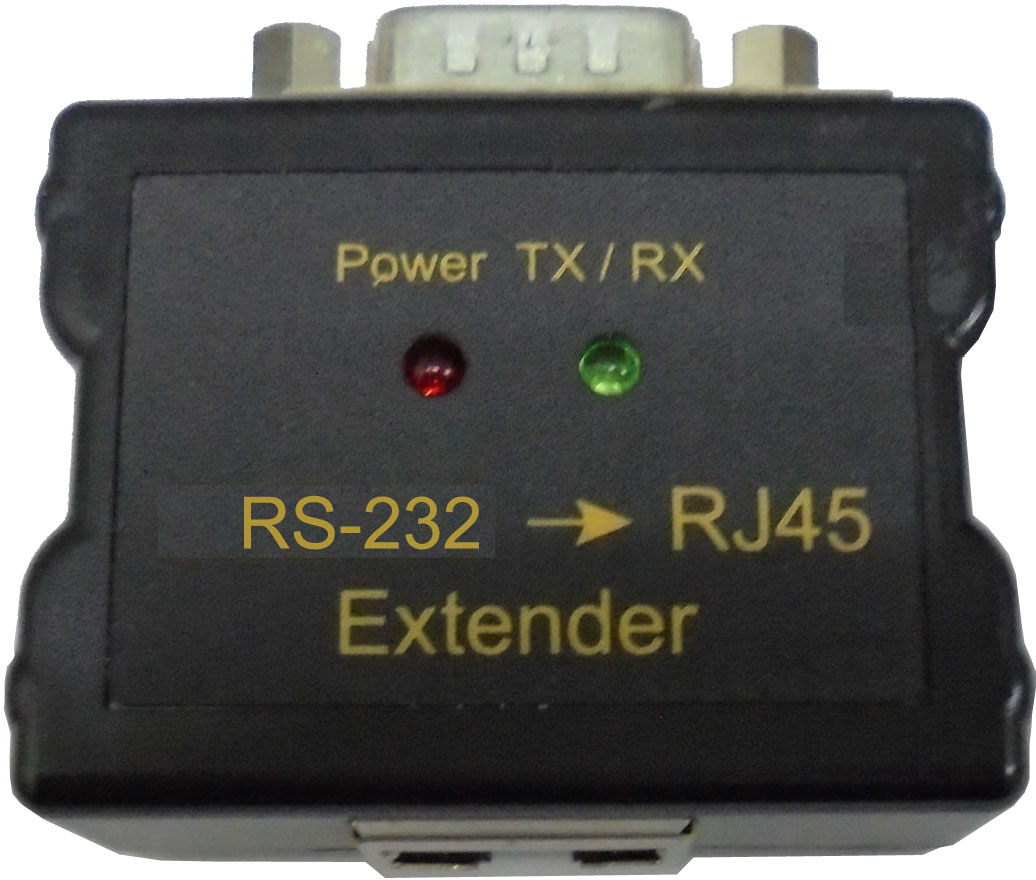

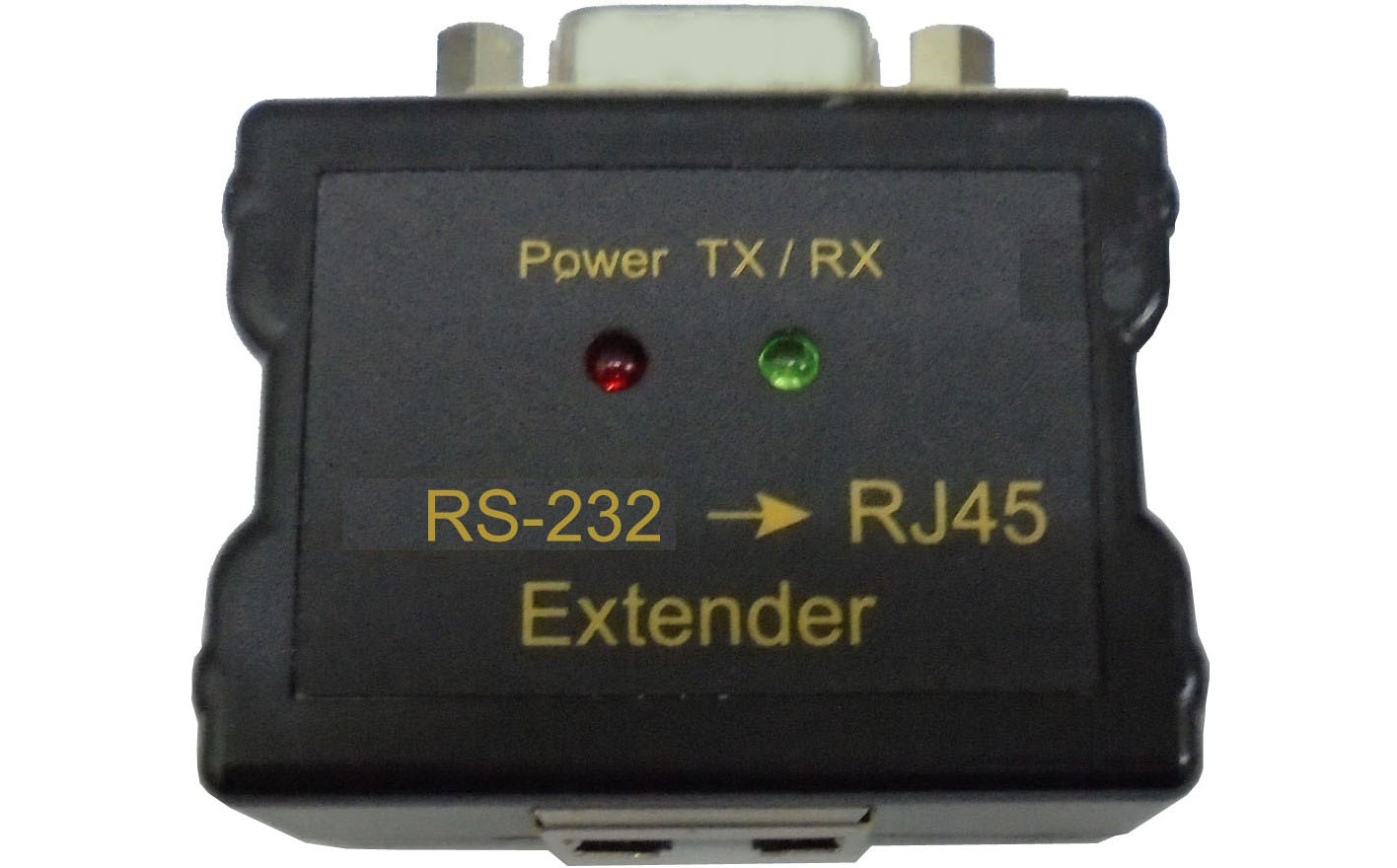

ASM-600-A1 / ASM-600-B1

 ASM-600-A2 / ASM-600-B2
ASM-600-A3/B3

 ASM-600-A4/B4

ASM-AUM-600 Speed / Distance comparison table (CAT 5 & CAT 6 - UTP Cable)

Length / Baud Rate

115K

230K

460K

920K(1M)

5M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4

B1-B2-B3-B4 / BT

10M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

20M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

40M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

50M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

80M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

100M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

110M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

120M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT



140M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT



200M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT



ASM-AUM-600 Speed / Distance comparison table (CAT 5 & CAT 6 STP Cable)

5M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4

B1-B2-B3-B4 / BT

10M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

50M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

100M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

200M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

250M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT

A3-A4-B3-B4 / BT (MAX)

300M

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A1-A2-A3-A4 / B1-B2-B3-B4 / BT

A3-A4-B3-B4 / BT


 If using CAT 6 & CAT6 + Shell- STP Cable transmission distance can be doubled than UTP Cable
