Features & Specification
- RS-232 Isolated Line Booster Converter with Isolated DC-to-DC converter
- Meets EIA / TIA-232E specification
- ESD protection on Tout pins (+-8KV: contact discharge +15KV: air gap discharge)
- Standard RS-232 DCE (DB9-F) to DTE (DB9-M) Interface
- Easy to install , Plug & Play / 5V Power required
- Working type: RS-232/F (DCE) =>TTL (Booster) =>RS-232/M (DTE)
- Fully compliant with RS-232 Spec.
- Compact size / With two LED appeared power / TXD / RXD
- Easy cheek data transfer & receiver
- RS-232 DTE connecter : DB9 - M / RS-232 DCE connecter : DB9 - F
- Line extender 45M / Data rate : Up to 200 K bps
- With TTL Single Booster / Stander RS-232 I/O
- Housing : Plastic / Weight : 55g
Dimensions (L*W*H) : 45 * 35 * 21 ( mm ) body

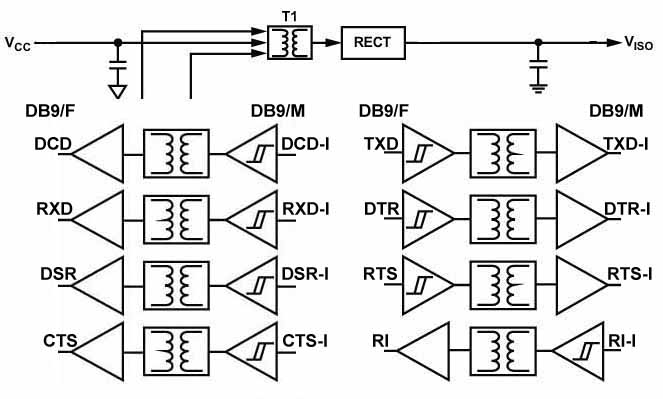

| Signal Name / Mode | DB - 9F - DCE | DB - 9M - DTE |
| FG (Frame Ground) | FG | FG-I |
| CD (Carrier Detect) | 1-DCD | 1-DCD-I |
| RD (Receive Data) | 2-RXD | 2-RXD-I |
| TD (Transmit Data) | 3-TXD | 3-TXD-I |
| DTR (Data Terminal Ready) | 4-DTR | 4-DTR-I |
| SG (Signal Ground) | 5-Host SG | 5-Device SG-I |
| DSR (Data Set Ready) | 6-DSR | 6-DSR-I |
| RTS (Request To Send) | 7-RTS | 7-RTS-I |
| CTS (Clear To Send) | 8-CTS | 8-CTS-I |
| RI (Ring Indicator) | 9-RI | 9-RI-I |
