ASM-422 (RS-422 to RS-232 Converter for Device)
| Host Compliable | ||
|
|
|
|
The ASM-422
is RS-422 to RS-232 Converter for Device
The RS-422 must connect Host RS-422
TXD+/TXD-RXD+/RXD- Singles
The ASM-422 with 120 Ohm terminate
resister.

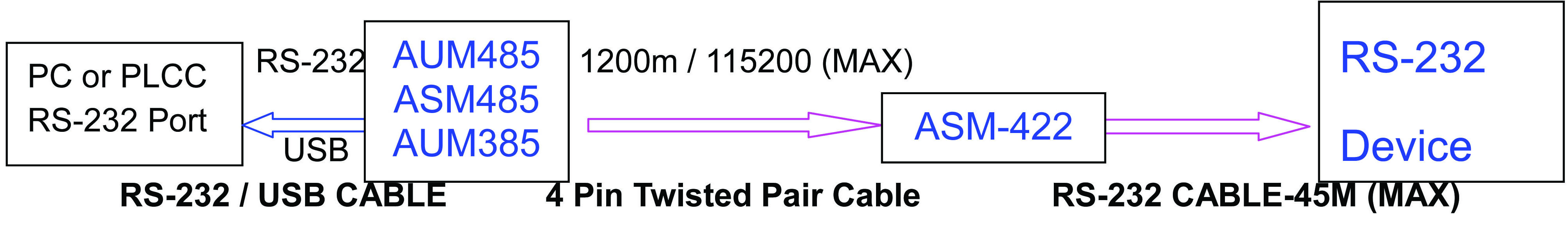

You can easy connect PC or PLCC RS-422
interface to ASM-422 and connect to Device RS-232 port.

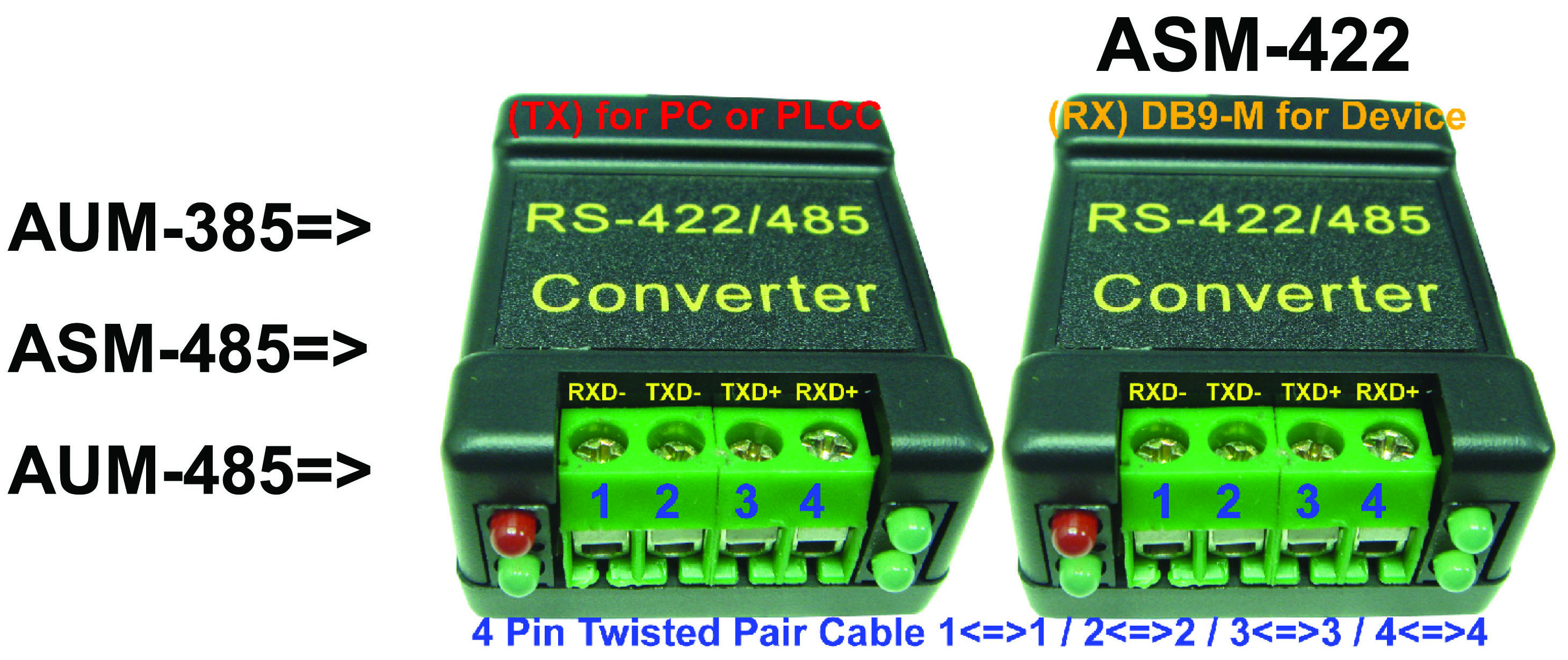

ASM-422 use 2
Twisted Pair Cable to transfer TXD & RXD
ASM-422 connector to Device is RS-232
DTE Mode.
With TXD-RXD LED Display data transfer /
Power : DC5V Adapter / Data rate : Over
115,200kbps / ESD Protection for RS-232 I/O' +-15KV
- With TXD-RXD LED Display data transfer
- Power : DC5V Adapter
- Data rate : Over 115,200kbps
- ESD Protection for RS-232 I/O' +-15KV RS-232 input for DCE Mode / output for DTE Mode
