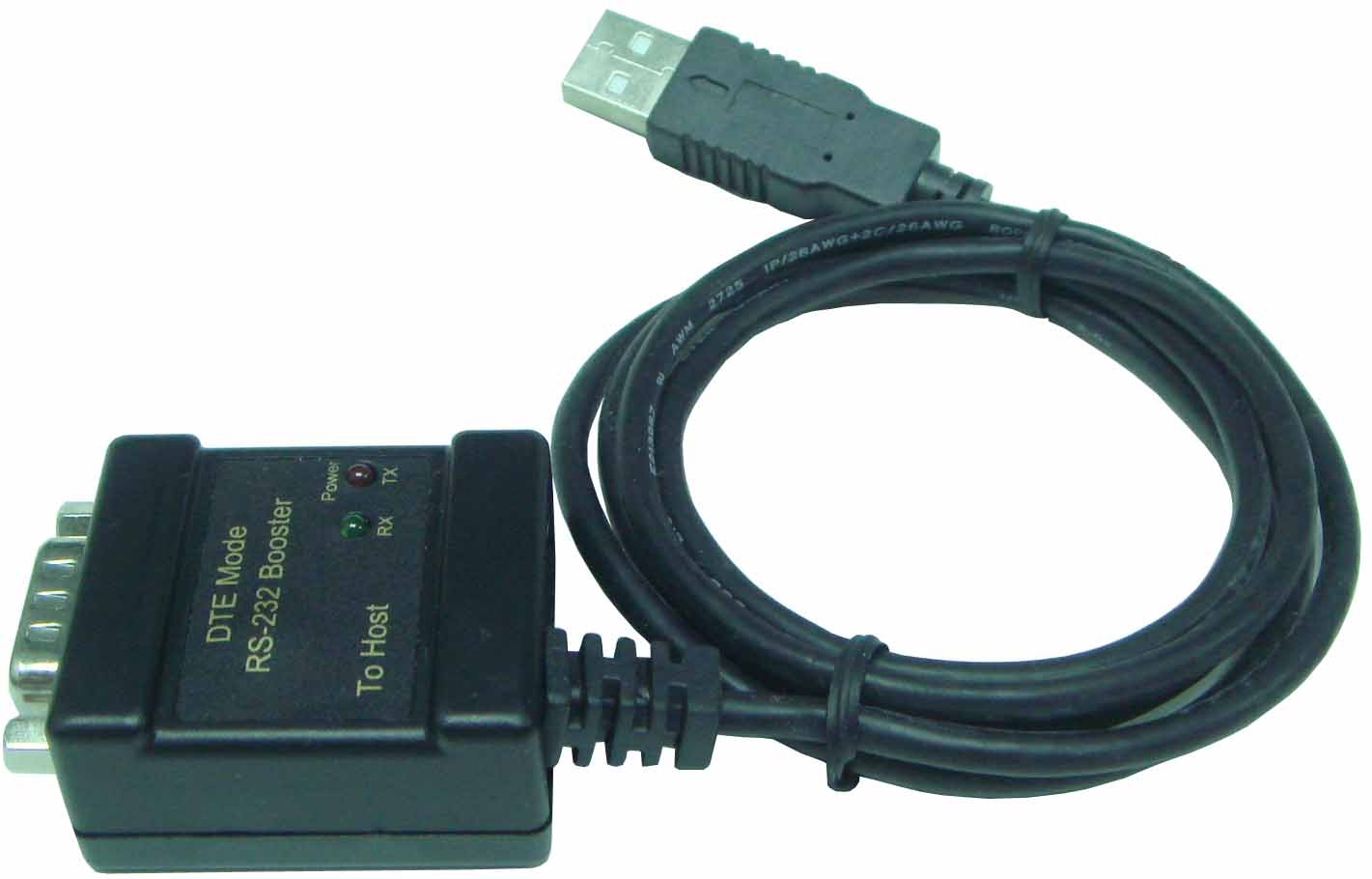

- USB to RS-232 Converter with Isolated dc-to-dc converter
- Meets EIA/TIA-232E specification
- ESD protection on Tout pins (+-8KV: contact discharge +15KV: air gap discharge)
- Bus powered , FTDI Chip
- Standard USB TO RS-232 Adapter
- Easy to install , Plug & Play
- PDA RS-232 Port support
- 56K Modem support
- Serial Mouse support
- Serial PC camera support
- Fully compliant with USB Spec.
- For Win-98/se/me , Win-2000
- Win-NT 5.0 ,Win-XP ,Win-7/8/10,Win-CE
- MAC OS. 8.6 up ,LINUX
- RS-232 -- DB9 / M

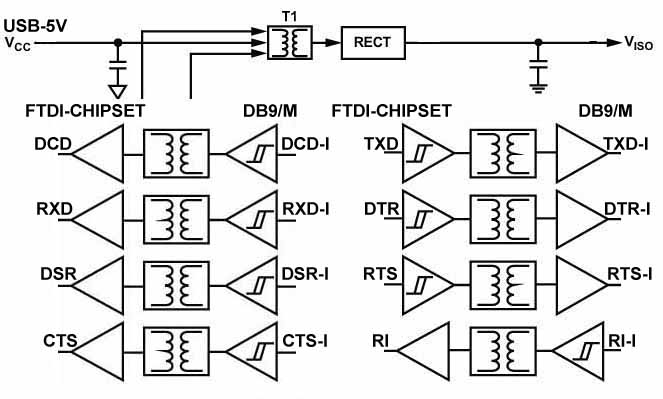

| USB | Signal Name / Mode | FTDI-CHIPSET | DB - 9M - DTE |
| FG | FG (Frame Ground) | FG | FG-I |
| 1-VCC | CD (Carrier Detect) | 1-DCD | 1-DCD-I |
| 2-DM | RD (Receive Data) | 2-RXD | 2-RXD-I |
| 3-DP | TD (Transmit Data) | 3-TXD | 3-TXD-I |
| DTR (Data Terminal Ready) | 4-DTR | 4-DTR-I | |
| 4-Host SG | SG (Signal Ground) | 5-Host SG | 5-Device SG-I |
| DSR (Data Set Ready) | 6-DSR | 6-DSR-I | |
| RTS (Request To Send) | 7-RTS | 7-RTS-I | |
| CTS (Clear To Send) | 8-CTS | 8-CTS-I | |
| RI (Ring Indicator) | 9-RI | 9-RI-I |
