AUM-100-XX-LED (USB to RS-232 Cable with LED indicate)

•  FTDI or Prolific Chipset. The AUM-100-XX-LED is a USB to serial UART interface with full modem control.

•  USB to RS-232 Adapter. Power free / Bus powered. Easy to install , Plug & Play

• Fully compliant with USB Spec 1.1 / 2.0 / 3.0./ 3.1

• Driver support:

• FTDI :Win XP, Win7, Win 8, Win 10, Win-CE, MAC OS.-X ,Linux, Android

• Prolific :Win7, Win 8, Win 10, MAC OS.-X ,Linux, Android

• RS-232 - DB9 Male DTE Mode,

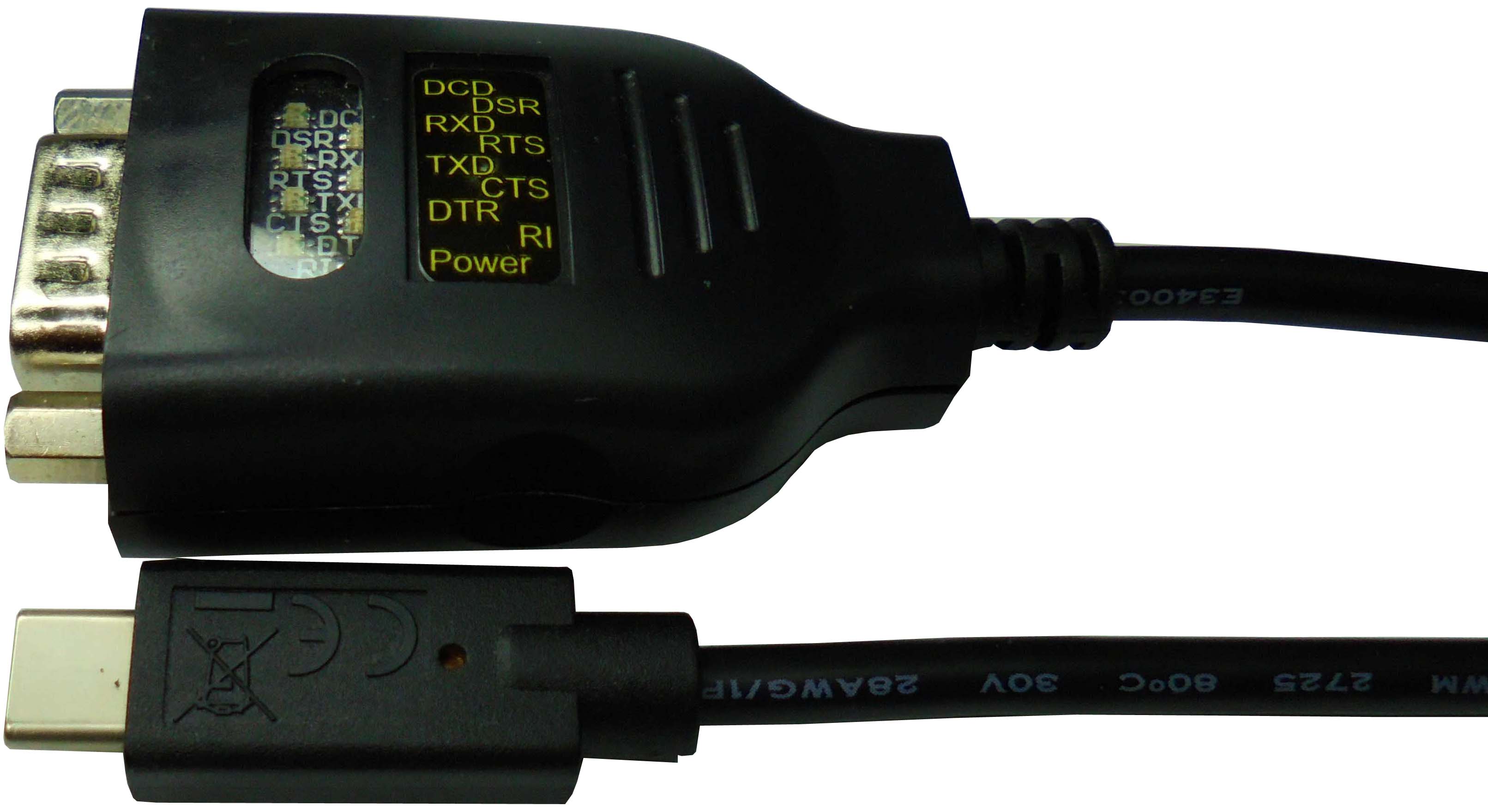

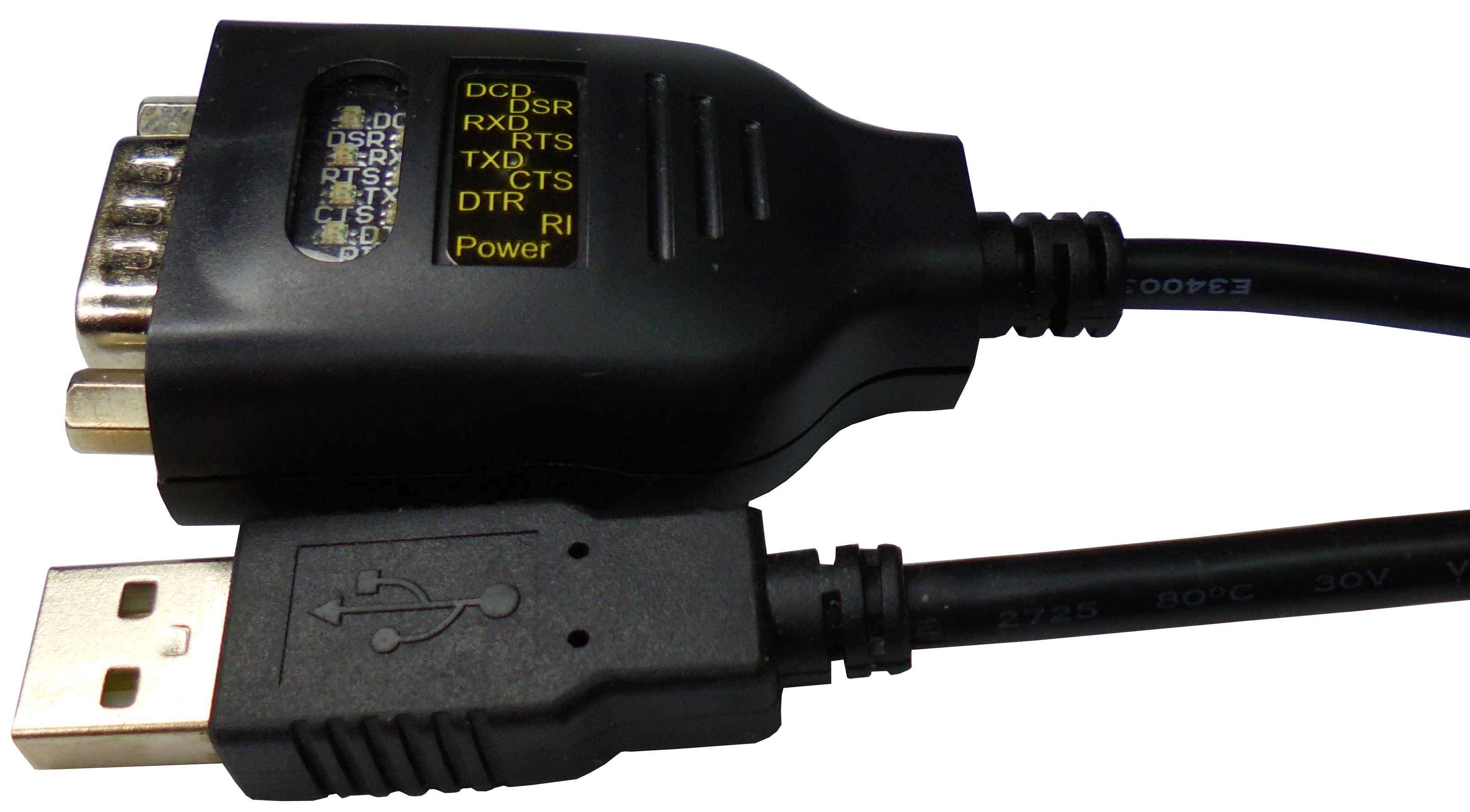

• AUM100-XA-LED – USB 2.0 A Male /. AUM100-XC-LED USB type-C Male

• Data rate: Over 250kbps. ESD Protection for RS-232 I/O' +-15KV

•  With : Power / DCD / RXD / TXD / DTR / DSR / RTS / CTS / RI

• Power -- LED Red indicate, other – Red / Green LED indicate.

• Signal / TTL out 1 - LED appear Green (V-)

• Signal / TTL out 0 - LED appear Red (V+)

•  With 1.8m USB cable or Type-C cable 15cm

• DB-9 Pin assignment

Pin1 : DCD  <== IN

Pin2 : RXD   <== IN

Pin3 : TXD    ==>  OUT

Pin4 : DTR    ==>  OUT

Pin5 : GND

Pin6 : DSR    <== IN

Pin7 : RTS     ==>  OUT

Pin8 : CTS     <== IN

Pin9 : RI        <== IN

AUM-100-XX-LED Tester

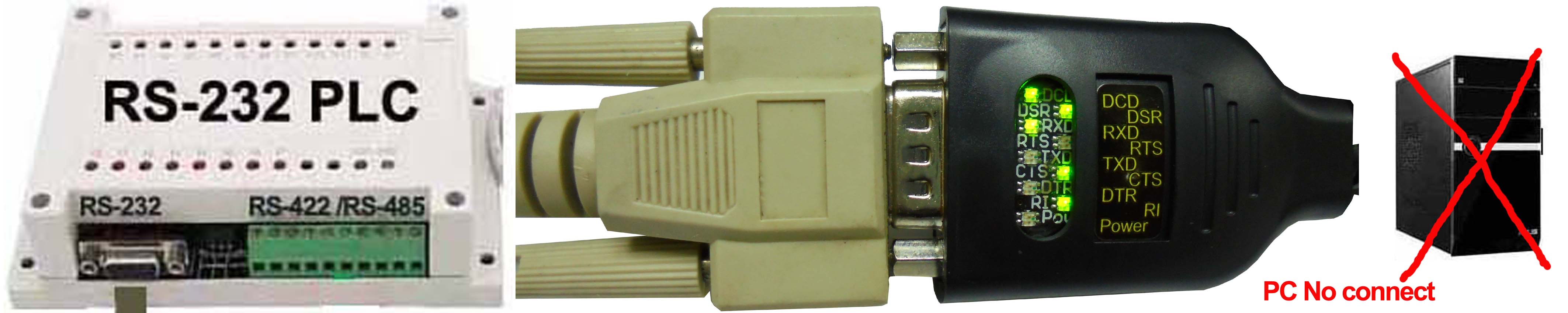

1. Device link tester (DCD/DSR/RXD/CTS/DTR LED Light)

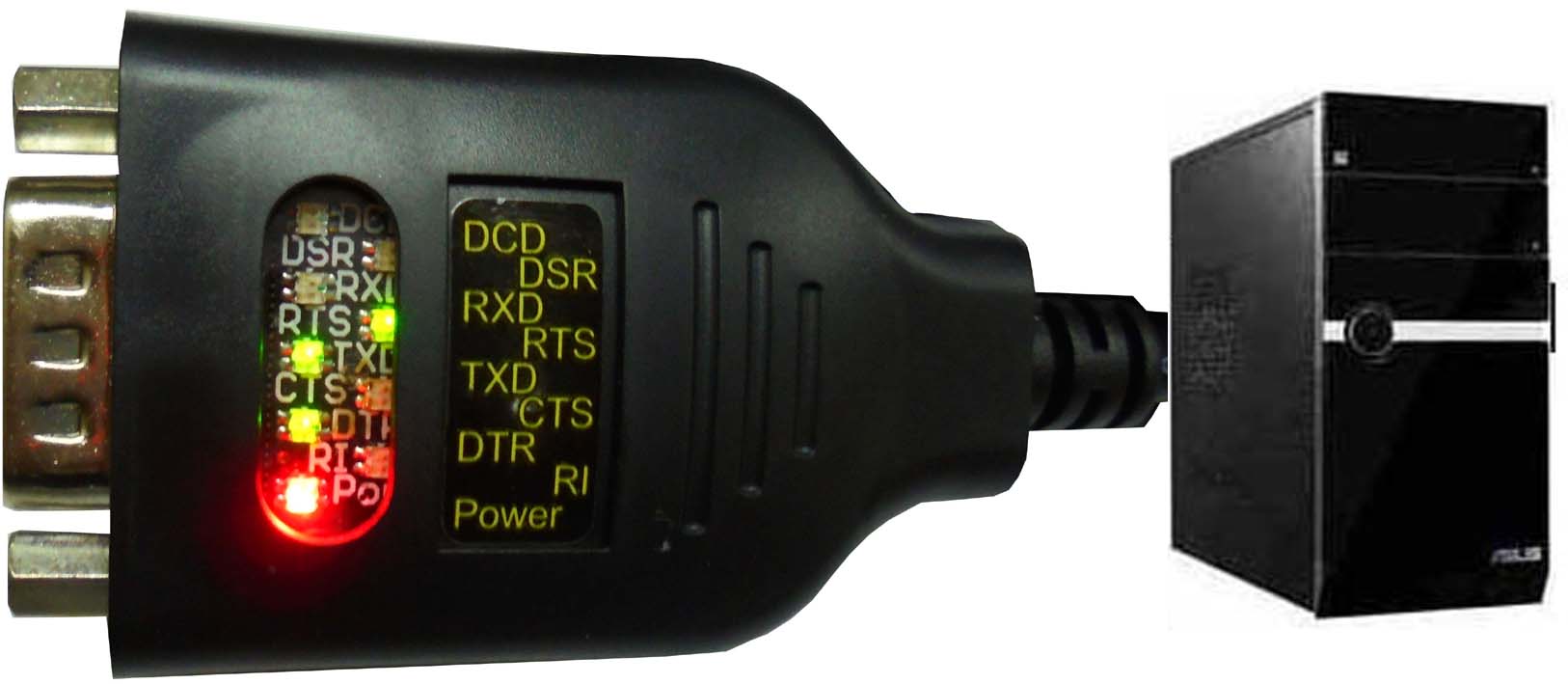

2. PC Link LED display (RTS/TXD/CTS/Power LED Light)

3. PC-AUM-100-LED-PLCC Link (All LED R/G Flash)

4. PC-AUM-100-LED-PLCC Link Working (All LED Light)
