AUM-5X0 Serial => USB to 1~3 port RS-232 With USB Repeater

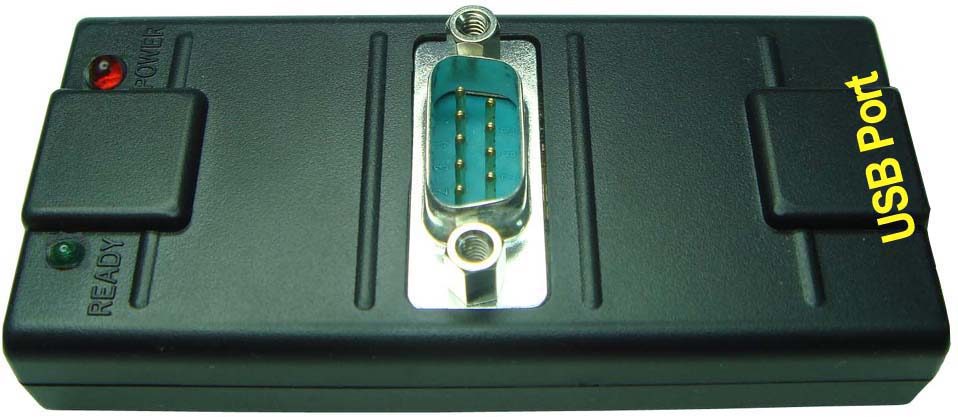

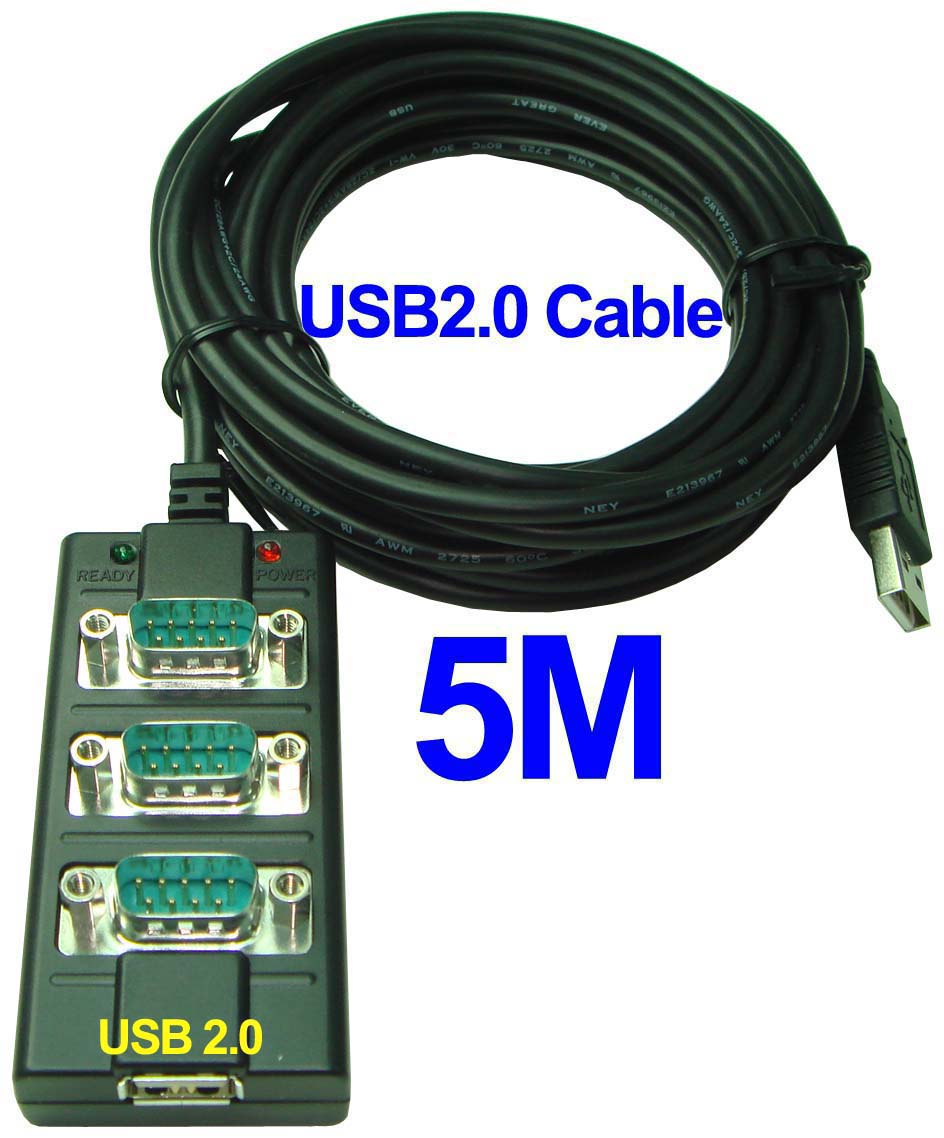

AUM-510-P Prolific Chipset / AUM510-F FTDI Chipset                   =>    USB 5M Active Cable with RS-232 Port * 1              Body:USB-AM - 5M - USB-AF

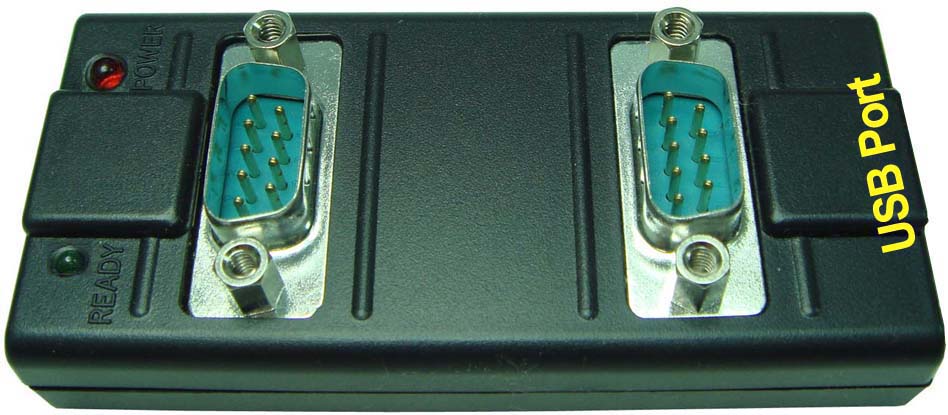

AUM-520-P Prolific Chipset / AUM520-F FTDI Chipset                   =>    USB 5M Active Cable with RS-232 Port * 2              Body:USB-AM - 5M - USB-AF
AUM-530-P Prolific Chipset / AUM530-F FTDI Chipset                   =>    USB 5M Active Cable with RS-232 Port * 3              Body:USB-AM - 5M - USB-AF

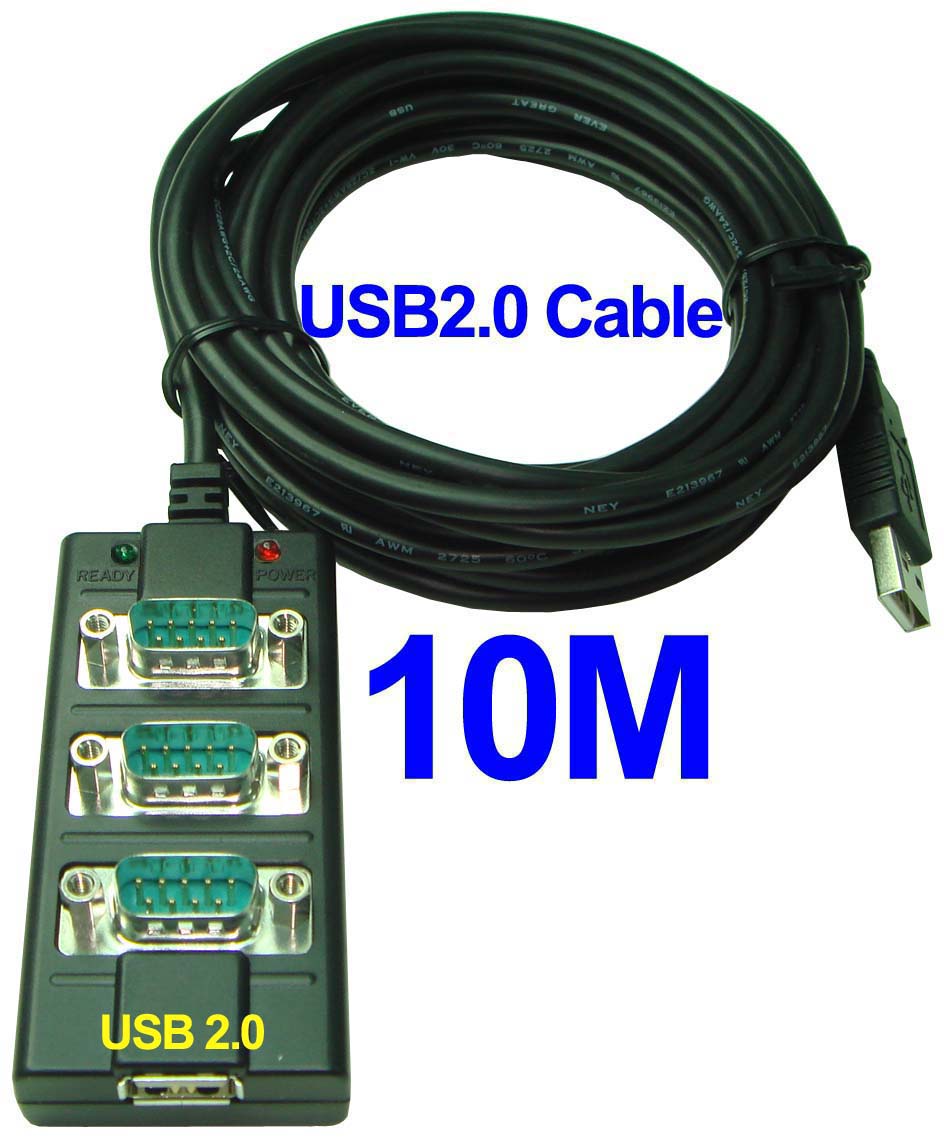

AUM-510-P-10 Prolific Chipset / AUM510-F-10 FTDI Chipset         =>   USB 10M Active Cable with RS-232 Port * 1            Body:USB-AM - 10M - USB-AF
AUM-520-P-10 Prolific Chipset / AUM520-F-10 FTDI Chipset         =>   USB 10M Active Cable with RS-232 Port * 2            Body:USB-AM - 10M - USB-AF
AUM-530-P-10 Prolific Chipset / AUM530-F-10 FTDI Chipset         =>   USB 10M Active Cable with RS-232 Port * 3            Body:USB-AM - 10M - USB-AF

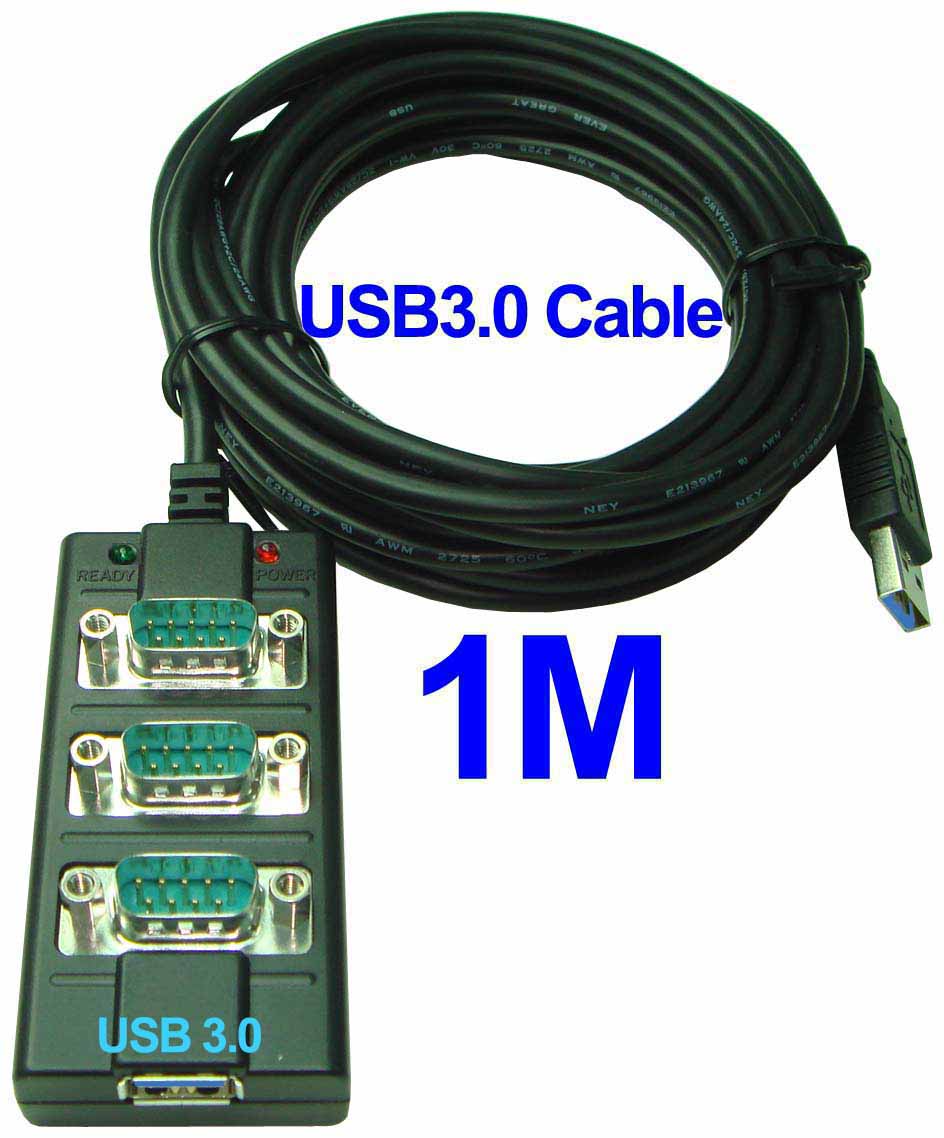

AUM-510-P-U3 Prolific Chipset / AUM510-F-U3 FTDI Chipset        =>   USB3.0 1M Extender Cable with RS-232 Port * 1    Body:U3-AM - 10M - U3-AF
AUM-520-P-U3 Prolific Chipset / AUM520-F-U3 FTDI Chipset        =>   USB3.0 1M Extender Cable with RS-232 Port * 2    Body:U3-AM - 10M - U3-AF
AUM-530-P-U3 Prolific Chipset / AUM530-F-U3 FTDI Chipset        =>   USB3.0 1M Extender Cable with RS-232 Port * 3    Body:U3-AM - 10M - U3-AF
AUM-510-CP Prolific Chipset / AUM510-CF FTDI Chipset              =>   Type-C 15CM Active Cable with RS-232 Port * 1     Body:Type-C-M-15CM - USB-AF
AUM-520-CP Prolific Chipset / AUM520-CF FTDI Chipset              =>   Type-C 15CM Active Cable with RS-232 Port * 2     Body:Type-C-M-15CM - USB-AF
AUM-530-CP Prolific Chipset / AUM530-CF FTDI Chipset              =>   Type-C 15CM Active Cable with RS-232 Port * 3     Body:Type-C-M-15CM - USB-AF
AUM-510-CP-U3 Prolific Chipset / AUM510-CF-U3 FTDI Chipset  =>   Type-C 15CM Extender Cable with RS-232 Port * 1  Body:Type-C-M-15CM - U3-AF
AUM-520-CP-U3 Prolific Chipset / AUM520-CF-U3 FTDI Chipset  =>   Type-C 15CM Extender Cable with RS-232 Port * 2  Body:Type-C-M-15CM - U3-AF
AUM-530-CP-U3 Prolific Chipset / AUM530-CF-U3 FTDI Chipset  =>   Type-C 15CM Extender Cable with RS-232 Port * 3  Body:Type-C-M-15CM - U3-AF

AUM-5X0-P

AUM-5X0-F

AUM-5X0-P-10

AUM-5X0-F-10

AUM-5X0-P-U3

AUM-5X0-F-U3

AUM-5X0-CP

AUM-5X0-CF

AUM-5X0-CP-U3

AUM-5X0-CF-U3

AUM-510-XXX                      AUM-520-XXX                         AUM-530-XXX


Features Specification
  • Fully Compliant with USB Specification v2.0 /3.0  (Full-Speed)
  • UHCI / OHCI (USB1.1), EHCI (USB2.0), xHCI(USB3.0),TYPE-C Host Controller Compatible
  • Meets EIA/TIA-232F standards
  • Guaranteed 115200 bps transmission rate under loading
  • Three RS232 Driver / Five RS232 Receivers
  • Full-duplex transmitter and receiver (TXD and RXD)
  • Six MODEM control pins (RTS, CTS, DTR, DSR, DCD, and RI)
  • 5,6,7 or 8 data bits
  • Odd, Even, Mark, Space, or None parity mode
  • One, one and a half, or two stop bits
  • Parity error, frame error, and serial break detection
  • Programmable baud from 75 bps to 1M bps
  • Provides RS232 power down indicator pin
  • Works with existing PC COM Port software applications
  • Automatic hardware flow control with CTS/RTS or DSR/DTR
  • Automatic software flow control with XON/XOFF
  • Supports Remote Wake-up from RS232 input signals (RI, RXD, DSR, DCD, CTS)
  • Provides royalty-free Virtual COM Port (VCP) driver for:
  • Windows 2000, XP, Vista, and 7/8/10 (Microsoft Certified WHQL Logo Drivers)
  • Windows CE4.2, 5.0, 6.0, and Windows Embedded Compact 7
  • Windows XP Embedded (XPe), Point--of-Service (WEPOS), and POS Ready
  • MAC OS 8/9, OSX
  • Linux/Android kernel 2.4.31 and above includes built-in driver
  •  -40C to 85 C Operating Temperature
  • ESD Protection for RS-232 I/O' +-15KV
  • RS-232 -- DB9 / M - DTE Mode
DB-9  Pin assignment

Pin1 : DCD  <== IN

Pin2 : RXD   <== IN

Pin3  : TXD    ==>  OUT

Pin4  : DTR    ==>  OUT

Pin5  : GND

Pin6  : DSR    <== IN

Pin7  : RTS     ==>  OUT

Pin8  : CTS     <== IN

Pin9  : RI        <== IN

  • LED Indicate : Power /Green, Ready / Red
  • USB Cable ----- USB TYPE-C / M + 15cm cable
  • USB Down stream port : USB A / F or USB3.0 A / F
  • Building tree type of RS-232 Working group.
  • Easy connect to all RS-232 I/O ports.
  • PC's RS-232 service to cline.
  • Very fit long distance connect to CNC Machines.
  • Easy saving Space / money / time / working
  • Weight : 55 / 45 / 35 g (3/2/1 port)
  • Dimension: 85 *40 *18 mm (Body)
