RS-232 Point to Point TX-RX 1200m Extender

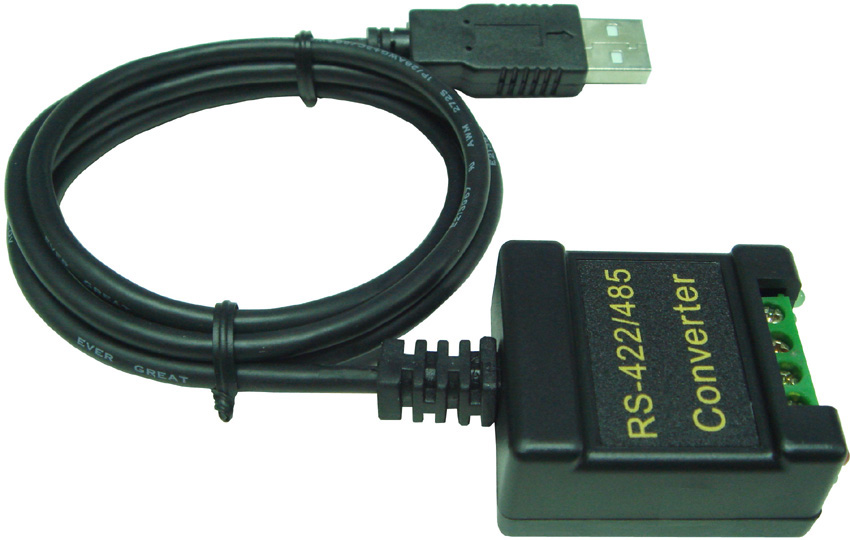

AUM-600(USB to RS-232 1200m 4-Wire Extender w/TXD-RXD Driver)

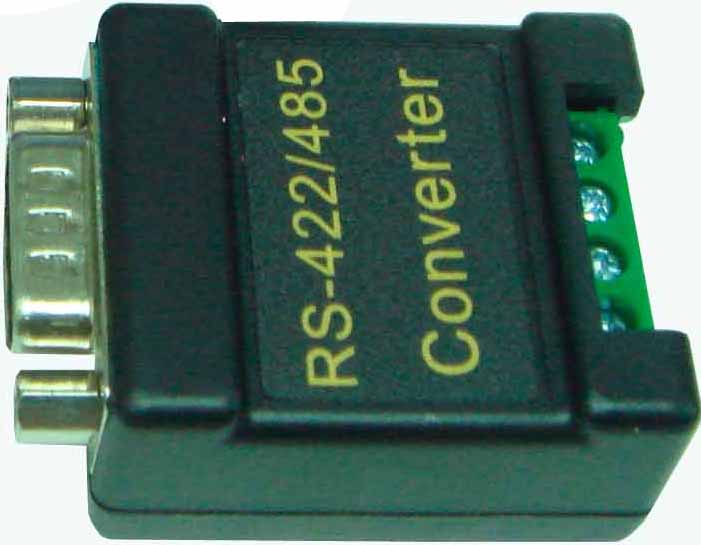

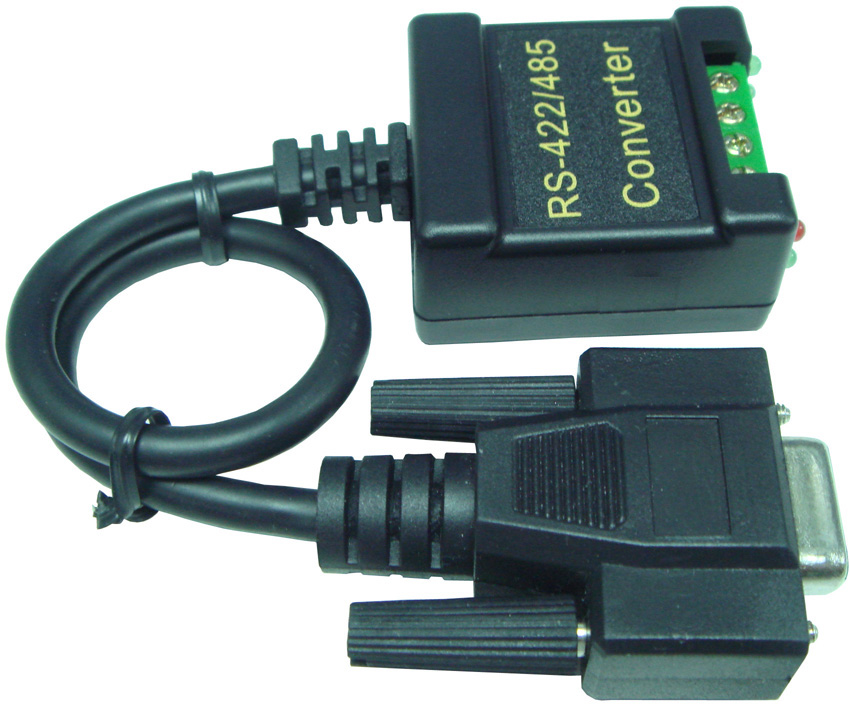

ASM-600(RS-232 1200m 4-Wire Extender w/TXD-RXD Driver)

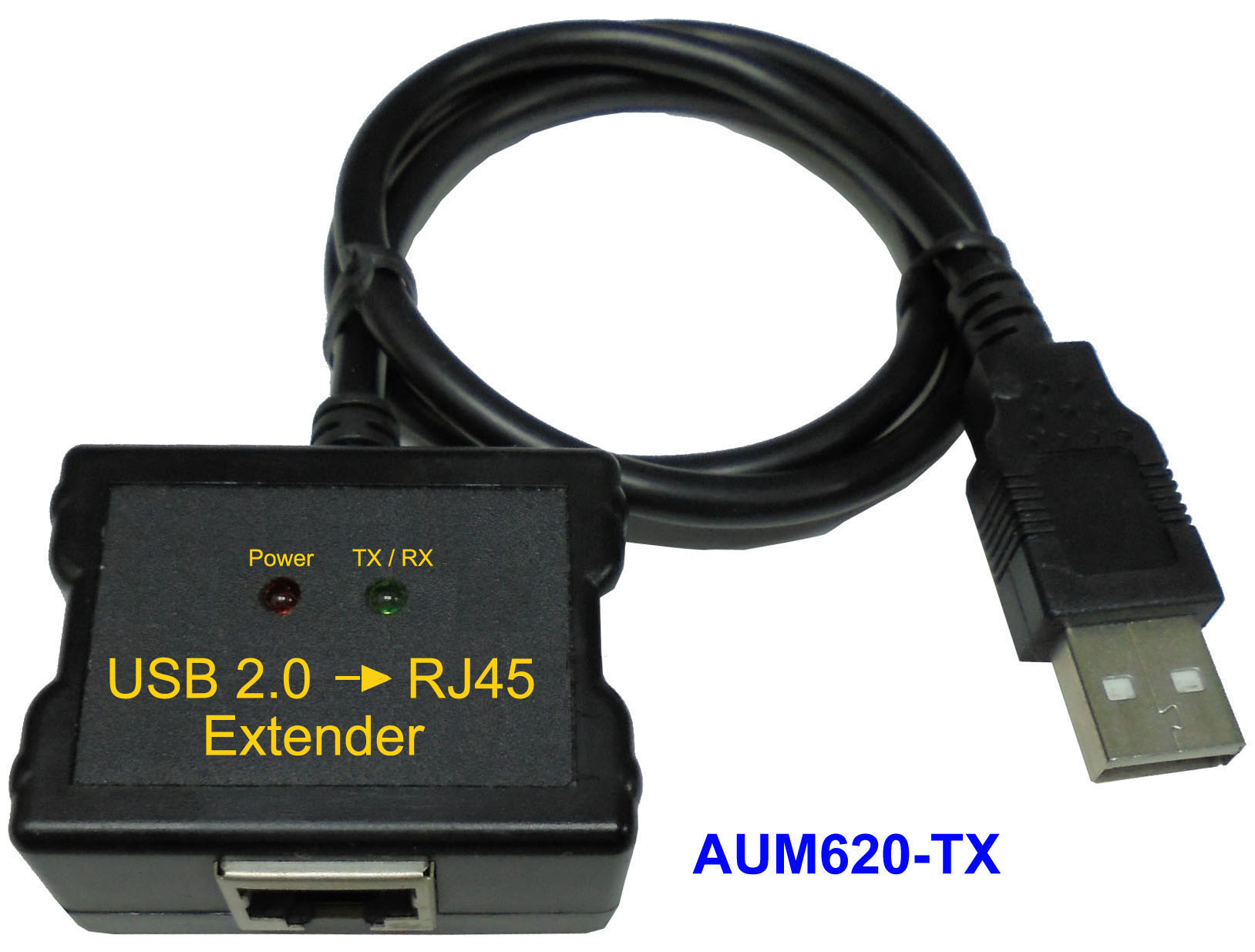

AUM-620(USB to RS-232 1200m 8-Wire Extender w/TXD-RXD/CTS-RTS Driver)

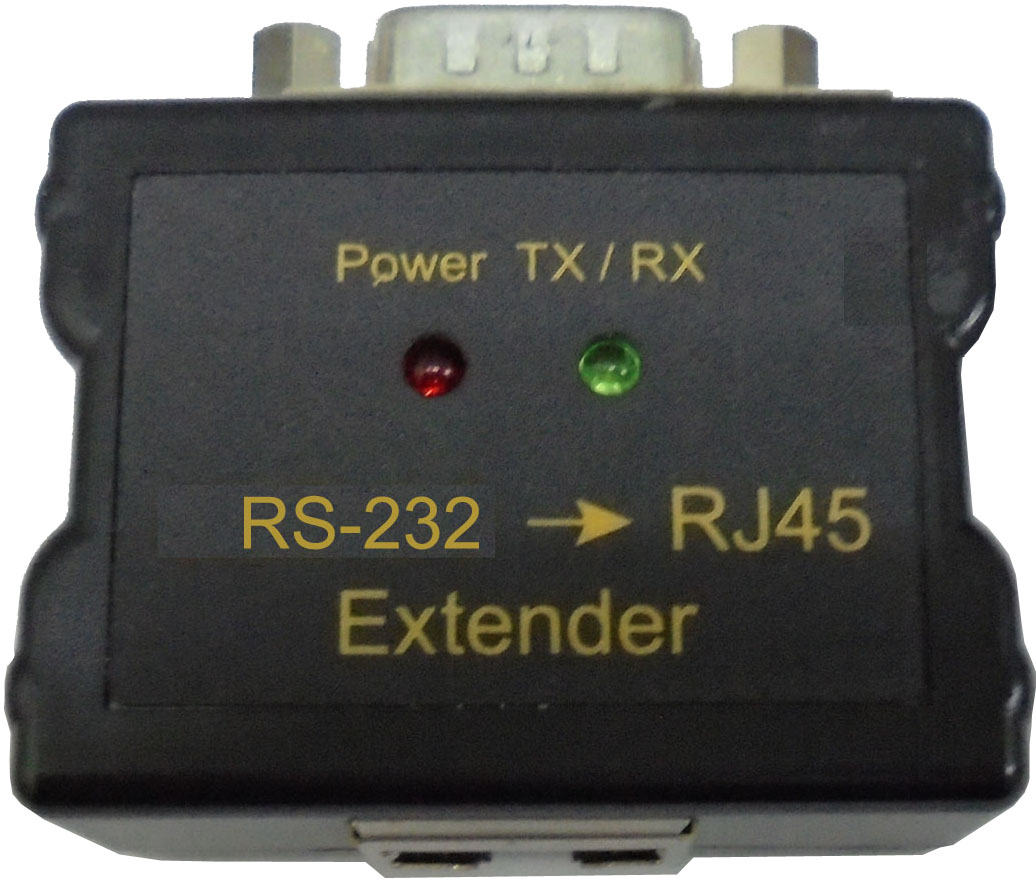

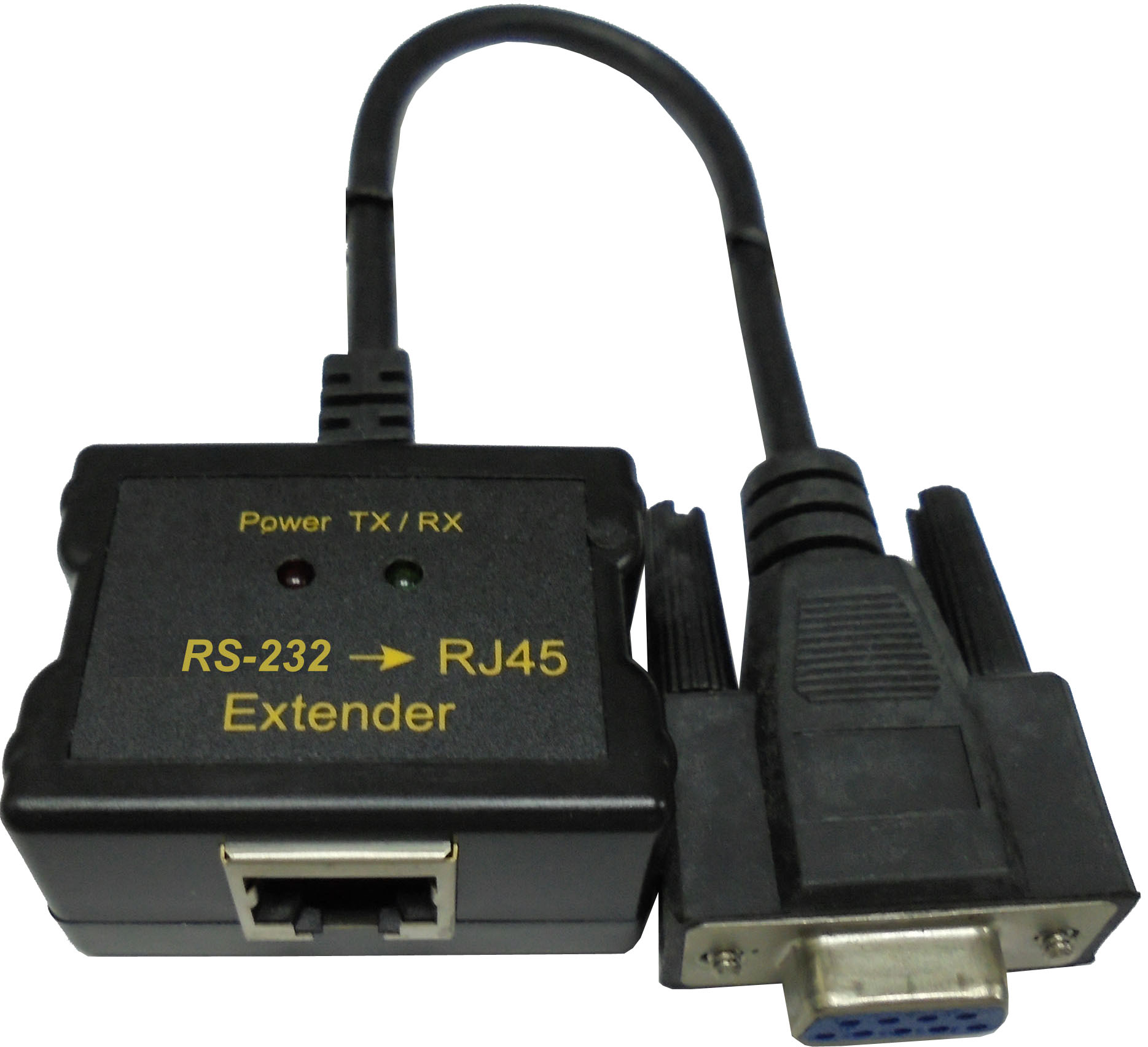

ASM-620(RS-232 1200m 8-Wire Extender w/TXD-RXD / CTS-RTS Driver)

USB -TX

RS232 -TX

RS232-RX

Item

Host

Cable Connector

Device

Single

Speed (MAX)

AUM-600

USB Cable

 4 pin Terminal

DB9-M

TXD / RXD

115,200

ASM-600

DB9-F Cable

 4 pin Terminal

DB9-M

TXD / RXD

115,200

AUM-620

USB Cable

RJ-45

DB9-M

TXD/RXD/CTS/RTS

115,200

ASM-620

DB9-F Cable

RJ-45

DB9-M

TXD/RXD/CTS/RTS

115,200
FeaturesFeatures Specification

The AUM/ASM 6X0 System is RS-232 Point (Host-TX) to Point (Device-RX) 1200m Extender.

The Single data transfer for RS-422 Mode

You can easy connect PC or PLCC to 1200m (MAX) Device use Twisted Pair Cable.

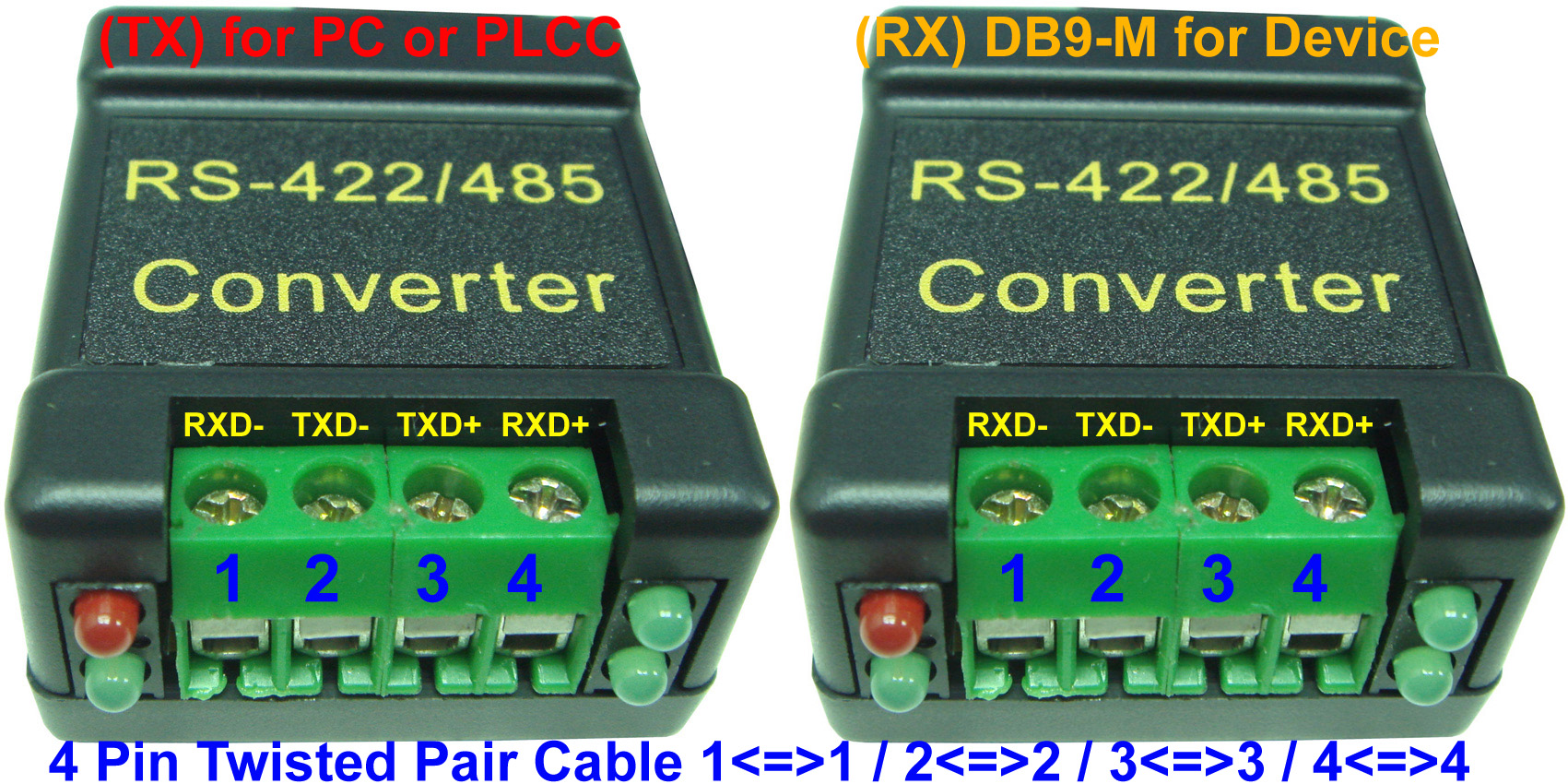

AUM-600 / ASM-600 use 2 Twisted Pair Cable data transfer TXD & RXD

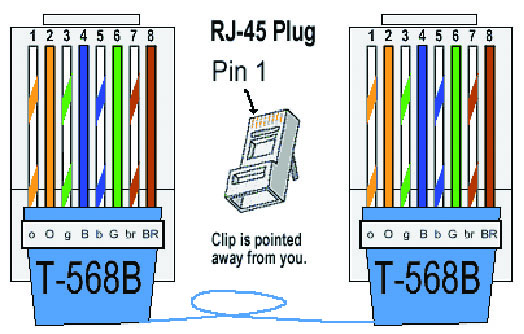

AUM-620 / ASM-620 use 4 Twisted Pair Cable fit UTP / STP 8 Pin Cable, Data transfer TXD/RXD/CTS/RTS.

AUM-600 & AUM620 for PC, use FTDI Chipset need Driver

ASM-600 & ASM620 for DTE of RS-232 port Driver free.

ALL item connector of Device (RX) are DB9-M for RS-232 DTE Mode.
  • With TXD-RXD LED Display data transfer
  • Power : DC5V Adapter
  • AUM600/620  For Win-98/se/me , Win-2000, Win-NT up 5.0 Ver,Win-XP,Win7/8/10,Win-CE
  • MAC OS. 8.6 up ,LINUX
  • Data rate : Over 115,200 bps
  • ESD Protection for RS-232 I/O' +-15KV
    • RS-232 input for DCE Mode / output for DTE Mode
  • Item  Transfer Single No use Single
    AU(S)M-600 TXD / RXD DCD / RI ,RTSóCTS,DTRóDSR
    AU(S)M-620 TXD/RXD/CTS/RTS DCD / RI, DTRóDSR
