The
D2V-100 is a high-performance single-chip
HDMI / DVI to VGA
converter. Combined with DVI 1.0 receiver and triple DACs, the
D2V-100
supports DVI input and VGA output by conversion function. The build-in
DVI receiver is fully compliant with HDMI 1.3a specification. With
HDMI 1.3a receiver, the
D2V-100 can support
resolutions up to Full HD ( 1080P ), WUXGA and UXGA. Also the build-in
triple DACs can support up to 10 bit deep colors.
-
The
D2V-100 high performance, cost effective, and it can help modern NBs like ultrabooks and tablets to be
compatible with traditional VGA only projectors, monitors, and TVs.
Supporting link speeds of up to 2.25Gbps (link clock rate of 225MHz).
Auto-calibrated input termination impedance provides process-,
voltage- and temperature-invariant matching to the input transmission
lines.
-
( VGA DACs) / Tripe 10-Bit DAC Converters / 200 MSPS
Throughput Rate / Complementary Outputs / DAC Output Current Range 2mA
to 18.5mA
-
( Combined ) Support up to Full HD ( 1080P ) CEA display
format / Support up to WUXGA(1920X1200 RB mode) and UXGA(1600x1200)
VESA display format / Support HDMI Input deep color depth up to 12bit,
and support VGA output deep color depth up to 10bit / Embedded MCU and
Flash / RoHS Compliant ( 100% Green available )
-
Compable
DVI
port of PC / MAC / PS3 / DVD Player / HD Media Player……...
-
Easy to install , Plug & Play, Powers free
(With 5V power Plug - for No power of DVI Interface)
-
With screw hall / easy fasten
-

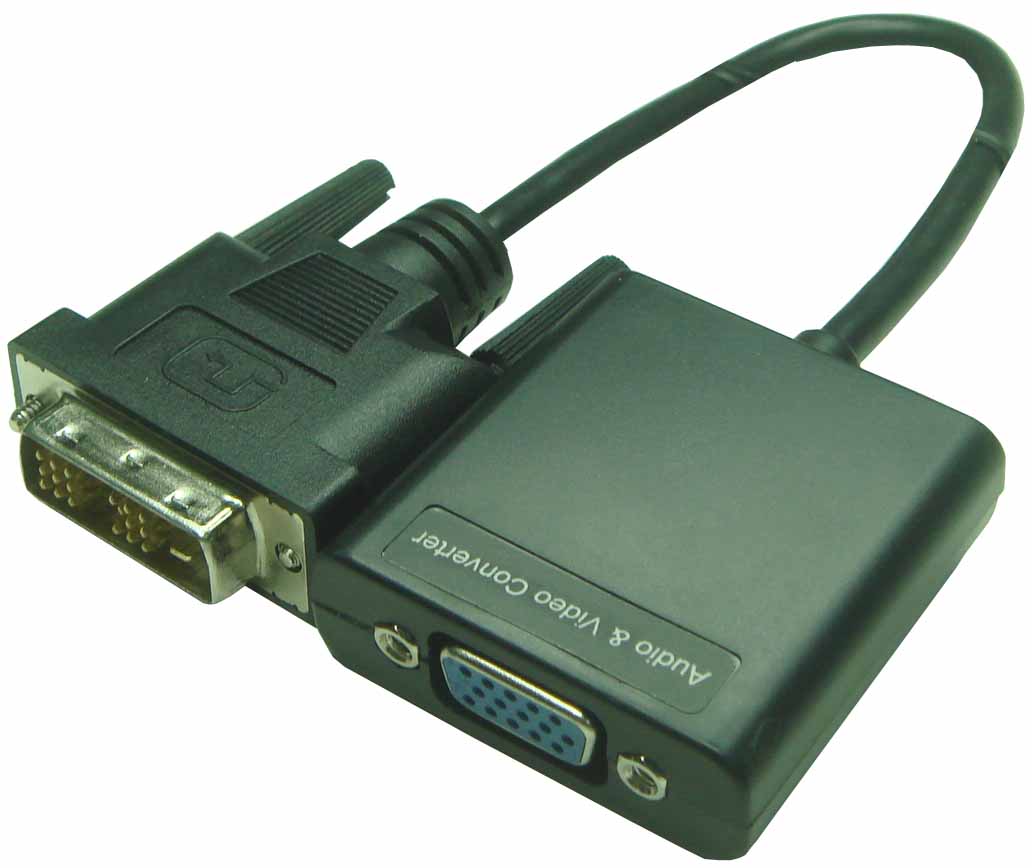

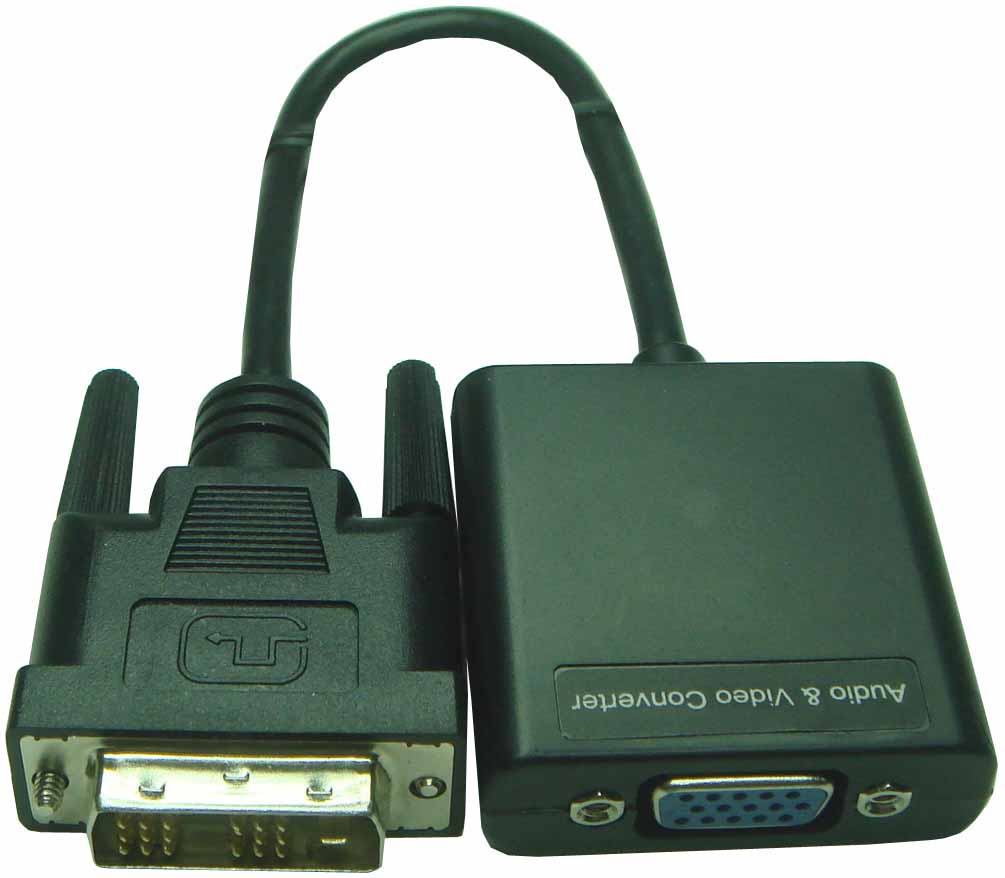

Connector : DVI-M
15CM Cable + BODY & VGA-F
-
Weight : 45g include
15CMcable
-
Dimensions (L*W*H) :
54
*
46
*
15
( mm )
-
D2V-100-P w / Power Jack / Use USB Power
cable (5V Power Adapter - Option)
|
