Mini Display port & Display port Eextender connector
DSP-100 MDP-100 MDP-200
Features & Specification
  • Mini Display port &   Display Female to Female Converter

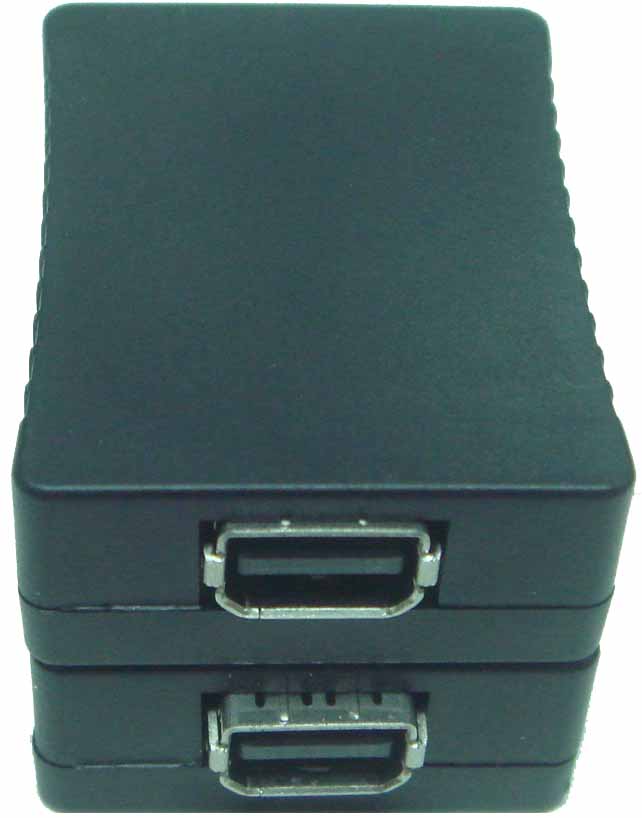

  • MDP-100 : Mini Display port to Mini Display port
  • MDP-200 : Mini Display port to Display port

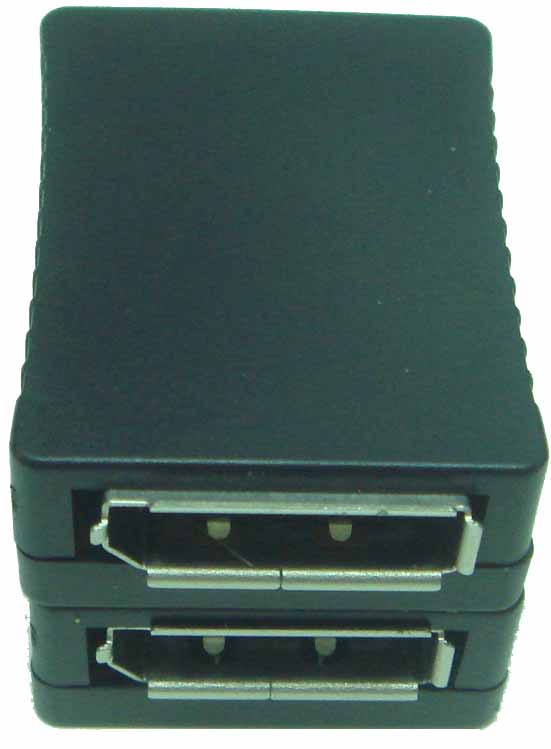

  • DSP-100 : Display port to Display port
  • With cross function : detail see the pin assignment
  • Display Port is a digital display interface standard put forth by the Video Electronics Standards Association (VESA) since 2006. It defines a new royalty-free, digital audio/video interconnect, intended to be used primarily between a computer and its display monitor, or a computer and a home-theater system.
  • Compact size
  • Housing : Plastic,
  • Dimension     :  33 * 25 * 11.2 mm

  • Pin Assignment :

  • PIN DSP / MDP <=> PIN DSP / MDP Signal
    Pin 1 / 3 <=> Pin 12 / 12 Lan0
    Pin 3 / 5 <=> Pin 10 / 10 Lan0
    Pin 4 / 9 <=> Pin 9 / 17 Lan1
    Pin 6 / 11 <=> Pin 7 / 15 Lan1
    Pin 7 / 15 <=> Pin 6 / 11 Lan2
    Pin 9 / 17 <=> Pin 4 / 9 Lan2
    Pin 10 / 10 <=> Pin 3 / 5 Lan3
    Pin 12 / 12 <=> Pin 1 / 3 Lan3
    Pin 15 / 16 <=> Pin 15 / 16 AUX-P
    Pin 17 / 18 <=> Pin 17 / 18 AUX-N
    Pin 13 / 4 <=> Pin 13 / 4 CON1
    Pin 14 / 6 <=> Pin 14 / 6 CON2
    Pin 18 / 2 <=> Pin 18 / 2 HPD
    Pin 19 / 19 <=> Pin 19 / 19 RTN
    Pin 20 / 20 <=> Pin 20 / 20 3.3V

    DP-2/5/8/11/16 <=>MDP-1/7/8/13/14

    		 GND
