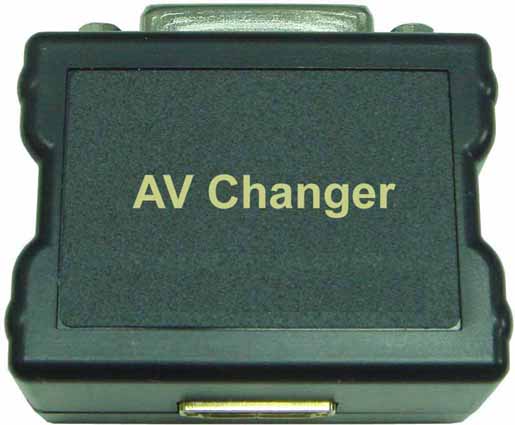

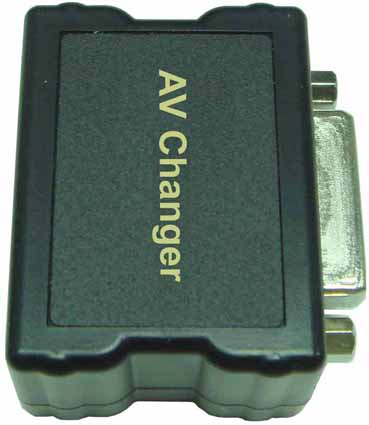

- No Power required DVI-D to HDMI changer
- Test DVI-D or HDMI Interface
- With extend function - DVI-D-F <=>HDMI-F Changer
- With DVI-I-F - HDMI-F Connectors
- Easy to install , Plug & Play
- Support 1080P Displayer
- Compact size
- Support plug & play
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 47 * 45 * 21 ( mm )
Pin Assignment :
| DVI-D-F | HDMI-F | Signal |
| Pin 1 | Pin 3 | D2- |
| Pin 2 | Pin 1 | D2+ |
| Pin 6 | Pin 15 | DDC-C |
| Pin 7 | Pin 16 | DDC-D |
| Pin 13 | CEC | |
| Pin 9 | Pin 6 | D1- |
| Pin 10 | Pin 4 | D1+ |
| Pin 14 | Pin 18 | +5V |
| Pin 16 | Pin 19 | HPD |
| Pin 17 | Pin 9 | D0- |
| Pin 18 | Pin 7 | D0+ |
| Pin 23 | Pin 10 | CLK+ |
| Pin 24 | Pin 12 | CLK- |
| Pin 4/5/12/13/20/21/C1/C2/C3/C4 | Pin 14 | NC |
| Pin 3/11/15/19/22/C5 | Pin 2/5/8/11/17 | GND |
