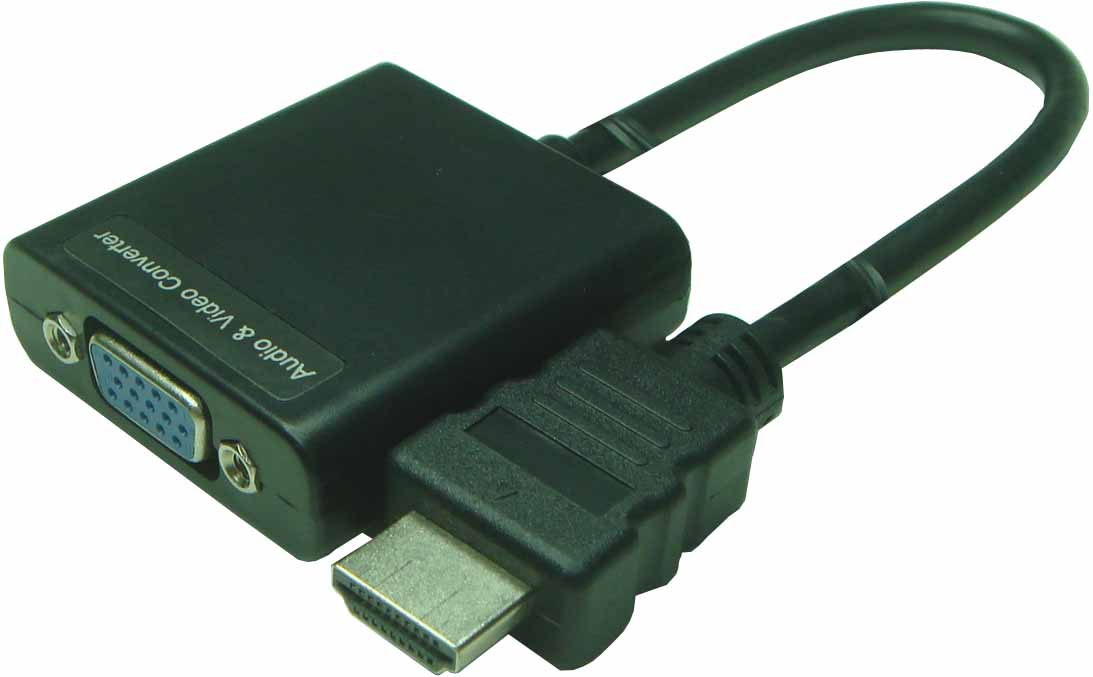

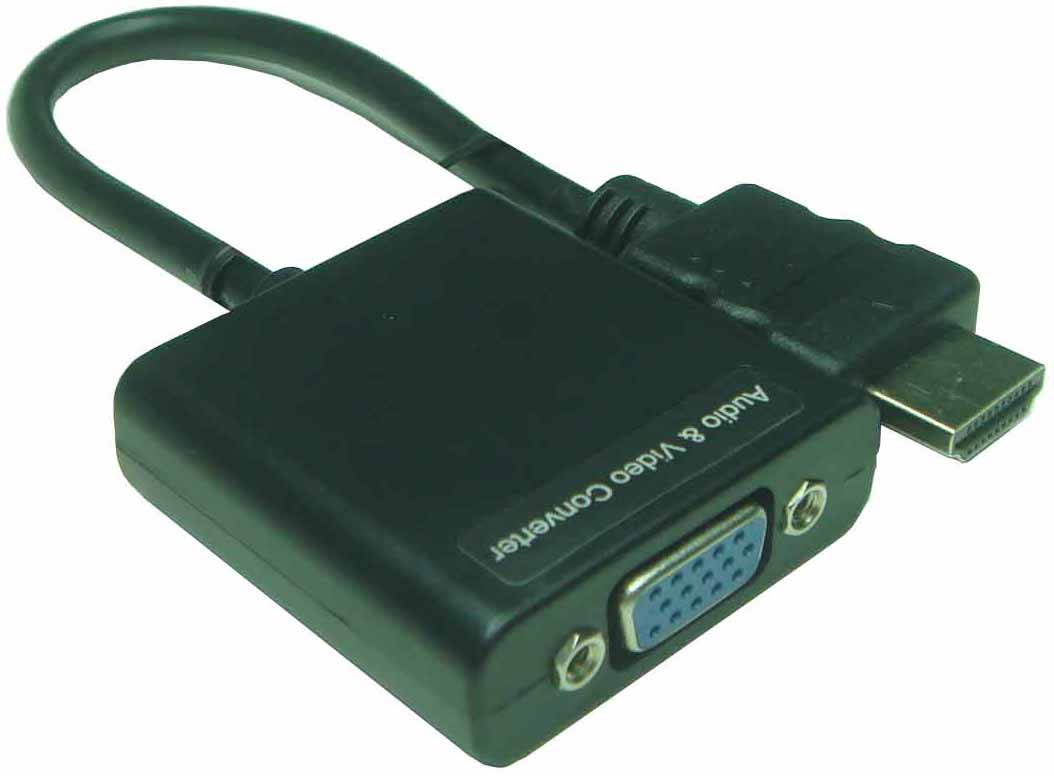

H2V-100-A ( HDMI to VGA & Audio Converter  )

Features & Specification

  • The H2V-100-A is a high-performance single-chip HDMI / DVI to VGA converter. Combined with HDMI 1.3 receiver and triple DACs & Audio DAC , the H2V-100-A supports HDMI /DVI input and VGA output by conversion function With Audio out put. The build-in HDMI / DVI receiver is fully compliant with HDMI 1.3a specification. With HDMI 1.3a receiver, the H2V-100-A can support resolutions up to Full HD ( 1080P ), WUXGA and UXGA. Also the build-in triple DACs can support up to 10 bit deep colors.
  • The H2V-100-A high performance, cost effective, HDMI to VGA conversion function, and it can help modern NBs like ultrabooks and tablets to be compatible with traditional VGA only projectors, monitors, and TVs.
  • Features1. ( HDMI 1.3 RX ) / Single-link HDMI 1.3 receiver / Compliant with HDMI 1.3a and DVI 1.0 specifications
    Supporting link speeds of up to 2.25Gbps (link clock rate of 225MHz).
    Auto-calibrated input termination impedance provides process-, voltage- and temperature-invariant matching to the input transmission lines.
  • Features2. ( VGA DACs) / Tripe 10-Bit DAC Converters / 200 MSPS Throughput Rate / Complementary Outputs / DAC Output Current Range 2mA to 18.5mA
  • Features3. ( Combined ) Support up to Full HD ( 1080P ) CEA display format / Support up to WUXGA(1920X1200 RB mode) and UXGA(1600x1200) VESA display format / Support HDMI Input deep color depth up to 12bit, and support VGA output deep color depth up to 10bit / Embedded MCU and Flash / RoHS Compliant ( 100% Green available )
  • Complable HDMI port of PC / MAC / PS3 / DVD Player / HD Media Player……...
  • Easy to install , Plug & Play, Powers free
  • With screw hall / easy fasten
  • Connector :  HDMI-M 15CM Cable + BODY + 3.5mm Audio & VGA-F
  • Weight : 45g include cable
  • Dimensions (L*W*H) : 48+150(Cable) * 36 * 21 ( mm )
