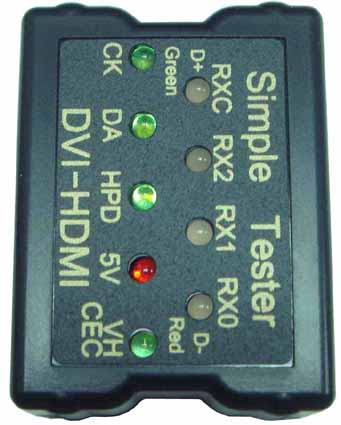

- No Power required HDMI Simple Tester
- Test HDMI Interface
- With extend function - HDMI-F <=>HDMI-F Changer
- With HDMI-F - HDMI-F Connectors
- Support HDMI On line Simple test
- Easy to install , Plug & Play
- With 3 colors LED appeared
- Easy cheek data transfer & receiver
- Compact size
- Support plug & play
- On line test : over 1920*1080P
- Housing : Plastic,
- Weight : 55g
- Dimensions (L*W*H) : 47 * 35 * 24 ( mm )
|
HDMI-F<=>HDMI-F |
Signal |
Text |
LED-Color |
|
Pin 1 <=> Pin 1 |
D2+ |
RX2 |
Green * |
|
Pin 3 <=> Pin 3 |
D2- |
RX2 |
Red * |
|
Pin 4 <=> Pin 4 |
D1+ |
RX1 |
Green * |
|
Pin 6 <=> Pin 6 |
D1- |
RX1 |
Red * |
|
Pin 7 <=> Pin 7 |
D0+ |
RX0 |
Green * |
|
Pin 9 <=> Pin 9 |
D0- |
RX0 |
Red * |
|
Pin 10 <=> Pin10 |
CLK+ |
RXC |
Green * |
|
Pin 12 <=> Pin 12 |
CLK- |
RXC |
Red * |
|
Pin 13 <=> Pin 13 |
CEC |
VH-CEC |
Green |
|
Pin 15 <=> Pin 15 |
DDC-C |
CK |
Green |
|
Pin 16 <=> Pin 16 |
DDC-D |
DA |
Green |
|
Pin 18 <=> Pin 18 |
+5V |
5V |
Red |
|
Pin 19 <=> Pin 19 |
HPD |
HPD |
Green |
|
Pin 14 |
NC |
|
|
|
Pin 2/5/8/11/17 |
GND |
|
|
