HDM-220 ( HDMI 2 Ports Bi-direction Exchange switch )

HDM220 - Features & Specification

• 2 ports HDMI Exchange switch ( 2* Host to 2 * Devices )

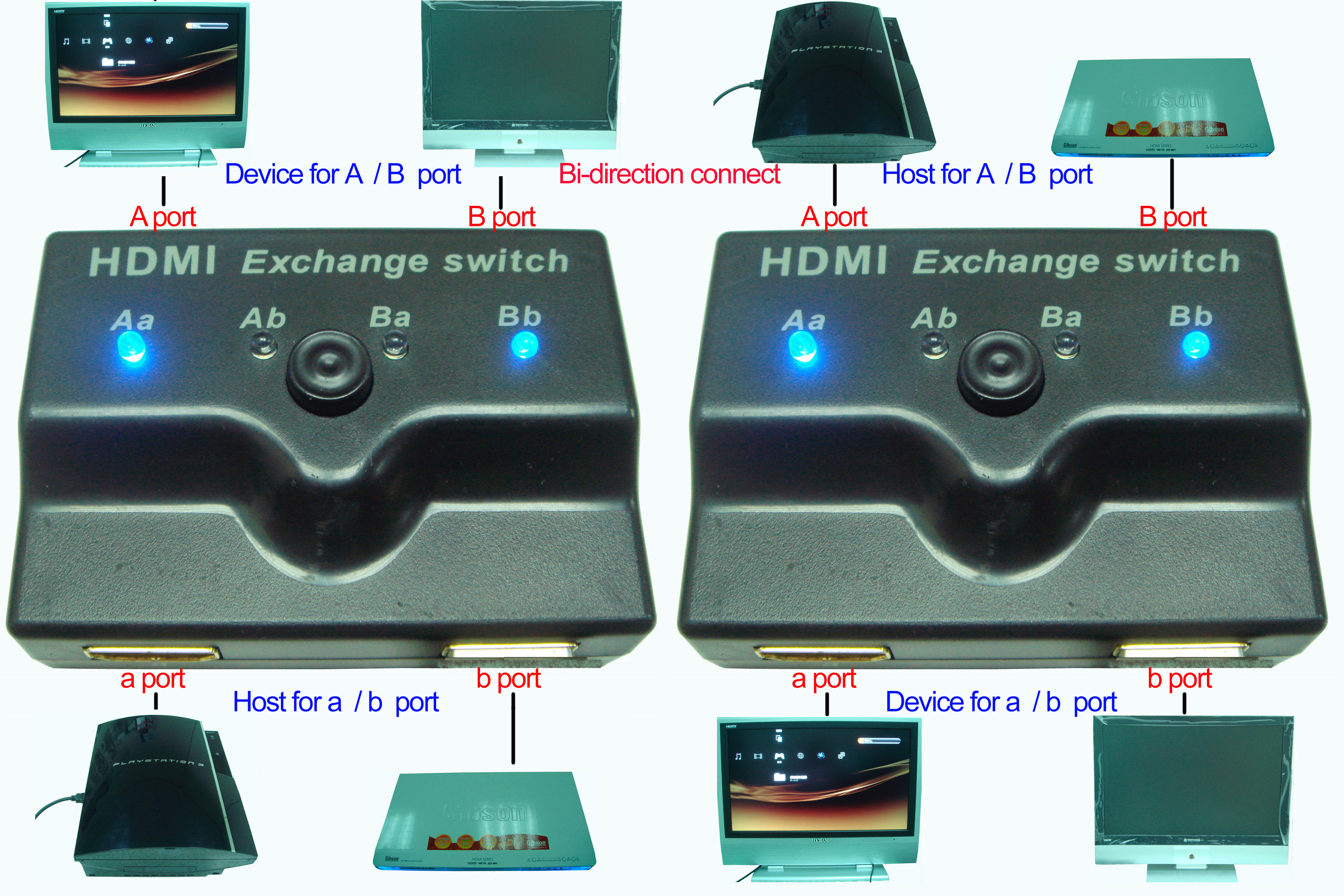

• HDMI Bi-direction switch with HDMI A /B /a / b 4 ports
•          Application :
• 1.  A / B to Host & a / b to Device
• 2.  a / b to Host & A / B to Device
• Power free
• MAX operation current : 40ma
• Full compliance with the HDMI Specification V1.0, V1.1, V1.2, V1.3
• Main control  : Manual electron select
• With 4 LEDs display working port
• 4 HDMI A/F connectors
• LED : 4 (Blue), Display working mode
• Easy install & operation
• Support HDMI Plug & Play
• Support HDMI 1920 * 1080P * 60 (MAX)
• Support MAX cable length : 5m (total)
•  Plug & Play
• Dimensions :72*51*24  mm (L ,W , H)
• Weight : 55 g  Housing : Plastic
