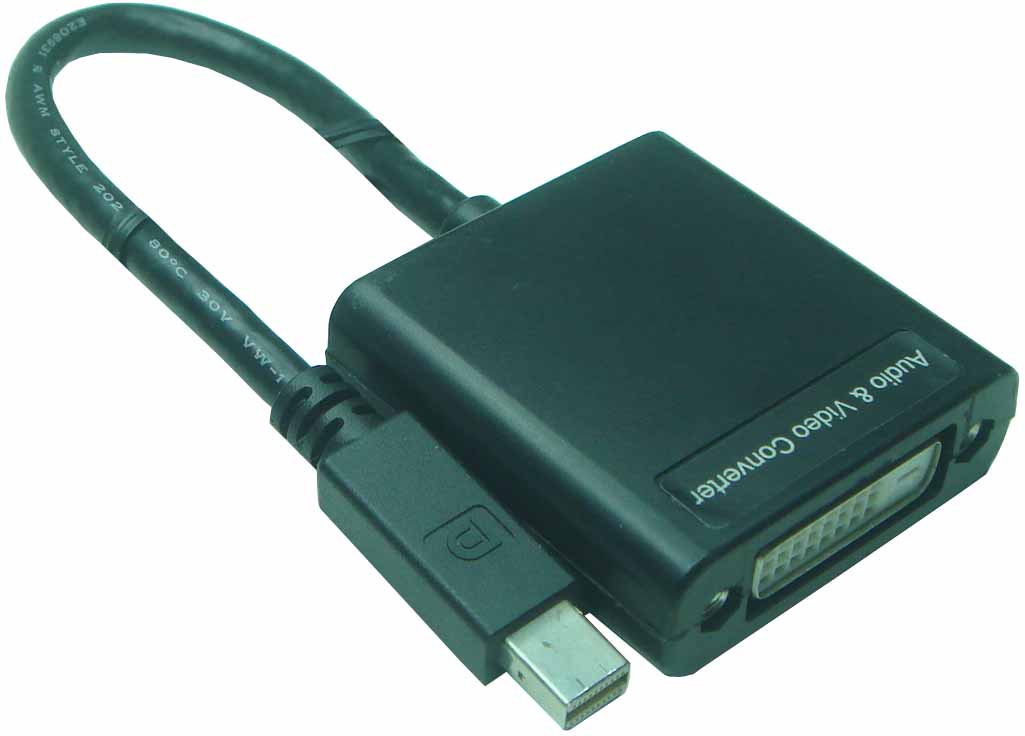

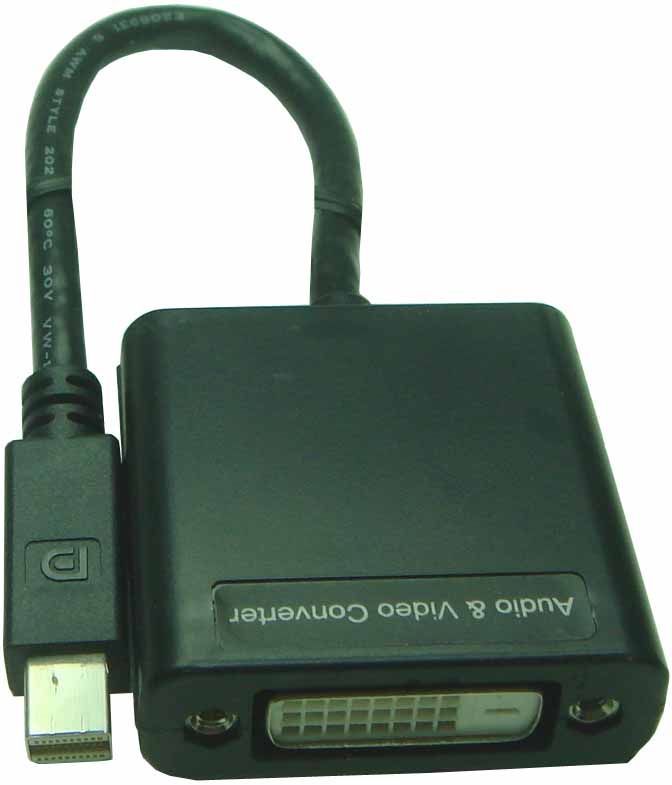

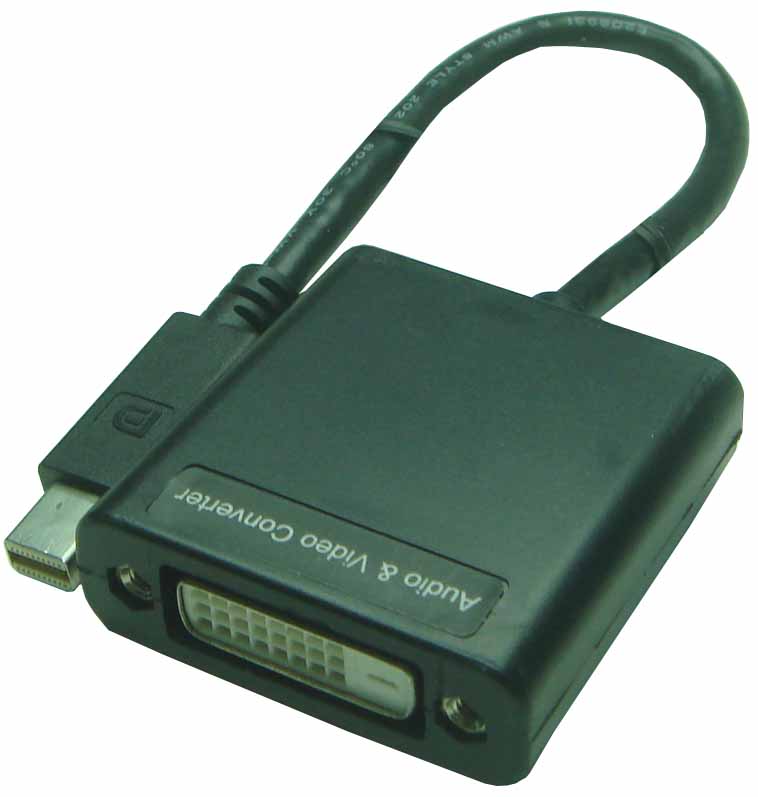

- M2D-100 : MAC MINI DisplayPort (MDP) to DVI Female 15cm cable
- The M2D-100 integrates 1-to-1 MDP & HDMI / DVI Level Shifter.
- Compliant with DisplayPort 1.1
- Integrated 50 Ohm termination resistors for AC coupled differential inputs
- Low Intra-pair and Intra-pair skews
- Support full DisplayPort link training
- Support DVI V1.0 Level Shifting
- Support DisplayPort all 4 levels of output
- Support Dual Mode DP Source Repeater & HDMI/DVI Source Level Shifter
- AC coupled TMDS level shifting operation up to 3.0 Gbit/s per lane (300 Mhz character clock)
- Integrated DDC Level Shifter (3.3 V source side to 5V sink side and vice versa
- DDC Support up 400kHZ clock frequency
- Integrated DDC buffer for M2D100 & M2D100P
- With HPD Level Sifting
- Power supply 3.3V (MDP 3.3V) / Power-saving mode by source-side
- ESD protection up to 3 KV
- Transparent operation : no re-timing or software configuration required
- Complable HDMI port of TV / Monitor
- Easy to install , Plug & Play, Powers free
- M2D-100 Connector : MDP 15CM Cable + PCB BODY + DVI-F
- Weight : 48g include 15CM cable
- Dimensions (L*W*H) : 46 *48 * 15 ( mm )
- M2D-100-P w / Power Jack / Use USB Power cable (5V Power Adapter - Option)
