The
M2V-100
is a high-performance single-chip
MAC-MDP
to VGA converter. ,
The
M2V100
supports
MAC-MDP
input and VGA output by conversion function.
The build-in
MDP
receiver is fully compliant with DisplayPort
specification.
The
M2V-100 can support resolutions up to Full HD ( 1080P ), WUXGA and
UXGA.
Support up to 10
bit deep colors.
-
The
M2V-100 high performance, cost effective,
MDP
to
VGA conversion
function,
compatible with traditional VGA only projectors, monitors, and TVs.
-
Supporting link speeds of up to 2.25Gbps (link clock rate of 225MHz).
Auto-calibrated input termination impedance provides process-,
voltage- and temperature-invariant matching to the input transmission
lines.
- Support
200 MSPS Throughput Rate / Complementary Outputs
-
Support up to Full HD ( 1080P ) CEA display
format / Support up to WUXGA(1920X1200 RB mode) and UXGA(1600x1200)
VESA display format / Support DVI Input deep color depth up to 12bit,
and support VGA output deep color depth up to 10bit / Embedded MCU and
Flash / RoHS Compliant ( 100% Green available )
-
Easy to install , Plug & Play, Powers free
-
With
VGA
screw hall / easy fasten
-
Dimensions (L*W*H)
- M2V-100
: 46
*
48
*15
( mm ) +15cm Cable
Weight
: 38g
include cable
-

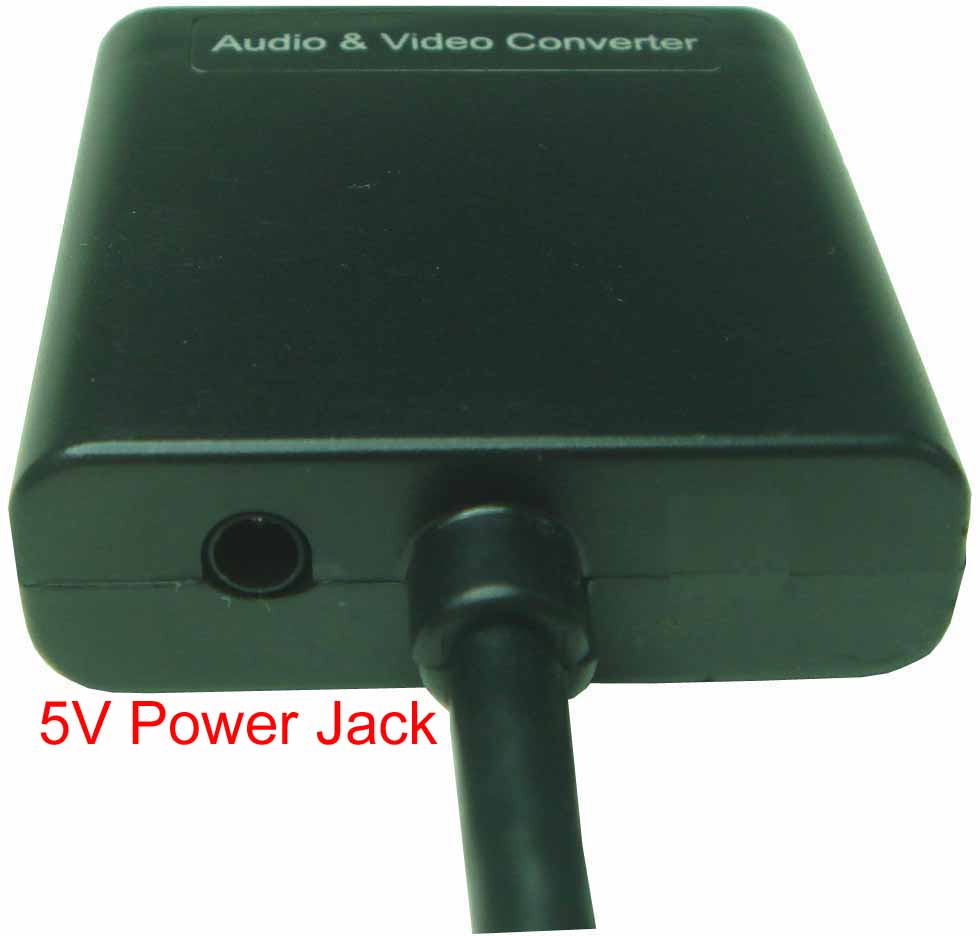

M2V-100-P w / Power Jack / Use USB Power
cable (5V Power Adapter - Option)
|
