SVG-880  8 * 8  Ports Matrix VGA-Audio Switch
Features Specification

1. 8 PC TO 8  VGA Monitors &  Audio matrix switch

2. In /Out put : HD15/F 16 , 3.5 Audio plug * 16

3. Working current :  5V / 1A

4. LED indicate : PC On line & selected

5. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 ) ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

6. With stereo audio Switch / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ

7. Audio out put : 0.5V~1.0V

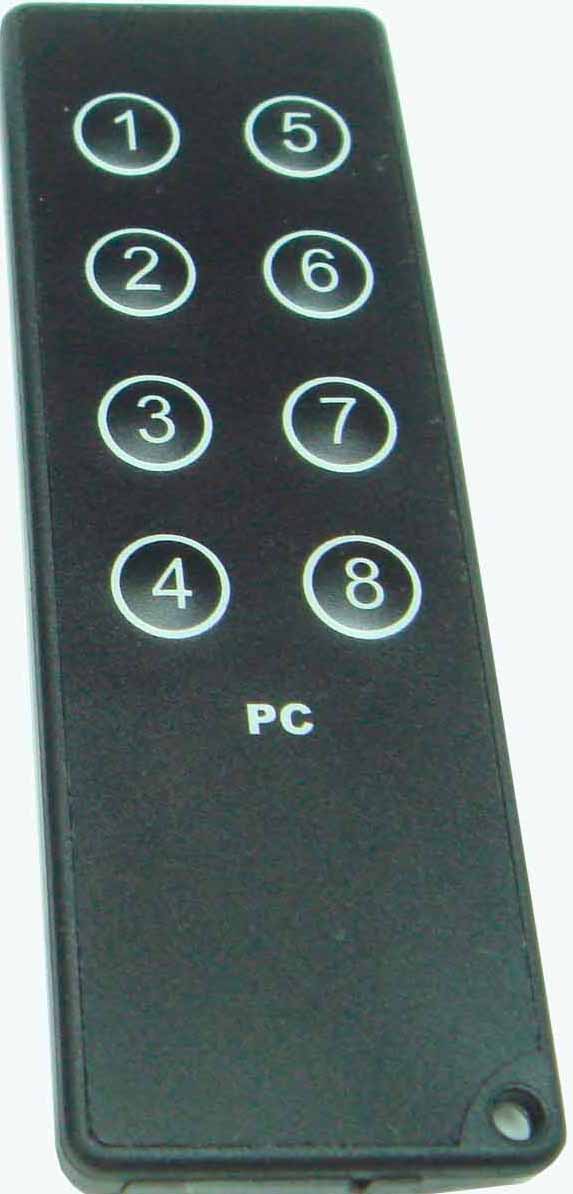

8. IR Remote control

Pin Assignment :

PIN 1 => Red

PIN 2 => Green

PIN 3 => Blue

PIN13 => HSYNC

PIN 14 => VSYNC

PIN 11/12/ 15 => DDC PIN

Note:  DDC Function

Only support : PC 1 - Monitor1; PC 2 - Monitor2 ~~ PC 7 -Monitor 7; PC 8 -Monitor8

PIN 5,6,7,8,10 =>GND

 Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

Dimension :  440 * 157 * 45 mm     Weight : 2.3Kg

Power supply : DC 5V
