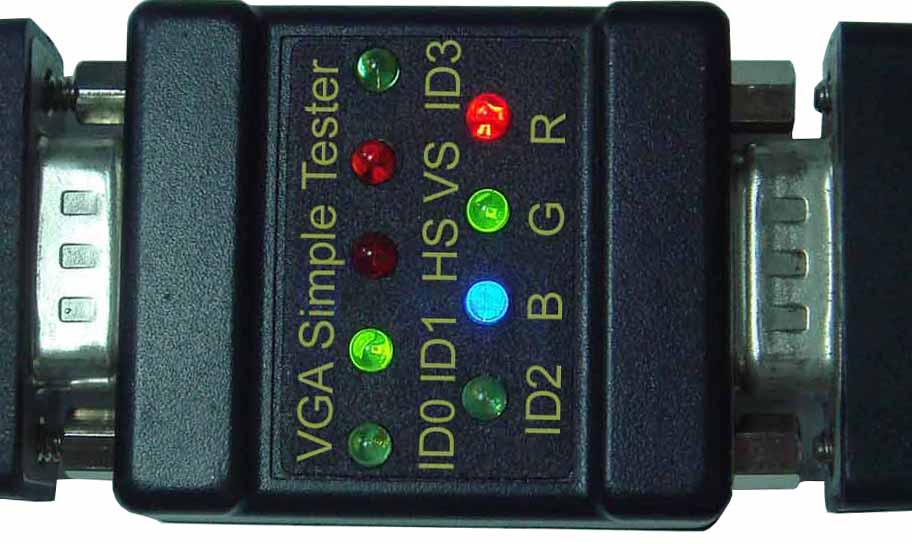

VGA-20T ( VGA Link Tester ) |
|
 |
| Features & Specification |
VGA/HD-15 Pin assignment |
- No Power required
- Standard VGA
Interface
- With extend function - HD-15-F<=>HD-15-F
Changer
-
With HD-15-F & HD-15-F Connectors
-
Support On line Simple test
- Easy to install , Plug & Play
- Indicate R/G/B/ID0~ID3/HS/VS Signals
Test
- Can check DDC
Signal
-
Fully compliant with VGA Spec.
-
With 3 colors LED appeared
-
Easy cheek data transfer & receiver
-
Compact size
-
Support plug & play
-
Support : over 1920*1080
-
Housing : Plastic,
-
Weight : 55g
-
Dimensions (L*W*H) : 45 * 35 * 21 ( mm )
body
|
Pin
Assignment :
|
|
HD15-F<=>HD15-F |
Signal |
Text |
LED-Color |
Test |
|
1<=>1 |
Red |
R |
Red |
75R-Termanate |
|
2<=>2 |
Green |
G |
Green |
75R-Termanate |
|
3<=>3 |
Blue |
B |
Blue |
75R-Termanate |
|
4<=>4 |
ID2 |
ID2 |
Green |
Signal |
|
5 |
GND |
|
|
|
|
6 |
GND |
|
|
|
|
7 |
GND |
|
|
|
|
8 |
GND |
|
|
|
|
9 |
NC |
|
|
|
|
10 |
GND |
|
|
|
|
11<=>11 |
ID0 |
ID0 |
Green |
Signal |
|
12<=>12 |
ID1 |
ID1 |
Green |
Signal |
|
13<=>13 |
HSYNC |
HS |
Red |
Signal |
|
14<=>14 |
VSYNC |
VS |
Red |
Signal |
|
15<=>15 |
ID3 |
ID3 |
Green |
Signal |
|
